Operating on workover rigs, mid-depth drilling operations, and offshore drilling packages, the 1,000 HP NOV / National 9-P-100 triplex mud pump demands continuous, dependable reciprocating balance. Crosshead failure due to lubrication oil film rupture, abrasive particulate scoring, or pin bore fretting can lead to severe power frame cracking and costly rig downtime.

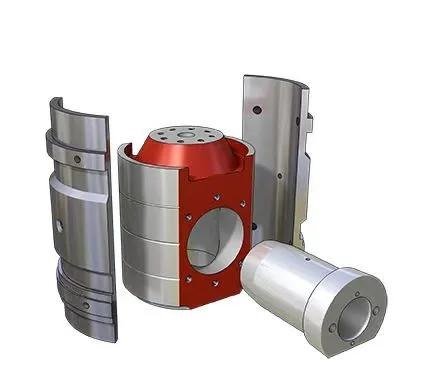

Our high-precision aftermarket crosshead engineered for the NOV / National 9-P-100 Triplex Mud Pump (Part Number: 1291026 / 1291026-001) provides drilling contractors, pump rebuild facilities, and fleet managers with an OEM-interchangeable, drop-in replacement solution backed by rapid worldwide dispatch.
Technical Specifications & OEM Cross-Reference
| Engineering Parameter | OEM Specification | Aftermarket Replacement Standard | Compliance & Tolerance |
|---|---|---|---|
| OEM Cross-Reference P/N | 1291026 / 1291026-001 | PN-1291026-EQ | 100% Direct Interchangeable |
| Applicable Mud Pump | NOV / National 9-P-100 | 9-P-100 Triplex Power End | Direct Drop-in Fit |
| Material Specification | High-Grade Ductile Iron | ASTM A536 Grade 80-55-06 | Hardness: HB 187–255 |
| Pin Bore Diameter Tolerance | Precision Machined | ISO H7 Precision Class | Cylindricity ≤ 0.012 mm |
| Guide Slide Profile | Cylindrical Sliding Face | Ground & Honed to Ra ≤ 0.8 μm | Anti-Friction Smooth Finish |
| Rated Mud Pump SPM | Up to 130 SPM | 130 SPM Continuous Duty | Dynamic Stress Relieved |
| Manufacturing Norms | API 7K Standard | API Spec 7K / ISO 9001:2015 | Full EN 10204 3.1 Traceability |
Manufacturing Standards & Rigorous Quality Control
- High-Nodularity Cast Integrity: Spheroidal graphite cast iron (≥ 90% nodularity) provides exceptional tensile strength, impact absorption, and vibration damping under high-load drilling conditions.
- Precision CNC Machining: Slide contact faces, wrist pin bores, and extension rod threads are processed on precision horizontal machining centers, ensuring perfect collinear alignment.
- 100% NDT Inspection: Full Magnetic Particle Inspection (MPI) and Ultrasonic Testing (UT) on high-stress transitions to eliminate casting fissures and microscopic defects.
Maintenance & Installation Guidelines
- Inspect Guide Tracks: Check internal frame guide tracks for scoring, stepped wear, or thermal galling prior to installation of crosshead P/N 1291026.
- Feeler Gauge Verification: Verify running clearance between crosshead sliding surfaces and upper/lower guides sits within standard OEM tolerances (0.015" – 0.025" / 0.38 mm – 0.64 mm). Adjust guide shims as needed.
- Lubrication Gallery Flushing: Purge internal lube passages with clean, dry compressed air to ensure zero obstruction in oil feed lines to the wrist pin bearings.
Frequently Asked Questions (FAQ)
Q: Can this crosshead be installed in legacy National 9-P-100 mud pumps?
A: Yes. The geometry, bore centerlines, and intermediate rod interface are 100% backward-compatible with legacy National Oilwell and modern NOV 9-P-100 triplex mud pumps.
Q: What material standard is used for this crosshead?
A: We use high-tensile ASTM A536 Grade 80-55-06 ductile iron, delivering enhanced fatigue strength and superior vibration damping compared to conventional carbon steel castings.
Q: How are crossheads packaged for export shipping?
A: Each crosshead is coated in anti-rust protective oil, sealed in heavy-duty moisture-barrier foil with desiccant, and secured in an export-certified ISPM-15 heat-treated wooden case for sea or air freight.
Need Professional Technical Support or Quote?
Contact TSS-TUP engineering sales team today for stock availability, MTC certificates, and rapid global delivery.
