KEMTRON KPT 28 Shale Shaker Screen Replacement – API 40, API 100 and API 120 (Composite & Steel Frame)
Need KEMTRON KPT 28 Replacement Screens (Composite or Steel Frame)?
Get factory-direct pricing, strict API RP 13C compliance, and fast global shipping for your rig fleet.
WhatsApp Quick Quote →KPT 28 Shale Shaker Screen Overview
TOP SHAKER SCREEN supplies replacement shale shaker screens compatible with the KEMTRON KPT 28 Series. The TP-KPT28 product range includes TP-KPT28-A40, TP-KPT28-A100, and TP-KPT28-A120, covering commonly requested API RP 13C screen designations for drilling-fluid solids control.
The KPT 28 replacement screen is designed around the standard KPT-28 screen panel dimensions of approximately 28.25 × 49.25 inches (1250 × 715 mm) and is available with stainless steel screen cloth in both Composite Frames and Steel Frames, depending on your shaker configuration and operating requirements.
For API 100 and API 120 configurations, published KPT 28 replacement-screen technical data provide corresponding D100 separation values, conductance values, and J28K-series cross-reference numbers.
TP-KPT28 Replacement Screen Product Range & Specifications
TOP SHAKER SCREEN currently offers three key KPT 28 replacement screen configurations, fully compatible with KEMTRON KPT 28 and Elgin KPT 28 applications:
| TOP SHAKER Model | API Designation | Mesh / Screen Type | Approx. D100 | Panel Dimensions | Cross Reference |
|---|---|---|---|---|---|
| TP-KPT28-A40 | API 40 | XL / Wave Configuration | 390–462.5 μm | 1250 × 715 mm | KPT-28 API 40 |
| TP-KPT28-A100 | API 100 | XL (1.34 kD/mm) | 140 μm | 1250 × 715 mm | J28KXL120M |
| TP-KPT28-A100 | API 100 | XR (1.60 kD/mm) | 145 μm | 1250 × 715 mm | J28KXR165M |
| TP-KPT28-A120 | API 120 | XL (1.27 kD/mm) | 126 μm | 1250 × 715 mm | J28KXL150M |
Composite Frame vs. Steel Frame Options
To accommodate different rig environments and customer preferences, TOP SHAKER SCREEN provides the TP-KPT28 series in two robust frame variations:

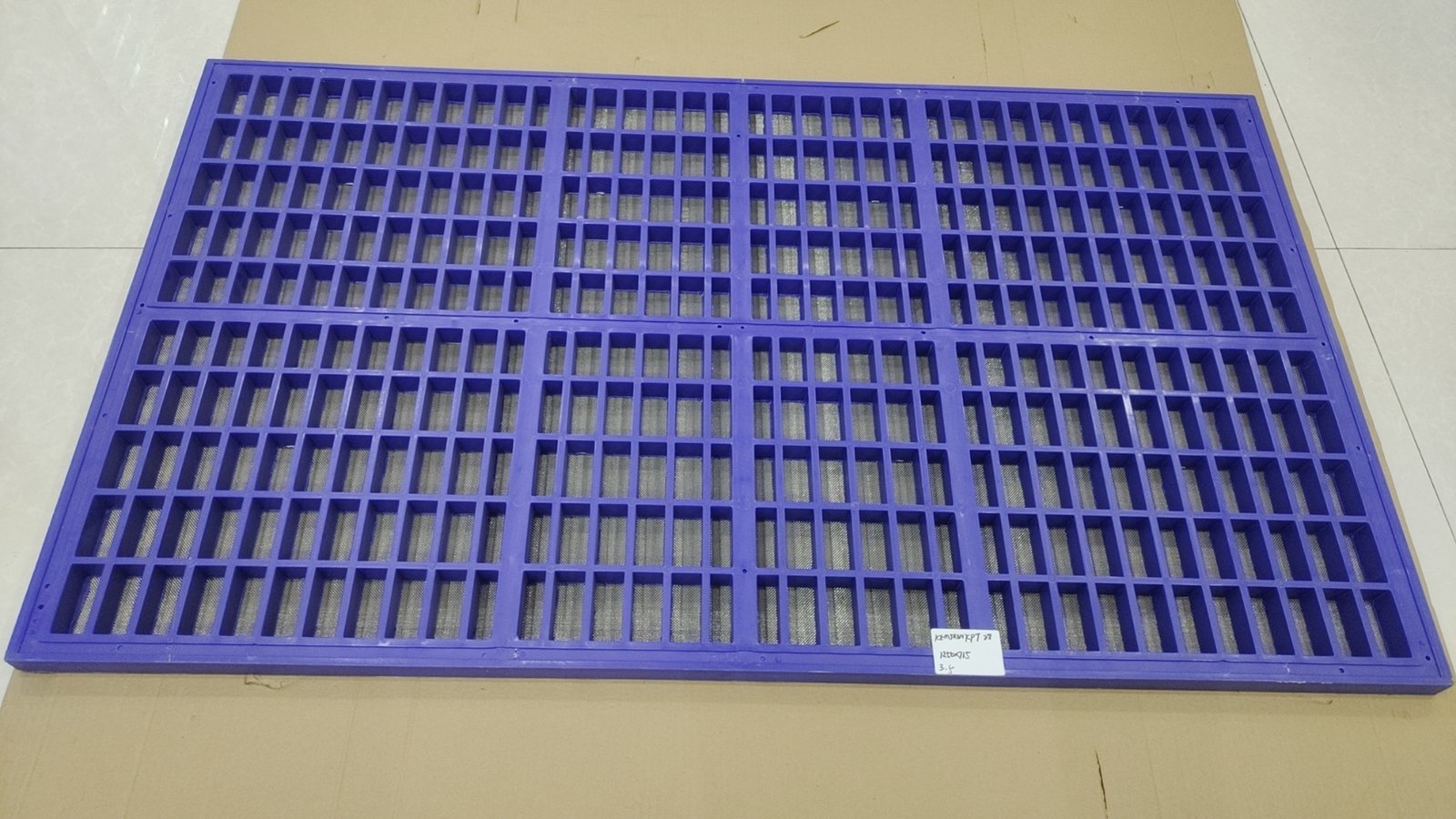

- Composite Frame Replacement Screens: Lightweight, completely corrosion-resistant, and engineered with high-strength polymer structures. Composite frames prevent rust contamination in water-based or synthetic drilling muds and allow for easier handling and field disposal.
- Steel Frame Replacement Screens: Fabricated using heavy-duty carbon steel or stainless steel support structures. Designed for exceptional rigidity and high mechanical load endurance under severe G-force shaking parameters.
Detailed Technical Breakdown of TP-KPT28 Series
TP-KPT28-A40 (API 40 Scalping Screen)
Designed for primary coarse solids removal, API 40 corresponds to a D100 separation range of approximately 390–462.5 μm under API RP 13C classifications. Available in flat and wave screen configurations using multi-layer stainless steel mesh.
TP-KPT28-A100 (API 100 XL & XR)
API 100 is widely used for fine solids separation. We offer two performance variants:
- API 100 XL: D100 at 140 μm with 1.34 kD/mm conductance.
- API 100 XR: D100 at 145 μm with 1.60 kD/mm conductance (higher fluid handling capacity).
TP-KPT28-A120 (API 120 XL)
Providing a finer separation cut point (D100 at 126 μm, conductance 1.27 kD/mm), the API 120 configuration is ideal for drilling operations requiring enhanced fine particle removal before entering downstream equipment.
Dimensions and Stainless Steel Mesh Construction
Correct dimensions are vital for proper screen installation. The KPT 28 replacement screen dimensions are 28.25 × 49.25 inches (approx. 1250 × 715 mm), providing approximately 6.2 ft² of non-blanked screen area.
The filter cloth consists of multiple bonded layers of 304, 316, or 316L stainless steel wire mesh, delivering superior resistance to mechanical wear, high temperatures, and chemical corrosion in oil-based mud (OBM) or water-based mud (WBM).
Frequently Asked Questions (FAQ)
A: Yes, TOP SHAKER SCREEN supplies the TP-KPT28 series in both durable composite frames and heavy-duty steel frames to suit your operating conditions.
A: The standard panel size is 1250 × 715 mm (approx. 49.25 × 28.25 inches) with 6.2 ft² of usable screening area.
A: XL offers 140 μm D100 (1.34 kD/mm conductance), while XR offers 145 μm D100 with a higher conductance of 1.60 kD/mm for increased fluid throughput.
Need KEMTRON KPT 28 Replacement Shaker Screens?
Contact TOP SHAKER SCREEN engineering sales team today for composite or steel frame availability, API designations, and competitive quotations.
TOP SHAKER SCREEN manufactures independent high-performance aftermarket shaker screens. KEMTRON, KPT 28, and Elgin are referenced solely for equipment compatibility and cross-reference purposes. TOP SHAKER SCREEN is not affiliated with or endorsed by the original equipment manufacturer.
