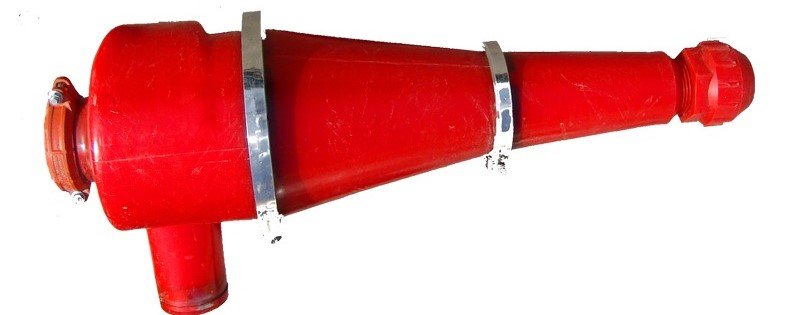

10-Inch Desander Cone (Replacement for P/N 50-01-010)
Heavy-Duty Cast Polyurethane (CPU) Shore 92A Hydrocyclone Replacement for Standard 10" Desander Systems | API 13C Compliant
Disclaimer: All product part numbers (e.g., P/N 50-01-010, 5001010), equipment models, and descriptions are used solely for cross-reference, identification, and mechanical compatibility purposes. Our products are independent, high-grade aftermarket replacement components conforming to API Spec 13C standards and are manufactured independently.
Premium Replacement 10" Desander Cone (Cross-Reference P/N 50-01-010)
High-capacity solids control combinations and mud cleaners require consistent particle classification. In deep drilling and high-SPM conditions, solid-phase sand concentrations can cause severe wall thinning and helical grooving inside desander cones. Once internal geometry distorts, classification efficiency drops, allowing sand into the mud pits and accelerating wear on mud pump fluid ends.
Our aftermarket 10-inch cast polyurethane desander hydrocyclone, engineered to cross-reference Standard Desanding Systems (Part Number: 50-01-010 / P/N 5001010), features a reinforced high-density polyurethane lining that resists internal channeling and extends operational service life. Explore our comprehensive line of oilfield desander equipment and replacement cyclones.
Technical Specifications & Cross-Reference
| Engineering Parameter | Industry Standard Specification | Aftermarket Replacement Standard | Compliance & Tolerance |
|---|---|---|---|
| Cross-Reference P/N | 50-01-010 / 5001010 | PN-50-01-010-EQ | 100% Interchangeable |
| Applicable Mud Cleaner | Standard 10" Desander Systems | 10" Desander Assemblies | Direct Replacement |
| Nominal Cone Diameter | 10 Inch (254 mm) | 10 Inch (254 mm) | Precision Molded |
| Base Polymer Grade | Polyurethane Elastomer | Premium Cast Polyurethane (CPU) Shore 92A | High Abrasion Resistance |
| Recommended Feed Pressure | 35 – 45 PSI (0.24 – 0.31 MPa) | 35 – 50 PSI Dynamic Range | Standard Centrifugal Feed |
| Processing Capacity | 500 GPM (114 m³/h) | 500 GPM | API 13C Classification |
| Feed Inlet Configuration | Tangential Rectangular/Grooved | Precision Tangential Entry | Smooth Inflow Geometry |
| Discharge Apex Interface | Flanged / Insert Retention | Universal Flanged Apex Adapter | Leak-Proof Seat |
Manufacturing Standards & Quality Control
- Reinforced High-Stress Zones: Engineered with thickened polymer walls along the lower cone section where abrasive sliding velocities reach maximum values.
- Thermal Post-Curing Cycle: Cones undergo a 16-hour thermal curing process at controlled temperatures to cross-link polymer chains, maximizing tensile and tear strength.
- Rigid Quality Testing: 100% dimensional verification of inlet throat geometry and overflow vortex finder clearance against industry engineering standards.
Maintenance & Refurbishment Installation Guidelines
- Manifold Header Flush: Before installing new replacement cones, flush the feed and overflow manifolds to remove residual scale and dried solids.
- Pressure Gauge Calibration: Verify that the feed manifold pressure gauge is operating properly; running below 30 PSI causes severe solid-phase carryover into the overflow stream.
- Secure Apex Fastening: When installing flanged apex tips, tighten retaining bolts in a crisscross pattern to prevent localized flange distortion.
Frequently Asked Questions (FAQ)
Q: Will this cone mount directly onto standard mud cleaner frames?
A: Yes. The feed inlet port, top overflow elbow, and mounting bracket geometry match standard industry 10" desander specifications cross-referencing Part Number 50-01-010.
Q: What is the typical operating life under high-sand drilling conditions?
A: Under standard drilling conditions with feed sand contents of 2–5%, our Shore 92A polyurethane cones provide 3,000 to 5,000 operating hours.
Q: How are replacement cones packaged for long-distance international shipment?
A: Units are bubble-wrapped, nested with protective foam caps over Victaulic grooves, and packed inside heavy-duty, export-grade ISPM-15 compliant wooden crates.
Need 10-Inch Desander Cones (P/N 50-01-010) or Bulk Replacement Spares?
Contact TSS-TUP engineering sales team today for technical consultation, material compliance certificates, and fast global dispatch.
