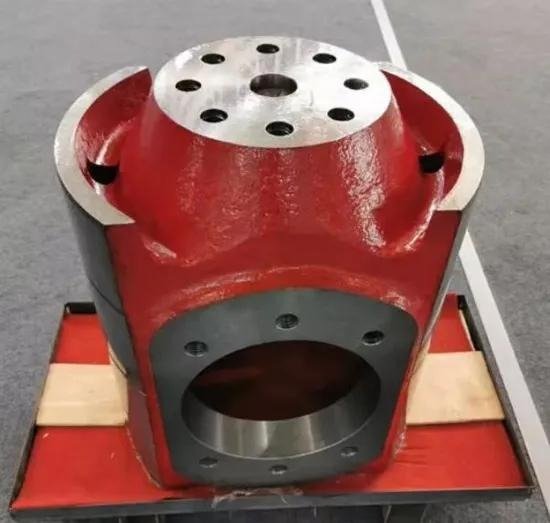

Precision Engineered Crosshead for NOV / National 9-P-100 Mud Pump (P/N 1291026)
Operating on workover rigs, mid-depth drilling setups, and offshore support packages, the 1,000 HP 9-P-100 mud pump demands continuous reciprocating balance. Crosshead failure due to oil film rupture, particulate abrasion, or pin bore fretting can crack the main power frame casting.
Our high-precision aftermarket crosshead engineered for the NOV / National 9-P-100 Triplex Mud Pump (Part Number: 1291026 / 1291026-001) offers rebuild facilities and drilling fleet managers an OEM-interchangeable solution with rapid dispatch availability.
Technical Specifications & OEM Cross-Reference
| Engineering Parameter | OEM Specification | Aftermarket Replacement Standard | Compliance & Tolerance |
|---|---|---|---|
| OEM Cross-Reference P/N | 1291026 / 1291026-001 | PN-1291026-EQ | 100% Interchangeable |
| Applicable Mud Pump | NOV / National 9-P-100 | 9-P-100 Triplex Power End | Direct Drop-in Fit |
| Material Specification | High-Grade Ductile Iron | ASTM A536 Grade 80-55-06 | Brinell Hardness: HB 187–255 |
| Pin Bore Diameter Tolerance | Precision Machined | ISO H7 Precision | Cylindricity: Optimized |
| Guide Slide Profile | Cylindrical Sliding Face | Ground to Spec | Anti-Friction Honed |
| Rated Mud Pump SPM | Up to 130 SPM | 130 SPM Continuous Duty | Dynamic Stress Relieved |
| Manufacturing Norms | API 7K Standard | API Spec 7K / ISO 9001:2015 | Full MTC 3.1 Traceability |
Manufacturing Standards & Rigorous Quality Control
Our manufacturing processes ensure consistent operational performance:
- Cast Integrity Control: High-nodularity spheroidal graphite iron casting delivers tensile strength alongside superior impact resistance and vibration damping.
- Precision Tooling & Fixturing: All crosshead slide radii and intermediate rod connection threads are cut on precision horizontal machining centers, guaranteeing straight-line thrust alignment.
- NDT Verification: 100% Magnetic Particle Inspection (MPI) across high-stress transition fillets ensures zero casting fissures or surface flaws.
Maintenance & Refurbishment Installation Guidelines
When overhauling an NOV 9-P-100 crosshead assembly:
- Check Guide Track Concentricity: Inspect crosshead guide tracks inside the frame for scoring or stepped wear before installing the crosshead (P/N 1291026).
- Feeler Gauge Inspection: Ensure running clearance between the crosshead and guide rail sits within specified limits. Adjust shims under guide retainers as necessary.
- Oil Passage Verification: Blow clean dry air through the internal lubrication galleries to ensure unobstructed lube oil delivery to the wrist pin needle bearings.
Frequently Asked Questions (FAQ)
Q: Can this crosshead be installed in legacy National 9-P-100 pumps?
A: Yes. The geometric design, bore location, and crosshead pin centers match both vintage National and modern NOV 9-P-100 models.
Q: What material grades are used in this replacement crosshead?
A: We utilize ASTM A536 Grade 80-55-06 high-tensile ductile iron, providing superior dampening and wear resistance over standard carbon steel castings.
Q: How are these components packed for overseas sea or air freight?
A: Each crosshead is coated in rust-preventative wax oil, sealed inside vacuum barrier foil with desiccant, and bolted inside heavy-duty, export-certified ISPM-15 compliant wooden cases.
Need Professional Technical Support or Quote?
Contact TSS-TUP engineering sales team today for stock availability, MTC certificates, and rapid global delivery.
