Heavy-Duty Rotary Carriage Wear Pad Replacement for Bauer P/N 259834: Maximize Overhaul Margins
Cost-Effective Bulk Aftermarket Polyurethane Guide Wear Pads for Bauer BG Series Rotary Carriage Remanufacturing & Fleet Overhauls | 40% Savings
Disclaimer: All manufacturer names, symbols, part numbers (including Bauer, BG 20H, BG 28H, BG 36, P/N 259834, and PN 259834), and descriptions are referenced solely for cross-reference, technical identification, and compatibility purposes. Our products are independent, high-grade aftermarket replacement components.
Maximize Overhaul Margins with Fleet-Grade Wholesale Wear Components
For piling equipment rental providers, foundation machinery overhaul workshops, and used drilling rig traders, rebuilding rotary carriages on Bauer BG-series rigs demands reliable component quality and disciplined cost control. Purchasing OEM red polyurethane wear pads (OEM Part Number: 259834 / P/N 259834 / MPN 259834) in small lots incurs high distributor markups and unpredictable shipping lead times that delay customer deliveries.

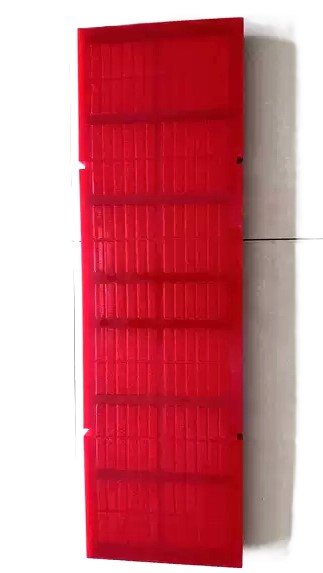

Our aftermarket Heavy-Duty Polyurethane Guide Wear Pad (Cross-Reference P/N: 259834 / PN 259834-EQ) provides workshop managers with field-proven tear resistance, exact dimensional matching, and 35–45% direct parts cost savings, maximizing profitability on every rotary drive refurbishment. Explore our complete range of foundation drilling rig overhaul and replacement parts.
Technical Specifications & OEM Cross-Reference
| Engineering Parameter | OEM Specification | Aftermarket Replacement Standard | Compliance & Tolerance |
|---|---|---|---|
| OEM Cross-Reference P/N | 259834 / PN 259834 | PN-259834-EQ | 100% Interchangeable |
| Application Interface | Rotary Head Carriage & Mast Guides | Bauer BG 15H to BG 40 Rigs | Direct Drop-in Fit |
| Form Factor & Packaging | Single Units / Pack Sets | Multi-Set Workshop Packs (10/20/50 Pcs) | UV Protective Wrapping |
| Elastomer Grade | Cast Polyurethane Elastomer | Premium CPU Shore 95A Compound | High Rebound Resilience |
| Tensile Tear Strength | ≥ 65 kN/m | ≥ 75 kN/m (ASTM D624 Die C) | Resists Slot Tearing |
| Slurry Chemical Resistance | Bentonite, Polymers, Brines | Complete Chemical Inertness (pH 3–12) | Zero Swell / Softening |
| Abrasion Resistance | ≤ 40 mm³ Loss | ≤ 30 mm³ Loss (DIN ISO 4649) | Extended Service Life |
| Dispatch Availability | 8 – 12 Weeks | In Stock / 24–48h Air Freight Dispatch | Global Express Ready |
Manufacturing Standards & Quality Control
- Dimensional Repeatability: Compression-molded and CNC-notched under strict process controls to ensure consistent thickness and symmetrical notch positioning across high-volume production runs.
- Hydrolysis & Oil Resistance: Formulated to withstand continuous contact with mineral hydraulic oils, heavy greases, and wet clay slurries without softening or delaminating.
- Batch Material Traceability: Every manufacturing batch is tracked with logged curing curves, hardness readings, and DIN abrasion loss tests.
Maintenance & Refurbishment Installation Guidelines
- Full Set Replacement: When overhauling the rotary carriage, replace all guide pads (P/N 259834) as a complete set to ensure balanced contact pressure across both mast rails.
- Grease Pre-Lubrication: Apply a layer of heavy EP-2 grease along the surface grooves to facilitate smooth initial bedding during rig commissioning.
- Wear Indicator Inspection: Monitor the depth of the surface ribs during scheduled maintenance. When the grooves wear flush with the pad body, schedule the next pad changeout.
Frequently Asked Questions (FAQ)
Q: What cost savings can refurbishment facilities achieve using aftermarket pad P/N 259834?
A: Fleet workshops and rebuild centers typically achieve 35% to 45% direct savings compared to OEM dealer invoices, improving overall repair margins.
Q: Does this polyurethane material swell or soften when exposed to hydraulic fluid leaks?
A: No. The dense CPU formulation is chemically resistant to mineral hydraulic oils, gear lubricants, and water-based drilling slurries, preventing dimensional swelling.
Q: How quickly can bulk orders be delivered to minimize workshop delays?
A: We maintain continuous stock of P/N 259834 in our distribution center, enabling express dispatch via DHL/FedEx or air freight within 24 to 48 hours.
Need Bulk Replacement Wear Pads for Bauer Rigs (P/N 259834)?
Contact TSS-TUP wholesale sales team today for bulk carton pricing, multi-set discounts, and express global dispatch.
