Heavy-Duty Double 90° Slurry Elbow for Bauer P/N 209818: Maximize Desanding Plant Rebuild Margins
Commercial Fleet Supply & Overhaul Economics | 35%–45% Direct Factory Savings
Disclaimer: All equipment names, trademarks, and manufacturer part numbers (including Bauer, MAT, BE 170, BE 250, BE 400, P/N 209818, and PN 209818) are referenced solely for technical identification, cross-reference, and equipment compatibility. Our products are independent aftermarket spare parts.
Commercial Fleet Supply & Overhaul Economics
For solids control equipment rental fleets, mud system rebuild workshops, and used drilling machinery traders, pipeline consumables represent a continuous maintenance cost. Purchasing OEM flanged elbows (OEM Part Number: 209818 / P/N 209818 / MPN 209818) through regional distributors introduces substantial retail markups and extended supply chain delays that reduce overhaul profitability.

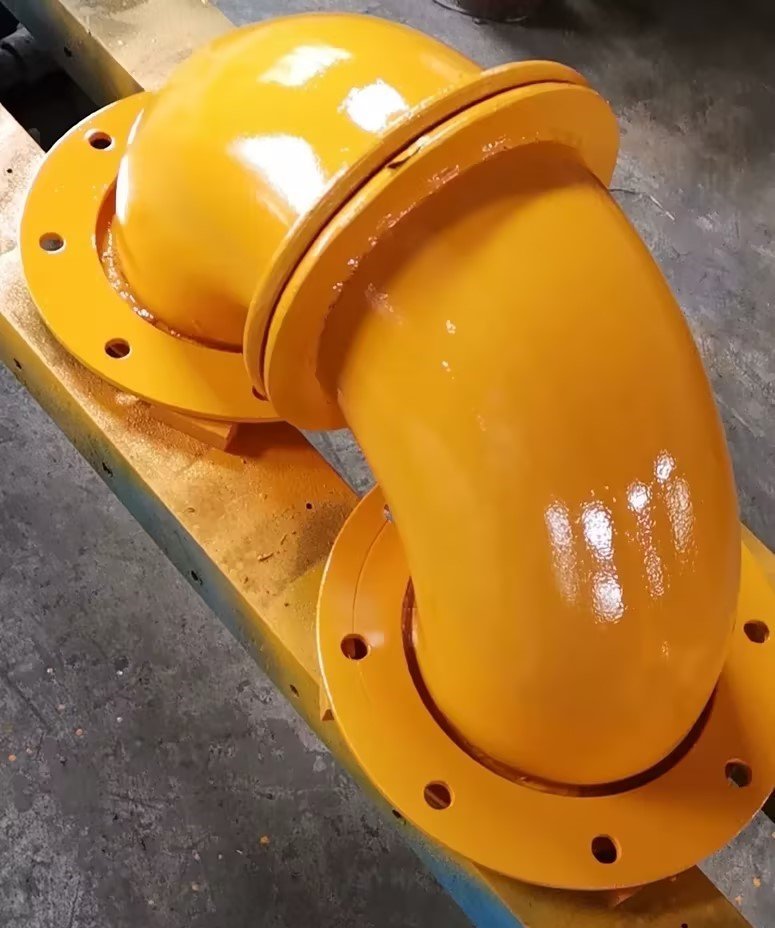

Our aftermarket Heavy-Duty Double 90° Flanged Mud Elbow Assembly (Cross-Reference P/N: 209818 / PN 209818-EQ) provides workshop managers with heavy-wall erosion resistance, verified dimensional alignment, and 35–45% direct procurement cost savings, optimizing margins across every mud plant refurbishment.
Technical Specifications & OEM Cross-Reference
| Commercial & Engineering Metric | OEM Baseline Standard | Aftermarket Equivalent Standard | Economic & Quality Advantage |
|---|---|---|---|
| OEM Cross-Reference P/N | 209818 / PN 209818 | PN-209818-EQ | Exact Drop-In Match |
| Equipment Scope | Bauer MAT Desanding Units | BE 100, BE 170, BE 250, BE 400, BE 500 | 100% Bolt-On Fit |
| Pipe Material Grade | Standard Carbon Steel | Heavy Seamless ASTM A106 Gr.B | Certified High Yield Toughness |
| Extrados Wall Thickness | Standard Production Wall | Heavy 10.0 mm – 12.0 mm Wall | Up to 50% Longer Erosion Life |
| Pressure Shock Tolerance | 1.0 MPa Static | 1.6 MPa Transient / 2.5 MPa Hydro | Resists Water Hammer Spikes |
| Corrosion Protection | Standard Factory Coat | Marine Epoxy Zinc-Rich System (≥ 200 μm) | Resists Saline Mud & Weathering |
| Packaging Specification | Single Unprotected Spares | Heavy Export Crates with Flange Covers | Port & Transit Protected |
| Procurement Cost Reduction | Full OEM List Pricing | 35% – 45% Direct Factory Savings | Substantial Rebuild Savings |
| Dispatch Availability | 10 – 16 Weeks | In Stock / 24–48h Air Freight Dispatch | Rapid Breakdown Prevention |
Manufacturing Standards & Quality Control
- Precision CNC Flange Pitch: Flange bolt centers and offset drop angles are cut on multi-axis CNC machines, eliminating piping misalignment and assembly stress during workshop turnarounds.
- Hydrostatic Pressure Proof Testing: Every fabricated spool undergoes 100% hydro-testing at 2.5 MPa held for 15 minutes, guaranteeing pressure containment before dispatch.
- Industrial Protective Coating: Degreased, blasted to ISO Sa 2.5, and coated with an industrial yellow polyurethane finish, protecting against outdoor storage rust and abrasive slurry overspray.
Maintenance & Refurbishment Installation Guidelines
- Fleet Overhaul Pre-Assembly: Stage dedicated 209818 double elbow spares in workshop overhaul kits alongside matched gaskets and high-strength fastener sets for rapid pump-skid rebuilding.
- No Flame Heating or Forcing: If bolt holes show slight misalignment, rotate mating loose flanges rather than applying mechanical levers or torches to preserve weld geometry.
- Scheduled Wall Thickness Checks: Use ultrasonic gauges during routine equipment turnarounds to inspect the inner and outer bend sweeps, swapping out pipe spools before pitting breaches the pressure boundary.
Frequently Asked Questions
Q: What cost savings can fleet refurbishment centers achieve using aftermarket elbow P/N 209818?
A: Overhaul yards and rental fleets typically realize direct parts savings of 35% to 45% compared to OEM distributor pricing, increasing turnaround project margins.
Q: Can this heavy-wall double elbow resist reverse-circulation cutter suction slurries?
A: Yes. The seamless ASTM A106 Gr.B steel structure with an enlarged extrados wall withstands coarse sand and gravel carried by reverse-circulation cutters (e.g., BC 32 / BC 35) and large-diameter rotary piling rigs.
Q: How quickly can emergency replacement spools reach overseas job sites?
A: We maintain pre-packaged stock of P/N 209818, allowing dispatch via express air couriers (DHL, FedEx, UPS) or air cargo within 24 to 48 hours of order confirmation.
Need Slurry Elbows for Bauer P/N 209818 or Desander Spares?
Contact TSS-TUP engineering sales team today for technical consultation, material compliance certificates, and fast global dispatch.
