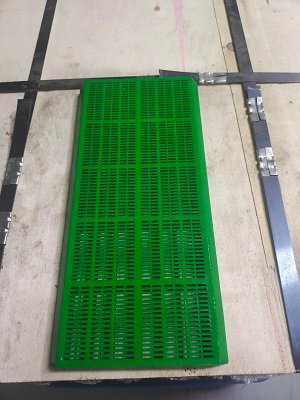

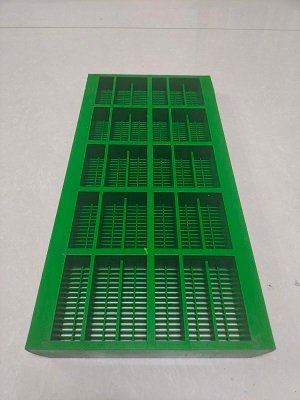

Replacement Scalping Polyurethane Screen Panels for SP600UR Series (SP600UR-A10, SP600UR-A20, SP600UR-A30, SP600UR-A40, SP600UR-A50, SP600UR-A60)

High-Performance Polyurethane Scalping Screen Panels

Precision-Engineered Replacement Panels for 600-Series Dual-Pool Shakers (SP-UR Compatible Format)

Introduction: The Hidden Challenge on the Scalping Deck

In modern high-torque, high-discharge drilling operations, solids control efficiency directly impacts total rate of penetration (ROP) and overall rig operating expenses (OPEX). Within dual-pool shale shaker configurations, the upper deck—commonly known as the scalping deck—serves as the primary line of defense.

Subjected to high-impact solids, large rock cuttings, and continuous high-velocity fluid flow, upper-deck panels face severe abrasive wear. Traditional metallic wire mesh screens on scalping decks often suffer from premature tearing, wire fatigue, and frequent blinding. While high-grade polyurethane (urethane) panels have become the industry standard to solve these wear issues, drilling contractors and regional distributors globally face persistent supply chain bottlenecks, long procurement lead times, and rising consumable expenses.

To maintain continuous operational readiness, the international oilfield sector requires reliable, precision-manufactured aftermarket solutions that deliver high durability and seamless field fitment without relying on single-source suppliers.

Technical Breakdown: Polyurethane Elastomer vs. Conventional Screen Media

Why is elastomer technology critical for upper-deck scalping performance?

• Impact & Wear Resistance: Unlike woven wire cloth, high-performance polyurethane elastomers possess high tear strength and dynamic load resilience. When heavy solids hit the panel surface, the polymer absorbs kinetic energy without permanent deformation, substantially extending panel service life.

• Structural Stability Under High Fluid Flow: Molded high-durometer polyurethane maintains rigid aperture geometry under high mud flow rates and G-forces. This ensures predictable cut-point separation and prevents aperture stretching over extended drilling cycles.

• Protection for Primary Fine-Mesh Deck: By effectively capturing coarse cuttings (1.0 mm to 6.0 mm+ aperture equivalent ranges) on the upper deck, these high-durability scalping panels protect delicate fine-mesh screens on the lower primary deck from mechanical impact, significantly lowering overall consumable costs per drilled foot.

Precision Engineering & Dimensional Compatibility

For aftermarket replacement panels to function reliably under extreme field conditions, precise dimensional control and material engineering are mandatory. Our specialized manufacturing facility focuses on three key technical criteria:

1. 1:1 Geometric Alignment: Engineered specifically for compatibility with 600-series dual-pool screening equipment, each panel features precise rib alignment, tight edge tolerances, and a hardware-free compression-fit geometry. This ensures quick, seamless installation and secure locking during high-G operation.

2. Advanced Elastomer Formulation: Utilizing proprietary polyether and polyester polyurethane compounds, the panels are optimized to resist fluid swelling, synthetic-based muds (SBM), oil-based muds (OBM), water-based muds (WBM), and extreme temperature fluctuations encountered downhole.

3. Optimized Open-Area Ratios: Advanced mold engineering allows for precise aperture configurations (matching standard A10, A20, A30, A40, A50, and A60 aperture designations), achieving an optimal balance between fluid throughput capacity and coarse solids retention.

Specifications & Cross-Reference Table (SP-UR Compatible Series)

ID	Product Model	Cross-Reference Format	Aperture Size / Mesh Range	Primary Field Application	Key Structural Feature
1	PU-600-A10	Fits SP-UR-A10 Specs	Fine (~1.0 mm – 1.2 mm)	Light-to-medium scalping, fine gravel separation	High open-area ratio, precise sizing
2	PU-600-A20	Fits SP-UR-A20 Specs	Medium-Fine (~2.0 mm)	General mud scalping, sticky formation handling	Flexible aperture walls for anti-clogging
3	PU-600-A30	Fits SP-UR-A30 Specs	Medium (~3.0 mm)	Heavy solids loading, LCM recovery / bypass	Superior impact strength & wear resistance
4	PU-600-A40	Fits SP-UR-A40 Specs	Medium-Coarse (~4.0 mm)	High G-force top deck scalping	High-wear polymer blend for abrasive solids
5	PU-600-A50	Fits SP-UR-A50 Specs	Coarse (~5.0 mm)	Fast-drilling top-hole sections, large cuttings	Maximum fluid handling throughput
6	PU-600-A60	Fits SP-UR-A60 Specs	Ultra-Coarse (~6.0 mm+)	Severe solids, heavy aggregate removal	High structural rib reinforcement

Mitigating Supply Chain Risks for Offshore & Onshore Operators

Relying solely on single-source suppliers for replacement wear parts creates operational vulnerabilities. A delayed shipment of scalping screens can lead to unbudgeted rig downtime or forced operation with damaged panels—risking downstream mud system contamination.

By establishing scalable, high-precision manufacturing capacity dedicated to polyurethane replacement screen panels, we provide global drilling contractors, solids control service providers, and regional equipment distributors with:

• Shortened Lead Times: Direct-from-factory production cycles designed to meet urgent overhaul schedules and eliminate logistics lag.

• Cost-Efficient Maintenance: High-grade performance at competitive direct pricing, optimizing OPEX across fleet operations.

• Global Supply Readiness: Standardized export packaging for rapid, secure distribution across North America, the Middle East, Asia-Pacific, and Latin America.

Conclusion: Elevating Field Performance Through Material Precision

Equipment uptime is built on the reliability of every individual component. By combining advanced polymer science with precision molding techniques, our high-durability polyurethane replacement scalping panels offer a dependable, cost-effective, and fully compatible alternative for 600-series dual-pool shaker systems worldwide.

 Technical Inquiries & Compatibility Cross-Reference

Whether you are evaluating panel life for an upcoming drilling program or seeking cross-reference datasheets for SP-UR series (A10 to A60) equivalents, our engineering team is ready to assist.

•  Request a Technical Specification Sheet

• Inquire About Trial Panel Testing Programs

• Explore Regional OEM/Aftermarket Distribution Partnerships

Contact our engineering team today via Direct Message (DM) or leave your inquiry below!

⚠️ Non-OEM & Compatibility Disclaimer

All model designations, dimensional formats, and part numbers (such as 600-series, 616/626, SP-UR-A10 through SP-UR-A60, etc.) referenced herein are used strictly for technical identification, sizing reference, and equipment compatibility purposes. Our replacement screen panels are independently designed and manufactured high-performance aftermarket wear parts and maintain no direct sponsorship, license, or affiliation with any original equipment manufacturers.
