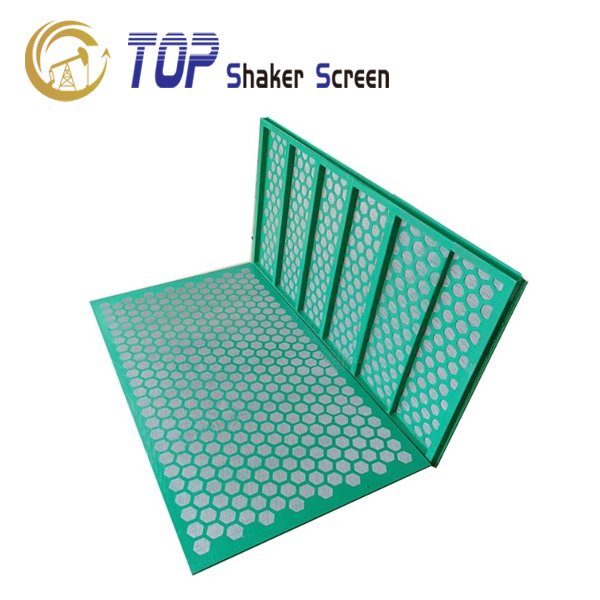

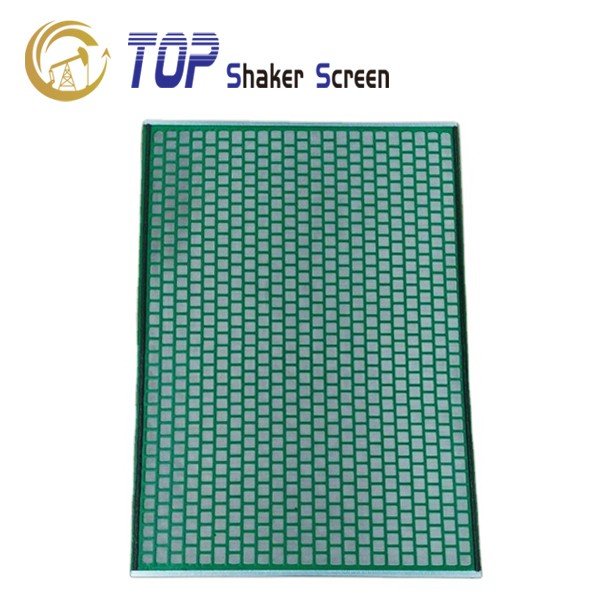

TSS-TUP 1050 × 697 mm Flat-Type Replacement Shaker Screens are engineered to deliver high fluid throughput, extended operating life, and exceptional mud solids separation efficiency. Constructed with multi-layered 304 / 316 stainless steel wire mesh bonded to a high-tensile perforated steel backing plate, these screens ensure rigid structural integrity under extreme high-G vibration loads and demanding drilling conditions.
Backed by 24/7 technical support, our replacement screen series has been consistently exported to over 30 countries worldwide, supporting drilling operations across the Middle East, North America, and Central Asia.
| Item | API RP 13C Designation | Mesh Type | Conductance (kD/mm) | D100 Separation (μm) | Layers | Non-Blank Area (sq.ft) |
|---|---|---|---|---|---|---|
| 1 | API 325 | DF | 0.38 | 44 | 2 / 3 | 4.85 |
| 2 | API 270 | DF | 0.44 | 53 | 2 / 3 | 4.85 |
| 3 | API 230 | DF | 0.71 | 67 | 2 / 3 | 4.85 |
| 4 | API 200 | DX | 0.95 | 78 | 2 / 3 | 4.85 |
| 5 | API 170 | DX | 1.36 | 97 | 2 / 3 | 4.85 |
| 6 | API 140 | DX | 1.92 | 115 | 2 / 3 | 4.85 |
| 7 | API 120 | DX | 1.92 | 120 | 2 / 3 | 4.85 |
| 8 | API 100 | DX | 2.33 | 154 | 2 / 3 | 4.85 |
TSS-TUP technical engineers provide 24/7 technical support, deck compatibility checks, and fast factory-direct quotations for global drilling contractors.
Contact our engineers for exact part numbers or API RP 13C mesh size matching.
