626x710 mm Flat Replacement Shaker Screen (500 Series Compatible)

626x710 mm Flat Replacement Shaker Screen (500 Series Compatible)

Product Item : 3
Category： Shale Shaker Screens
Attachment INQUIRY EMAIL

Product Description:

Engineering Notice: TSS-TUP is an independent manufacturer specializing in high-performance aftermarket shaker screens and drilling solids control solutions.

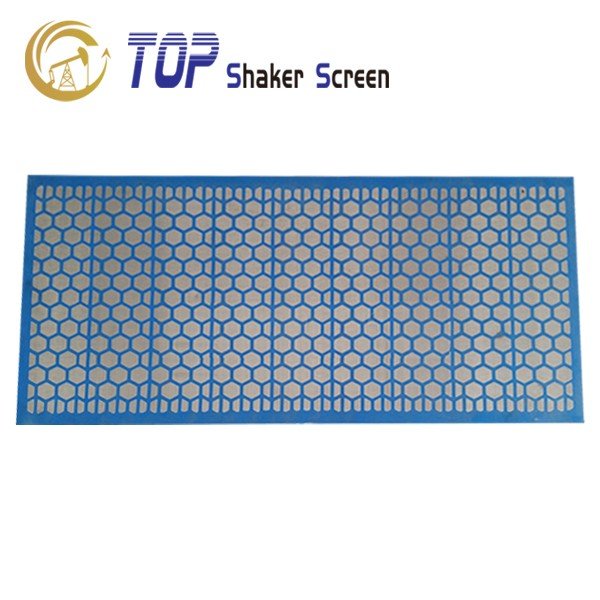

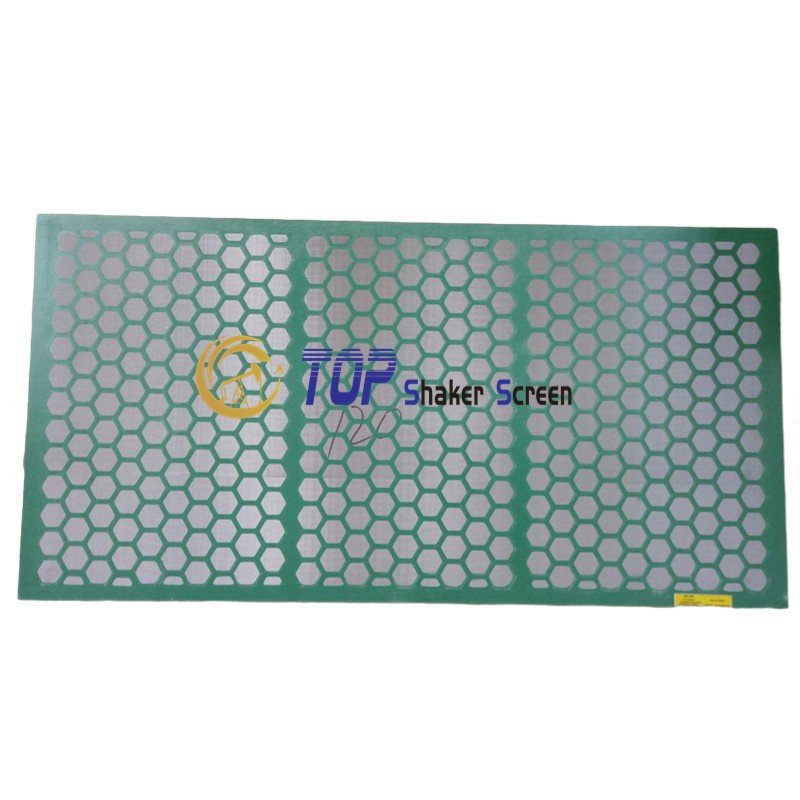

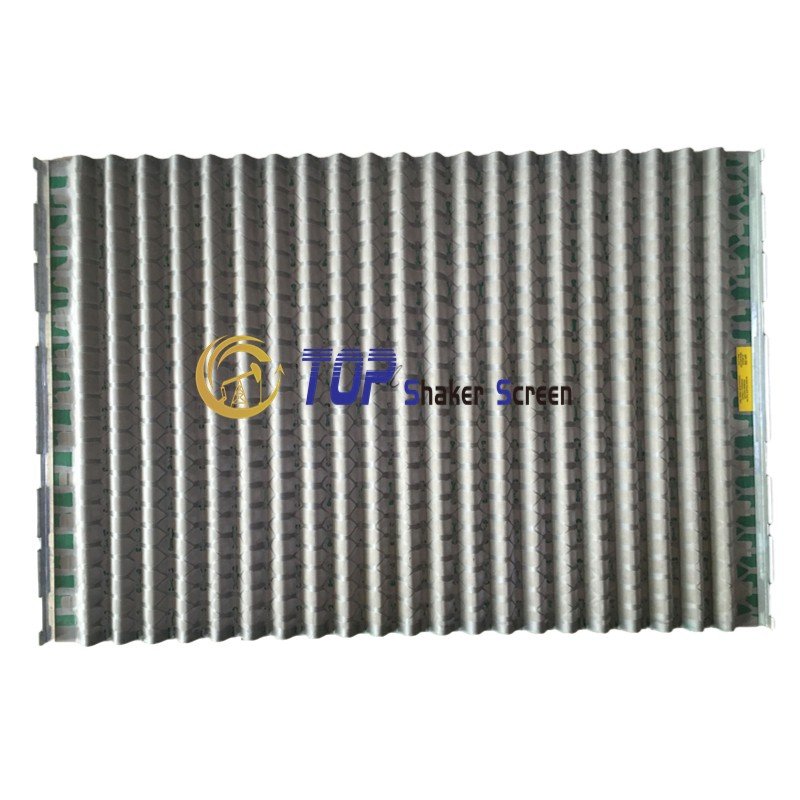

626x710 mm Flat Type 500 Series Replacement Shaker Screen

Product Overview & Operating Integrity

TSS-TUP 626 × 710 mm Flat Replacement Shaker Screens (500 Series Compatible) are engineered to deliver superior fluid throughput, extended working life, and exceptional mud solids separation efficiency. Constructed with multi-layered 304 / 316 / 316L stainless steel wire cloth bonded to a high-tensile perforated steel backing plate, these screens provide rigid resistance against high-G vibration forces.

Engineered with a single-side quick-lock tensioning interface, our replacement screens significantly reduce installation downtime while providing a firm seal against the basket deck to eliminate mud bypass. Widely exported to over 30 countries across the Middle East, North America, and Central Asia.

Technical Parameters & Manufacturing Specifications

Dimensions: 626 × 710 mm

Mesh Material: Stainless Steel 304 / 316 / 316L

Backing Plate: Q235 Perforated Structural Steel

Compliance Standard: API RP 13C (ISO 13501)

Commercial & Packaging Details

Minimum Order Quantity: 10 PCS

Monthly Capacity: 5,000 PCS / Month

Lead Time: 10 – 15 Days

Packaging: 2 PCS/Carton, Plywood Pallet

API RP 13C Designation & Performance Data Table

Item	API RP 13C Designation	Mesh Type	Conductance (kD/mm)	D100 Separation (μm)	Layers	Non-Blank Area (sq.ft)
1	API 325	DF	0.39	44	2 / 3	4.85
2	API 270	DF	0.67	57	2 / 3	4.85
3	API 230	DF	0.71	68	2 / 3	4.85
4	API 200	DX	0.95	78	2 / 3	4.85
5	API 170	DX	1.36	97	2 / 3	4.85
6	API 140	DX	1.92	115	2 / 3	4.85
7	API 120	DX	1.92	120	2 / 3	4.85
8	API 100	DX	2.33	154	2 / 3	4.85
9	API 80	DX	3.09	184	2 / 3	4.85
10	API 70	DX	3.80	221	2 / 3	4.85
11	API 60	DX	4.68	257	2 / 3	4.85
12	API 50	DX	5.50	314	2 / 3	4.85
13	API 45	DX	5.84	360	2 / 3	4.85
14	API 40	DX	8.64	439	2 / 3	4.85
15	API 35	DX	9.69	538	2 / 3	4.85
16	API 20	DF	10.88	809	2 / 3	4.85

Adaptable Equipment & Deck Compatibility

2000-Type 3-Panel Shale Shakers
2000-Type 4-Panel Shale Shakers
48-30 Series High-Flow Shale Shakers
2000-Series Mud Cleaners & Desilter Units
High-G Drying Shakers & AWD Systems

Competitive Advantages & Engineering Value

Premium Multi-Layer Wire Mesh: High-tensile SS304/316/316L cloth delivers exceptional resistance to corrosion, abrasion, and blind blinding.
Accurate API RP 13C Separation: Certified D100 separation performance ensures precise solids control and maximizes mud recycling.
Optimized Effective Screening Area: Precision-perforated backing plate provides 4.85 sq.ft non-blanked area for high volume mud conductance.
Export Standard Packaging: Boxed in heavy-duty cartons (2 pcs/box) and packed on fumigated seaworthy wooden pallets.

Need Custom Mesh Sizing, API Recommendations, or Bulk Pricing?

TSS-TUP technical engineers provide 24/7 technical support, deck compatibility checks, and fast factory-direct quotations for global drilling contractors.

Request a Factory Quote → Email Technical Sales
