TP-shaker screen derrock 500 PMD

Product Item : Derrock Hyperpool PMD
Category：Substitute Shale Shaker Screen for DERROCK
Attachment INQUIRY EMAIL

Product Description:

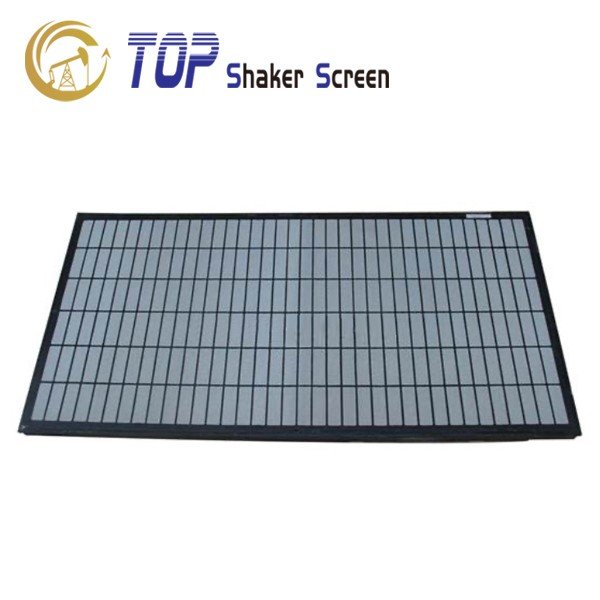

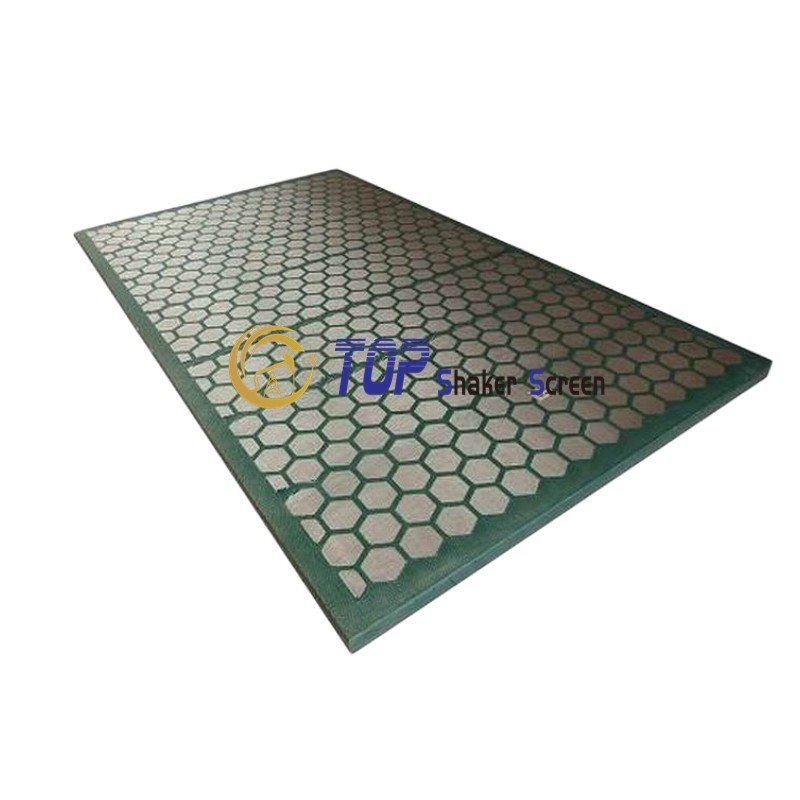

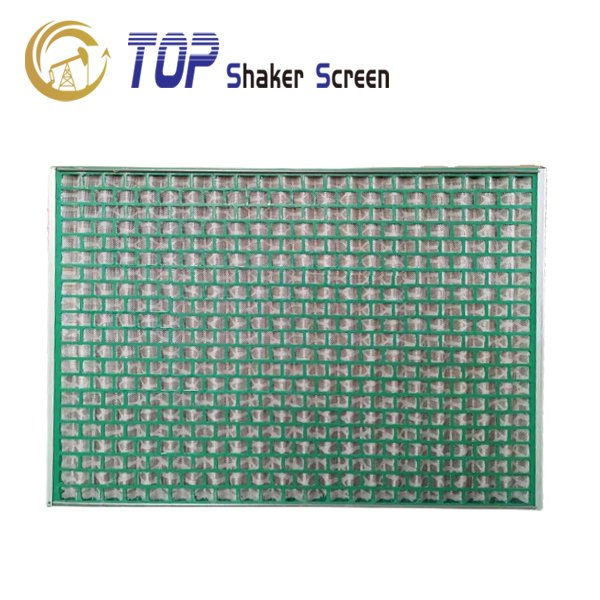

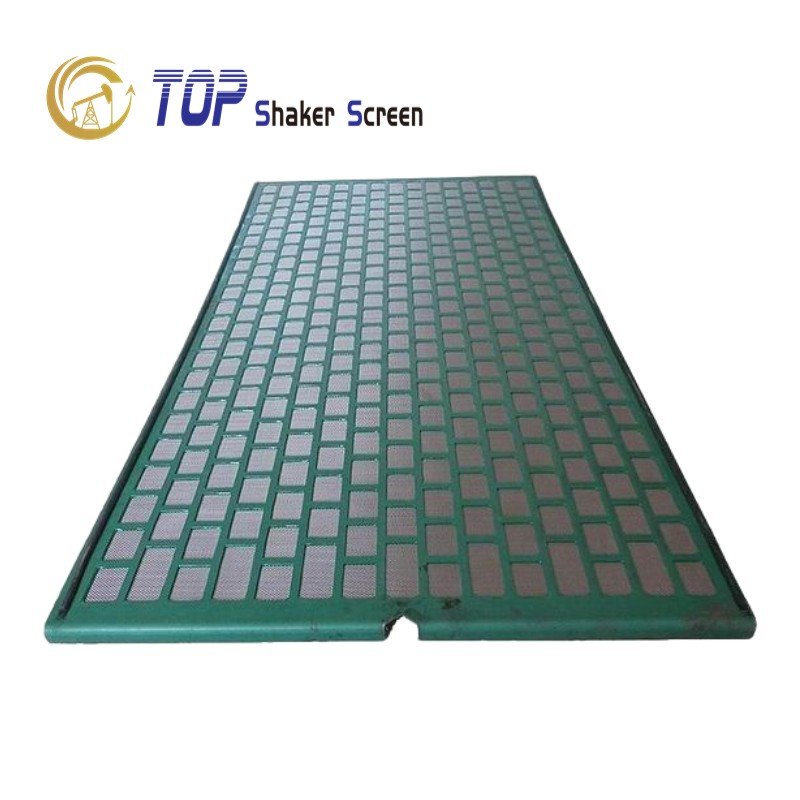

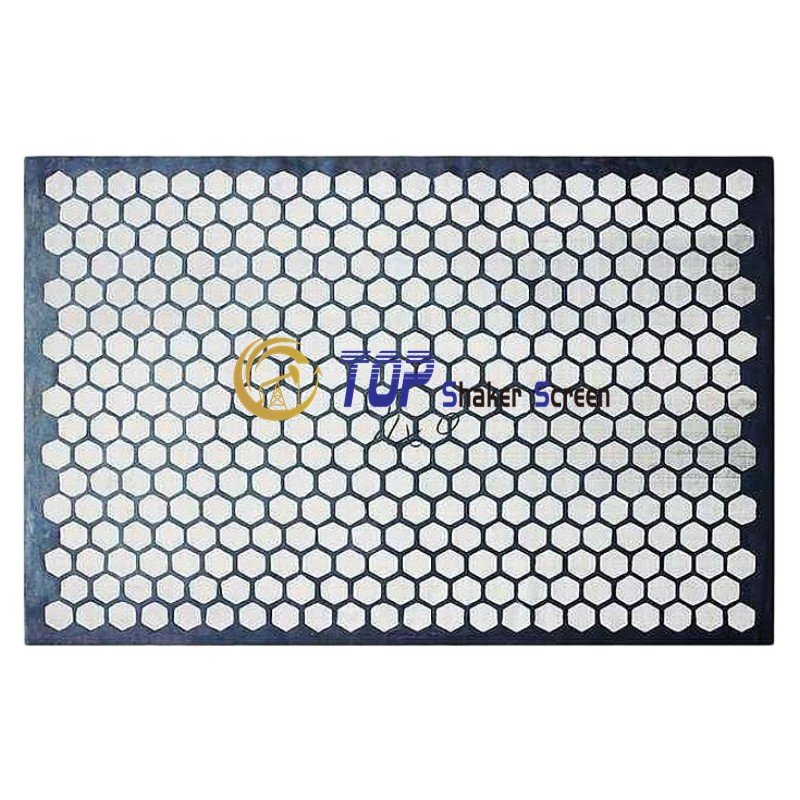

Replacement Flat Screens for Derrock 500 PMD Series Shale Shaker screen

Note: TOP only produces the replacement shaker screen but not original form derrock.

Top Our shaker screen for derrock PMD DP 500 shale Shakers screen offer higher throughput rates reduce operating cost，High performance life bring to our clients cost and production efficiency, we have 24/7 pre-sales and after sales service.Our brands have consistently exported our products to more than 30 countries, including Middle east, U.S.A, Russia etc, Our Clients are quite satisfied with our products and service.

TP-PMD 500 shaker screen with dimension of 626 × 710 mm which is smaller than other screen panels, it is the replacement screen for Derrick Dual pool 600 series shale shakers. There are 6 or 8 panels needed for each DP 600 shaker. Innovative actuated screen compression system drives the center of the screen panel downward and firmly sealing the shaker screen panel to the screen frame. The mud recovery is greatly improved.

derrock PMD DP 600 flat shale shaker screen is designed for the replacement screen of Derrick FLC 500 series shale shakers. It is constructed with two or three layers of 304 or 316 stainless steel wire mesh cloth, and then combined together with a steel backing plate. The FLC 500 PWP screen features a single side quick-lock tension system that reduces panel replacement time.

item	API RP 13C Designation	Mesh Type	conductance number	D100 Separation(μm）	Layer no.	Non-blank area (sq.ft)
1	API 325	DF	0.38	44	2/3	4.85
2	API 270	DF	0.44	53	2/3	4.85
3	API 230	DF	0.71	67	2/3	4.85
4	API 200	DX	0.95	78	2/3	4.85
5	API 170	DX	1.36	97	2/3	4.85
7	API 140	DX	1.92	115	2/3	4.85
8	API 120	DX	1.92	120	2/3	4.85
9	API 100	DX	2.33	154	2/3	4.85
10	API 80	DX	3.09	184	2/3	4.85
11	API 70	DX	3.80	221	2/3	4.85
12	API 60	DX	4.68	257	2/3	4.85
13	API 50	DX	5.50	314	2/3	4.85
14	API 45	DX	5.84	360	2/3	4.85
15	API 40	DX	6.59	453	2/3	4.85
16	API 35	DX	7.06	503	2/3	4.85
17	API 20	DF	0.93	821	2/3	4.85
