Home PRODUCT Solids Control Spare Parts Shale Shaker Screens Replacement Flat Screens for KEMTRON KTL

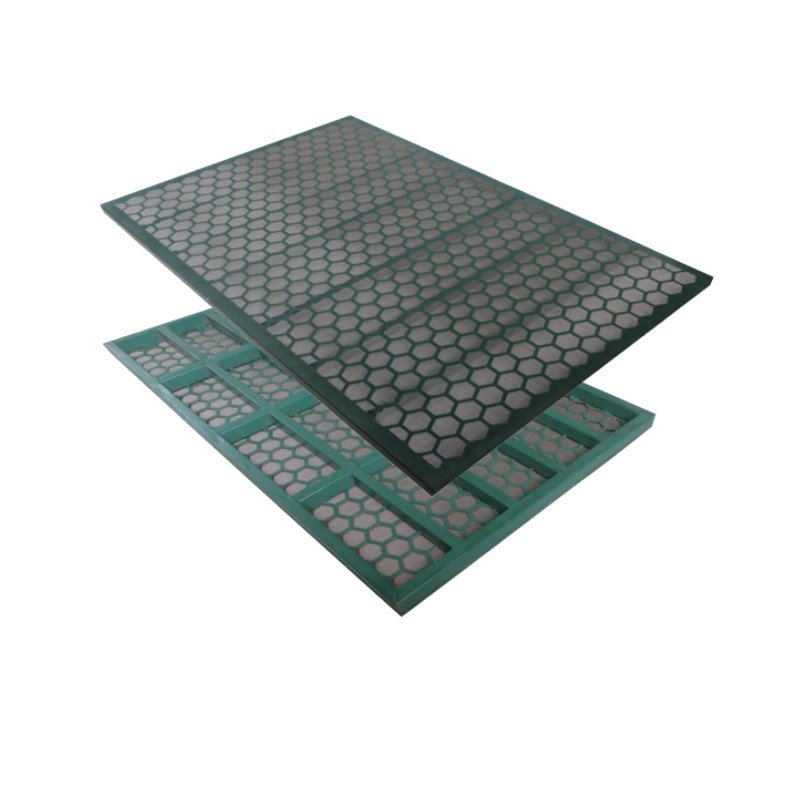

The TP-KPT-48 Replacement Flat Shaker Screen is engineered specifically for KEMTRON KTL 48 Series shale shakers and mud cleaners. Constructed with two or three layers of premium 304 / 316 / 316L stainless steel wire cloth bonded to a high-strength perforated steel backing plate, this screen ensures maximum solids conveyance rate, superior fluid conductance, and optimal discharge dryness.
Precision manufacturing prevents premature near-size blinding and maintains consistent tension under demanding high-G vibration forces. It provides a direct drop-in fit without modifying the OEM basket deck.
| Item | API RP 13C Designation | Conductance (kD/mm) | D100 Separation (μm) | Non-Blanked Area (sq.ft) |
|---|---|---|---|---|
| 1 | API 400 | 0.25 | 36.0 | 5.24 |
| 2 | API 325 | 0.38 | 48.8 | 5.24 |
| 3 | API 270 | 0.39 | 53.8 | 5.24 |
| 4 | API 230 | 0.57 | 68.6 | 5.24 |
A: Repair using silicone sealant is not recommended as it reduces non-blanked screening area and skews API RP 13C cut-point accuracy. Replacement with a new TP-KPT-48 screen is the most efficient way to maintain solids removal integrity.
TSS-TUP technical engineers provide 24/7 technical support, deck compatibility checks, and fast factory-direct quotations for global drilling contractors.
Contact our engineers for exact part numbers or API RP 13C mesh size matching.
Inquire Engineers »
