Engineering Notice: TSS-TUP manufactures high-performance aftermarket replacement shaker screens engineered specifically for full compatibility with Scomi Prima series shale shakers.
Product Overview & Operating Performance

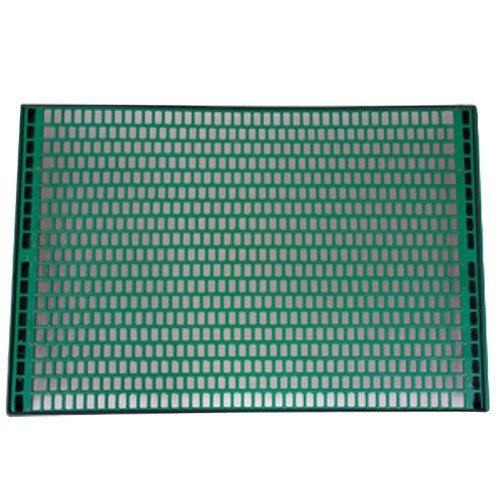

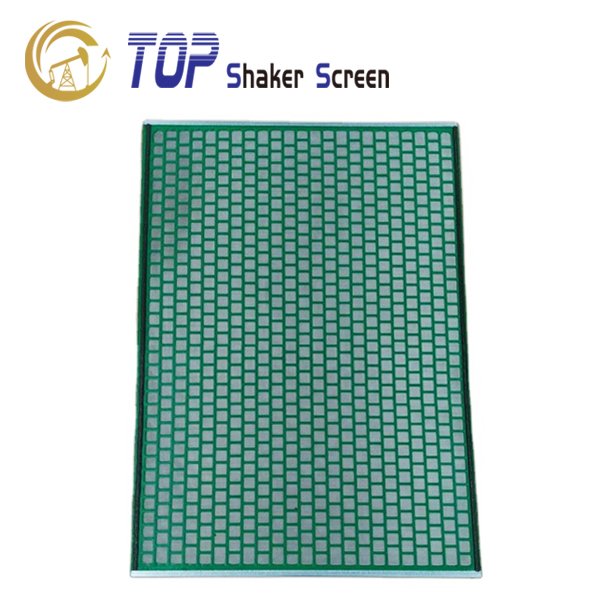

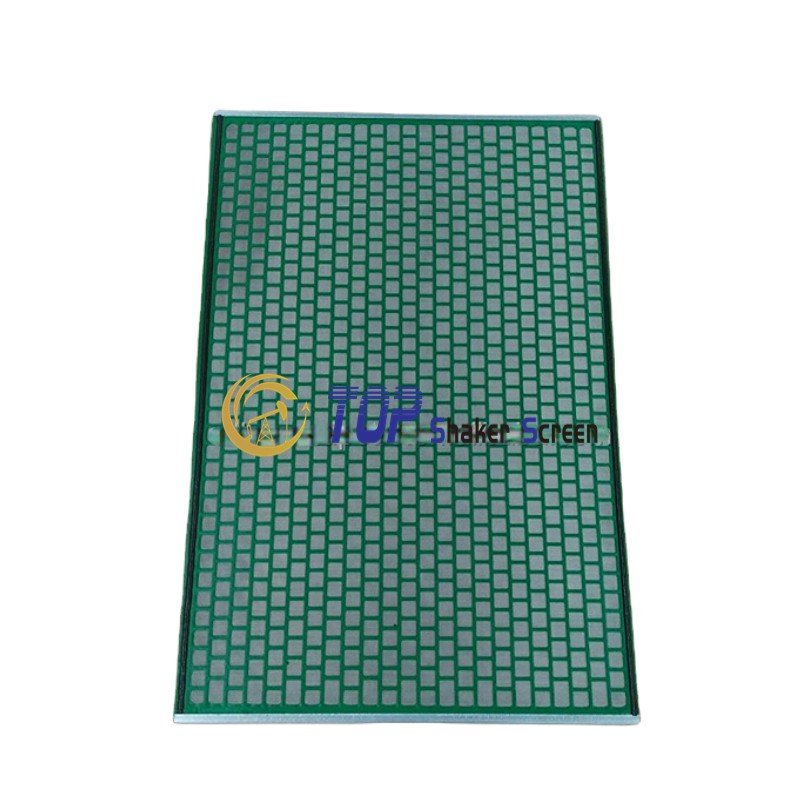

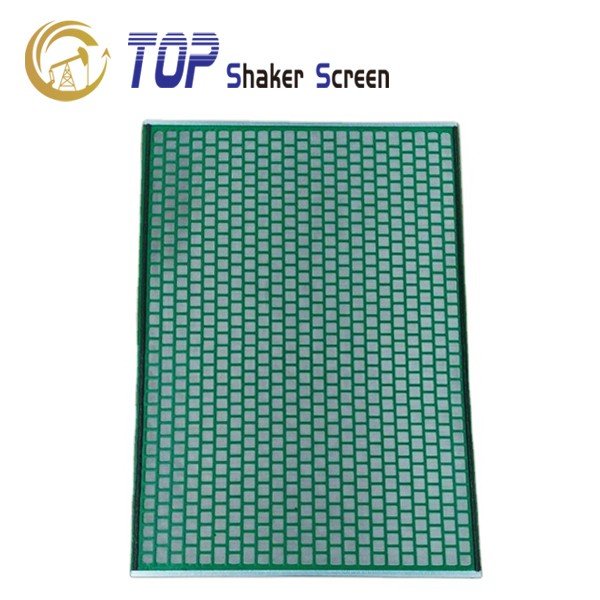

TSS-TUP TP-SG Series Replacement Flat Shaker Screens are engineered specifically for Scomi Prima 3G, 4G, and 5G series linear motion and cascading shale shakers. Constructed with multi-layered 304 / 316 / 316L stainless steel wire cloth in a triple-layered sandwich configuration, these screens are bonded directly to a heavy-duty Q235 perforated structural steel backing plate.
The perforated matrix divides the screen cloth into independent rectangular cells. If localized mesh wear occurs, damage is contained within a single cell and can be quickly isolated using dedicated screen saver plugs without sacrificing the entire panel. Backed by 24/7 technical support, our replacement screens are exported to over 30 countries across the Middle East, North America, and Central Asia.
Technical Parameters & Manufacturing Specifications
Mesh Material: Stainless Steel 304 / 316 / 316L
Frame Backing: Reinforced Q235 Perforated Steel
Screen Cloth Type: XR / XL High-Conductance Mesh
Working Life & Warranty: 400 – 450 Hours | 1-Year Warranty
Commercial & Packaging Details
Minimum Order Quantity: 10 PCS
Monthly Production Capacity: 5,000 PCS / Month
Lead Time: 10 – 15 Days
Packaging: Paper Carton & Fumigated Pallet
API RP 13C Designation & Performance Specifications
|
API Mesh Designation
|
D100 Separation Range (μm)
|
Conductance (kD/mm)
|
Mesh Type
|
Layer Construction
|
|
API 40
|
390.0 – 467.5
|
3.25
|
XR / XL
|
2 / 3 Layers
|
|
API 60
|
230.0 – 275.0
|
2.15
|
XR / XL
|
2 / 3 Layers
|
|
API 80
|
165.0 – 195.0
|
1.60
|
XR / XL
|
2 / 3 Layers
|
|
API 100
|
137.5 – 165.0
|
1.25
|
XR / XL
|
2 / 3 Layers
|
|
API 140
|
98.0 – 116.5
|
0.85
|
XR / XL
|
2 / 3 Layers
|
|
API 170
|
82.5 – 98.0
|
0.68
|
XR / XL
|
2 / 3 Layers
|
|
API 200
|
69.0 – 81.5
|
0.48
|
XR / XL
|
2 / 3 Layers
|
|
API 325
|
41.5 – 49.0
|
0.28
|
XR / XL
|
2 / 3 Layers
|
Adaptable Equipment & Deck Compatibility
Direct drop-in replacement flat screen for Scomi Prima series solids control equipment:
-
SCM-PrimaG 3P Linear Motion Shale Shakers (3-Panel Deck)
-
SCM-PrimaG 4P Linear Motion Shale Shakers (4-Panel Deck)
-
SCM-PrimaG 4PDD Cascading Shale Shakers (4-Panel Deck)
-
SCM-PrimaG 5P Linear Motion Shale Shakers (5-Panel Deck)
Competitive Advantages & Engineering Value
-
Triple-Layer Sandwich Construction: SS304/316 wire cloth bonded under high temperature ensures zero delamination and superior corrosion resistance.
-
Individual Cell Protection: Precision rectangular punched matrix isolates local damage, allowing easy plugging with screen saver plugs to preserve panel life.
-
Certified Separation Accuracy: 100% compliant with API RP 13C / ISO 13501 testing standards for exact D100 solids cut-points.
-
100% Interchangeable Fit: Engineered for quick drop-in replacement across all Scomi Prima 3G/4G/5G shaker beds without deck modifications.
Need Custom Mesh Sizing, API Recommendations, or Bulk Pricing?
TSS-TUP technical engineers provide 24/7 technical support, deck compatibility checks, and fast factory-direct quotations for global drilling contractors.
Legal & Technical Disclaimer:
Scomi, Prima, and SCM-PrimaG are registered trademarks of their respective brand owners. TSS-TUP produces independent aftermarket replacement screens. All brand names and model numbers are referenced strictly for cross-compatibility and engineering interchangeability purposes.
