1141x1210 mm Hook Strip Flat Replacement Shaker Screen (ALS-2 Compatible)

Product Item : 5
Category： Shale Shaker Screens
Attachment INQUIRY EMAIL

Product Description:

Engineering Notice: TSS-TUP produces premium aftermarket replacement shaker screens engineered specifically for full interchangeability with ALS-2 series shale shakers.

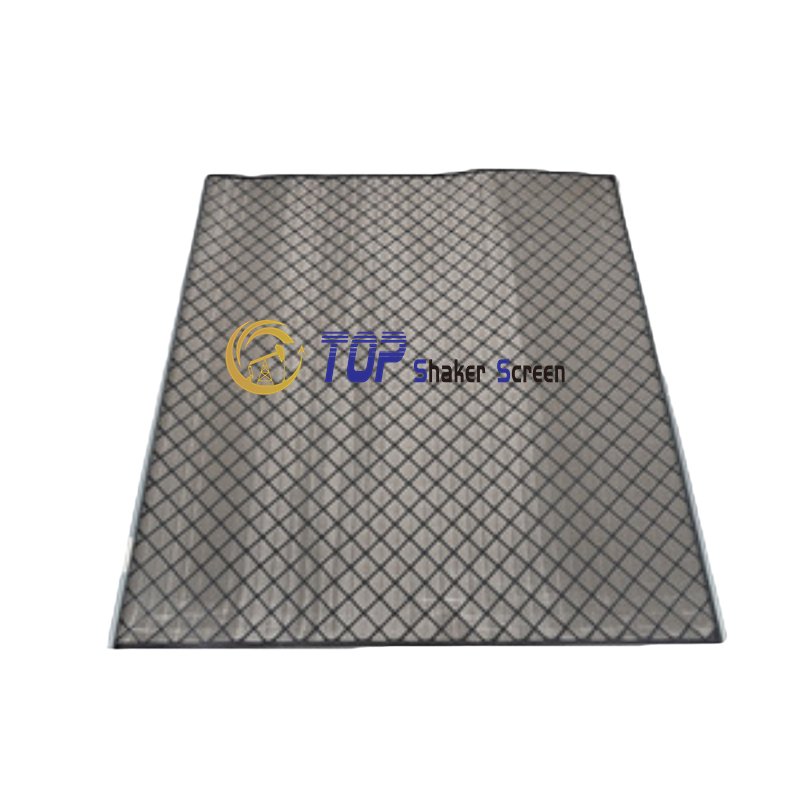

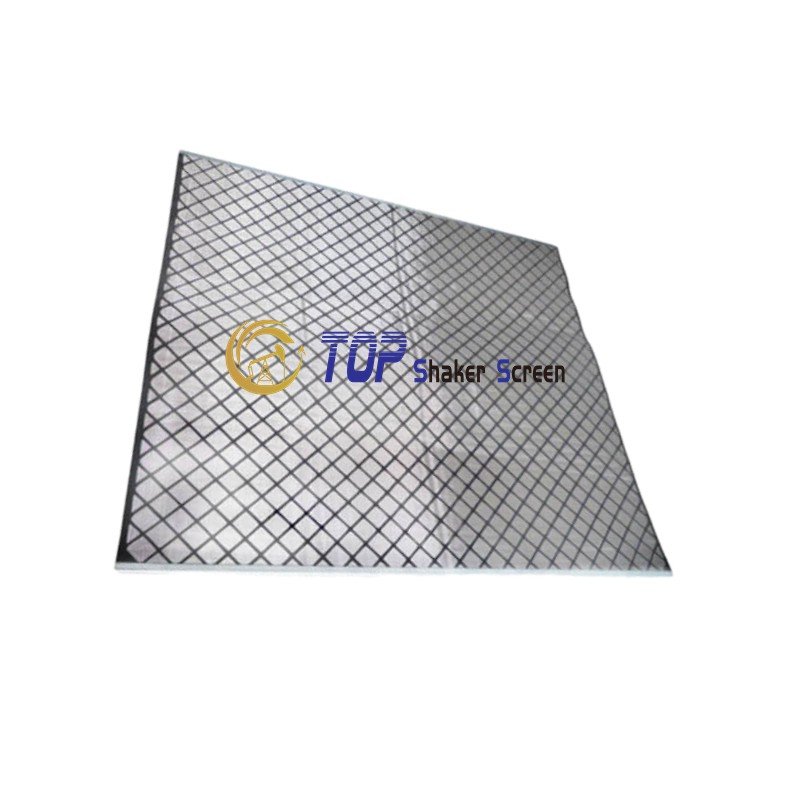

1141x1210 mm Hook Strip Flat Replacement Shaker Screen for ALS-2

Product Overview & Operating Performance

TSS-TUP TP-ALS-2 Hook Strip Flat Replacement Shaker Screens are engineered to precise dimensional specifications (1141 × 1210 mm) for standard ALS-2 solids control equipment. Built with two or three layers of premium 304 / 316 / 316L stainless steel wire cloth combined with heavy-duty structural steel backing, these screens provide reliable solids separation under rigorous drilling conditions.

Reinforced banded steel hook edges prevent screen edge collapse and eliminate mesh pull-out under high tension loads. Available in XR and XL mesh types across API 20 to API 325 designations, these screens optimize fluid conductance while extending service life. Backed by 24/7 technical support, our products are exported to over 30 countries worldwide across the Middle East, North America, and Central Asia.

Technical Parameters & Manufacturing Specifications

Dimensions: 1141 × 1210 mm

Mesh Material: Stainless Steel 304 / 316 / 316L

Screen Construction: Hook Strip Flat / Q235 Backed

Working Life & Warranty: 400 – 450 Hours | 1-Year Warranty

Commercial & Packaging Details

Minimum Order Quantity: 10 PCS

Monthly Production Capacity: 5,000 PCS / Month

Lead Time: 10 – 15 Days

Packaging: Paper Carton & Plywood Pallet

API RP 13C Designation & Conductance Data Table

Item	API RP 13C Designation	Mesh Type	Conductance (kD/mm)	D100 Separation (μm)	Non-Blank Area (sq.ft)
1	API 325	XR	0.30	48	2.64
2	API 270	XR	0.48	57	2.64
3	API 230	XR	0.68	61	2.64
4	API 140	XR	1.04	100	2.64
5	API 140	XR	1.10	110	2.64
6	API 120	XR	1.30	117	2.64
7	API 100	XR	2.60	142	2.64
8	API 70	XR	3.59	204	2.64
9	API 60	XR	3.62	233	2.64
10	API 60	XR	4.30	237	2.64
11	API 325	XL	0.38	44	2.64
12	API 230	XL	0.39	61	2.64
13	API 200	XL	0.78	72	2.64
14	API 200	XL	1.12	78	2.64
15	API 140	XL	1.62	100	2.64
16	API 140	XL	1.77	116	2.64
17	API 100	XL	2.20	144	2.64
18	API 80	XL	4.39	186	2.64
19	API 50	XL	6.02	295	2.64

Adaptable Equipment & Deck Compatibility

Direct drop-in replacement hook strip flat screen for ALS series shale shakers:

ALS-2 High-Performance Linear Motion Shale Shakers
ALS Series Mud Cleaner Assemblies

Competitive Advantages & Engineering Value

Reinforced Hook Strip Edges: Heavy-gauge banded steel hooks prevent edge pull-out and maintain uniform tension under aggressive high-G loads.
Multi-Layer Wire Mesh Cloth: Premium SS304/316/316L cloth provides outstanding corrosion resistance and extended working life in abrasive drilling fluids.
Certified Separation Accuracy: 100% compliant with API RP 13C / ISO 13501 testing standards across XR and XL mesh types.
Optimized Deck Fit: Precision dimensions (1141 × 1210 mm) ensure fast installation and reliable seal against the basket deck.

Need Custom Mesh Sizing, API Recommendations, or Bulk Pricing?

TSS-TUP technical engineers provide 24/7 technical support, deck compatibility checks, and fast factory-direct quotations for global drilling contractors.

Request a Factory Quote → Email Technical Sales

Legal & Technical Disclaimer:
ALS-2 and M-I SWACO are registered trademarks of Schlumberger Limited. TSS-TUP produces independent aftermarket replacement screens. All brand names and model references are used strictly for compatibility and engineering interchangeability purposes.
