Replacement Flat Shaker Screen for Scomi Prima 3G/4G/5G Series (API RP 13C)

Product Item : 1
Category： Shale Shaker Screens
1
Attachment INQUIRY EMAIL

Product Description:

Engineering Notice: TSS-TUP manufactures high-performance aftermarket replacement shaker screens engineered specifically for full interchangeability with Scomi Prima series shale shakers.

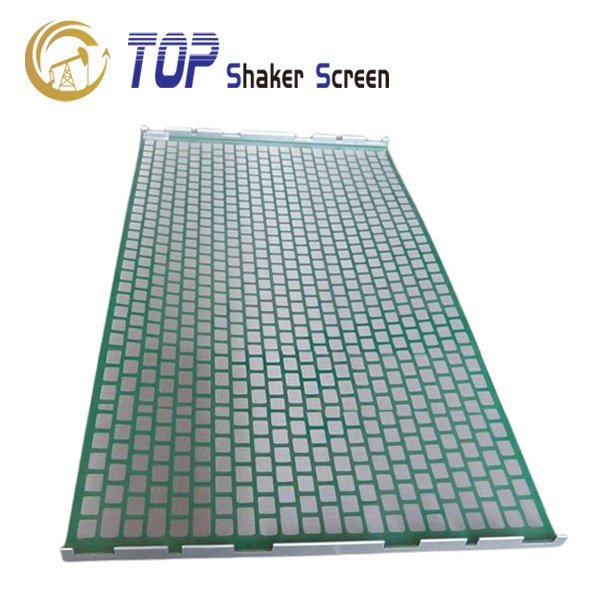

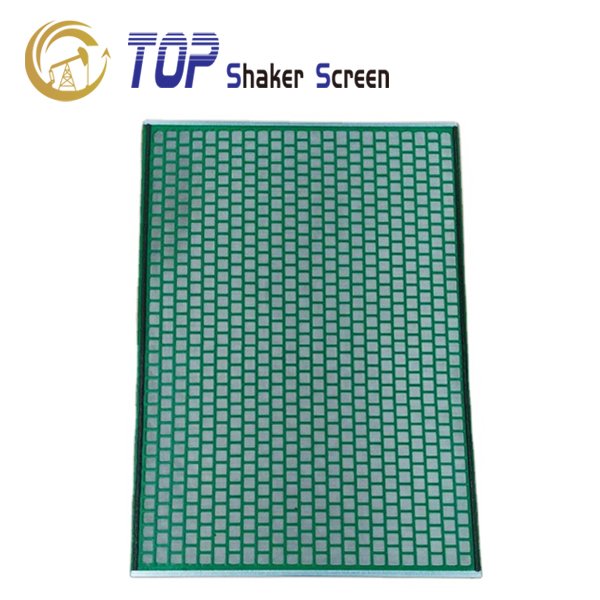

Replacement Flat Shaker Screen for Scomi Prima 3G 4G 5G

Product Overview & Operating Performance

TSS-TUP TP-SG Series Replacement Flat Shaker Screens are engineered specifically for Scomi Prima 3G, 4G, and 5G series linear motion and cascading shale shakers. Built with a triple-layered sandwich construction of premium 304 / 316 / 316L stainless steel wire mesh bonded directly to a heavy-duty Q235 perforated structural steel frame, these screens deliver exceptional mechanical durability and high slurry throughput.

The precision perforated matrix divides the screen cloth into independent rectangular cells, preventing localized tears from propagating across the panel. Individual damaged cells can be quickly sealed off using screen saver plugs without discarding the entire screen panel. Backed by 24/7 technical support, our replacement screens are exported to over 30 countries across the Middle East, North America, and Central Asia.

Technical Parameters & Manufacturing Specifications

Mesh Material: Stainless Steel 304 / 316 / 316L

Frame Backing: Reinforced Q235 Perforated Steel

Screen Cloth Type: XR / XL High-Conductance Mesh

Working Life & Warranty: 400 – 450 Hours | 1-Year Warranty

Commercial & Packaging Details

Minimum Order Quantity: 10 PCS

Monthly Production Capacity: 5,000 PCS / Month

Lead Time: 10 – 15 Days

Packaging: Paper Carton & Fumigated Pallet

API RP 13C Designation & Performance Specifications

API Mesh Designation	D100 Separation Range (μm)	Conductance (kD/mm)	Mesh Type	Layer Construction
API 40	390.0 – 467.5	3.25	XR / XL	2 / 3 Layers
API 60	230.0 – 275.0	2.15	XR / XL	2 / 3 Layers
API 80	165.0 – 195.0	1.60	XR / XL	2 / 3 Layers
API 100	137.5 – 165.0	1.25	XR / XL	2 / 3 Layers
API 140	98.0 – 116.5	0.85	XR / XL	2 / 3 Layers
API 170	82.5 – 98.0	0.68	XR / XL	2 / 3 Layers
API 200	69.0 – 81.5	0.48	XR / XL	2 / 3 Layers
API 325	41.5 – 49.0	0.28	XR / XL	2 / 3 Layers

Adaptable Equipment & Deck Compatibility

Direct drop-in replacement flat screen for Scomi Prima series solids control equipment:

SCM-PrimaG 3P Linear Motion Shale Shakers (3-Panel Deck)
SCM-PrimaG 4P Linear Motion Shale Shakers (4-Panel Deck)
SCM-PrimaG 4PDD Cascading Shale Shakers (4-Panel Deck)
SCM-PrimaG 5P Linear Motion Shale Shakers (5-Panel Deck)

Competitive Advantages & Engineering Value

Triple-Layer Sandwich Construction: SS304/316 wire cloth bonded under high temperature ensures zero delamination and superior corrosion resistance.
Individual Cell Protection: Precision rectangular punched matrix isolates local damage, allowing easy plugging with screen saver plugs to preserve panel life.
Certified Separation Accuracy: 100% compliant with API RP 13C / ISO 13501 testing standards for exact D100 solids cut-points.
100% Interchangeable Fit: Engineered for quick drop-in replacement across all Scomi Prima 3G/4G/5G shaker beds without deck modifications.

Need Custom Mesh Sizing, API Recommendations, or Bulk Pricing?

TSS-TUP technical engineers provide 24/7 technical support, deck compatibility checks, and fast factory-direct quotations for global drilling contractors.

Request a Factory Quote → Email Technical Sales

Legal & Technical Disclaimer:
Scomi, Prima, and SCM-PrimaG are registered trademarks of their respective brand owners. TSS-TUP produces independent aftermarket replacement screens. All brand names and model numbers are referenced strictly for cross-compatibility and engineering interchangeability purposes.
