Heavy-Duty Cyclone Outlet Assembly Replacement for Bauer P/N 234938
Polyurethane-Lined Underflow Distribution Hopper | 100% Bolt-on Fit for Bauer MAT BE 100–500 Desanders
Disclaimer: All manufacturer names, symbols, part numbers (including Bauer, MAT, BE 100, BE 170, BE 250, BE 400, BE 500, BC 35, P/N 234938, and PN 234938), and descriptions are referenced strictly for cross-reference, technical identification, and equipment compatibility purposes. Our products are independent, heavy-duty aftermarket replacement solids control components and are neither manufactured nor endorsed by the OEM.
Engineering Deconstruction & Washout Prevention
In continuous foundation trench cutting, deep diaphragm wall construction, and large-diameter bored piling, desanding plants operate under intense solids loading. Hydrocyclones discharge concentrated, high-velocity sand slurries directly into the underflow collection box. When standard unlined or poorly lined discharge hoppers (OEM Part Number: 234938 / P/N 234938 / MPN 234938) face aggressive quartz particle turbulence, localized washout occurs rapidly along interior deflection corners.
A breached cyclone outlet box causes pressurized slurry leaks, washes unseparated solids across lower machine decks, and prematurely blinds or tears expensive fine-mesh dewatering screens. Waiting 10 to 16 weeks on European OEM supply chains increases Non-Productive Time (NPT) and inflates MRO operating budgets.

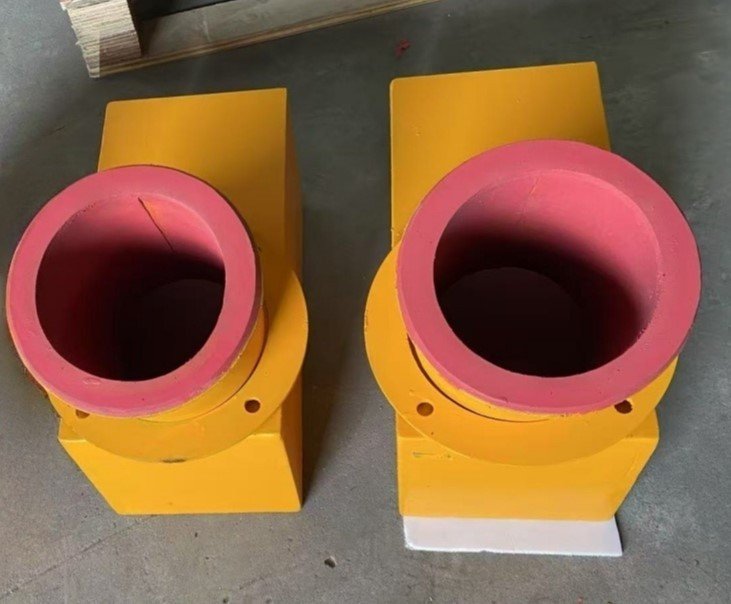

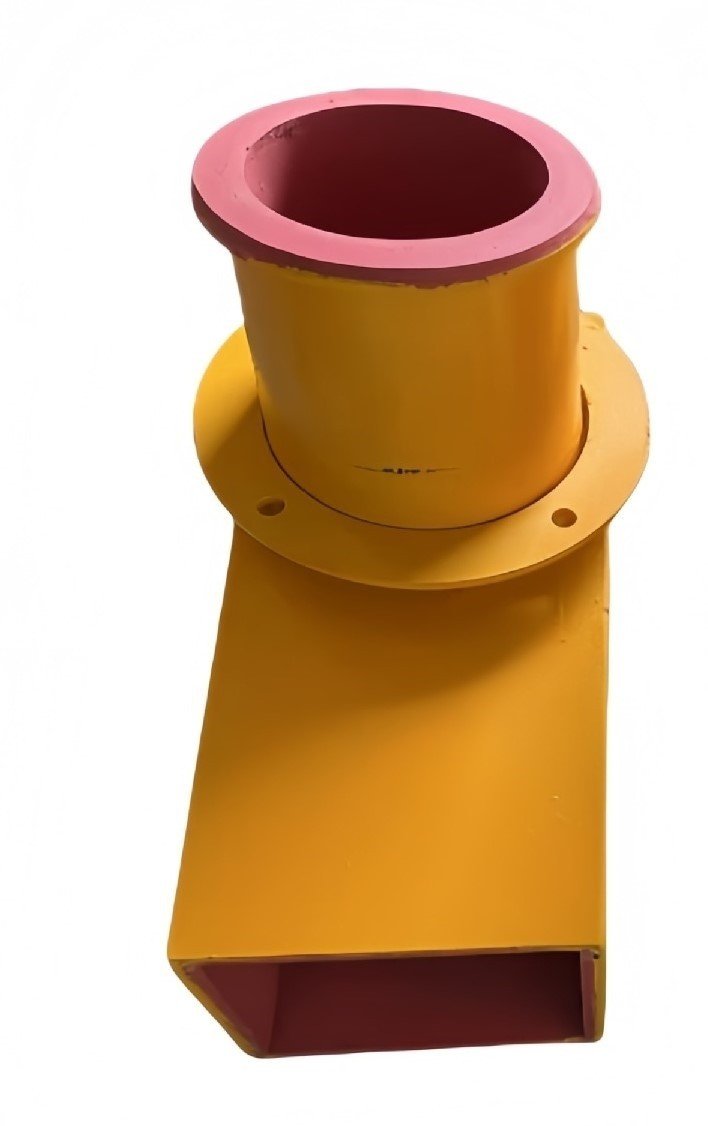

Our precision-welded Polyurethane-Lined Cyclone Outlet Assembly (Cross-Reference Part Number: 234938 / PN 234938-EQ) combines high-yield structural steel with hot-vulcanized cast polyurethane protection, providing 100% mechanical bolt-on fitment for Bauer MAT plants at a 35–45% procurement cost reduction.
Technical Specifications & OEM Cross-Reference
| Engineering Parameter | OEM Specification | Aftermarket Replacement Standard | Compliance & Tolerance |
|---|---|---|---|
| OEM Cross-Reference P/N | 234938 / PN 234938 | PN-234938-EQ | 100% Direct Bolt-on Fit |
| Applicable Equipment | Bauer MAT Desanding Plants | BE 100, BE 170, BE 250, BE 400, BE 500 | Drop-in Replacement |
| Component Description | Cyclone Underflow Outlet Box | Polyurethane-Lined Distribution Hopper | API Spec 13C Compliant |
| Structural Shell Material | Standard Carbon Steel | Q355B / ASTM A36 Heavy-Gauge Plate | Shell Thickness: 6.0 mm |
| Internal Protective Liner | Polyurethane / Rubber Coated | Hot-Vulcanized Cast Polyurethane (CPU) | Liner Thickness: 10.0–12.0 mm |
| Elastomer Hardness | Standard Industrial Elastomer | Shore 85A–90A High Tear Compound | DIN ISO 7619-1 Verified |
| Slurry Velocity Resistance | Up to 8.0 m/s Underflow Jet | Rated for ≥ 12.0 m/s Continuous Dynamic Jetting | Anti-Washout Geometry |
| Flange Hole Alignment | Bauer MAT Cyclone Pattern | CNC Laser Cut Bolt Centers (± 0.2 mm) | DIN / ANSI Multi-Fit |
| Surface Protective Coating | Standard Industrial Primer | Sa 2.5 Sandblast + Heavy Epoxy System | Dry Film Thickness: ≥ 250 μm |
Manufacturing Standards & Quality Control
- Continuous Robot Seam Welding: Shells are fabricated on precision clamping fixtures with full-penetration robotic welds to resist high-G dynamic vibration (>6.0G) transferred from bottom dewatering screens.
- High-Adhesion Polyurethane Curing: The 10 mm CPU wear liner undergoes automated centrifugal mold casting with high-strength chemical bonding agents, achieving peel adhesion strength ≥ 14 kN/m to eliminate liner delamination.
- Hydrodynamic Deflection Chamber: Redesigned internal baffles dissipate kinetic energy from the incoming slurry cone, transforming turbulent jet streams into laminar gravity cascades that protect dewatering screens from localized impact punctures.
Maintenance & Refurbishment Installation Guidelines
- Mounting Flange Inspection: Clean the mating flanges of the upper desander cyclone cones and the lower support frame; verify flange flatness within ≤ 0.5 mm across the gasket surface.
- Vibration Isolation Gaskets: Always install high-durometer EPDM or polyurethane full-face gaskets between the hopper flange and mating pipework to prevent micro-fretting.
- Torque Calibration: Tighten mounting bolts in a cross-star pattern to specified torque values (120 N·m for M16 Grade 8.8 fasteners). Re-torque fasteners after the first 24 hours of slurry circulation.
Frequently Asked Questions
Q: Is this cyclone outlet assembly (P/N 234938) 100% interchangeable with Bauer MAT BE-series desanders?
A: Yes. Mounting bolt pitch, inlet throat dimensions, and bottom discharge chute geometry align precisely with original Bauer MAT BE 100 through BE 500 desander installations.
Q: How does cast polyurethane (CPU 85A/90A) compare to vulcanized natural rubber liners?
A: High-tear CPU polyurethane delivers more than double the abrasive erosion resistance of conventional rubber in sharp quartz sand slurries, preventing washout while resisting cutting damage from coarse gravel.
Q: What quality assurance documentation is provided with each unit?
A: Every assembly ships with an EN 10204 3.1 Material Test Certificate, NDT ultrasonic weld inspection reports, polyurethane peel adhesion test records, and dimensional CMM reports.
