Engineering Notice: TOP Shaker Screen produces premium aftermarket replacement screens engineered for full interchangeability with original NOV Brandt equipment.
Product Overview & Construction

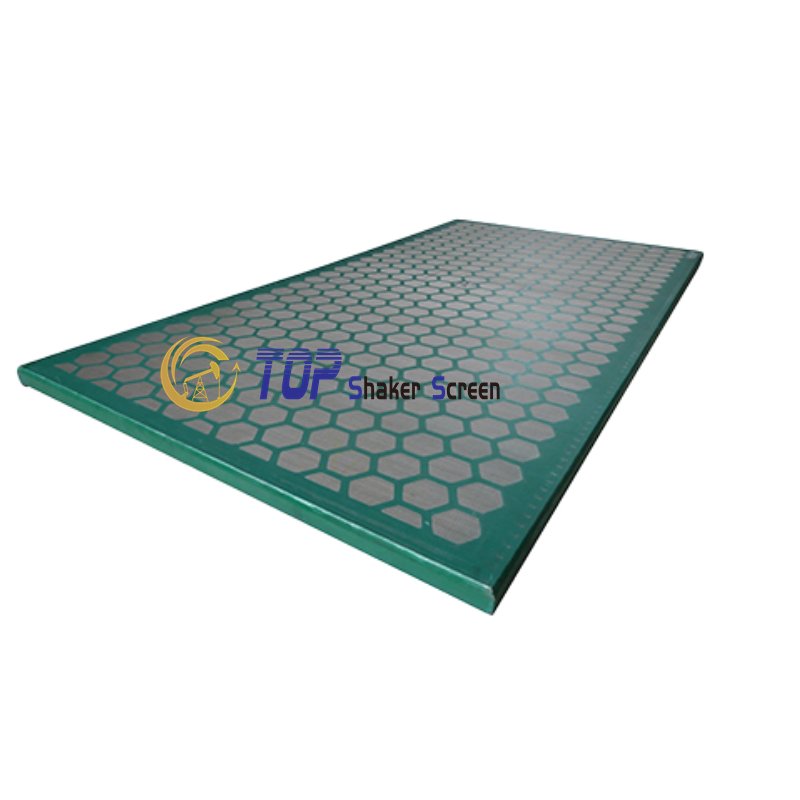

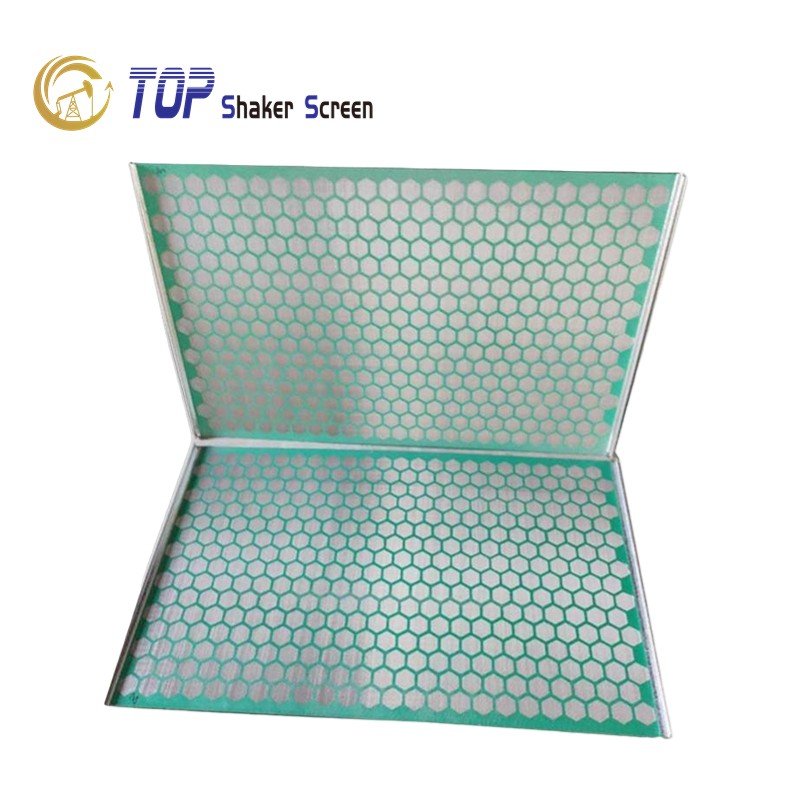

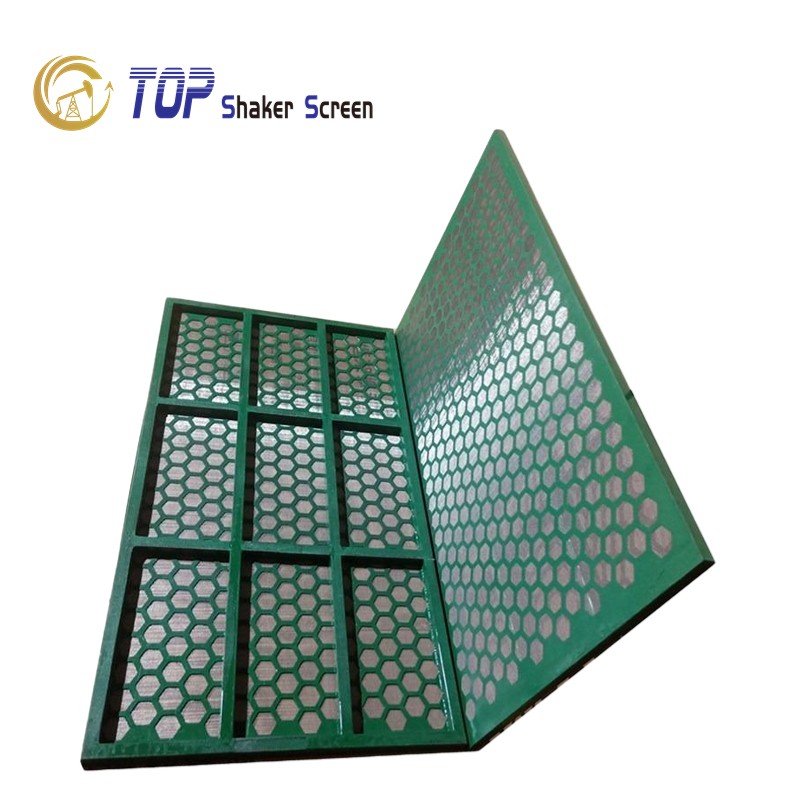

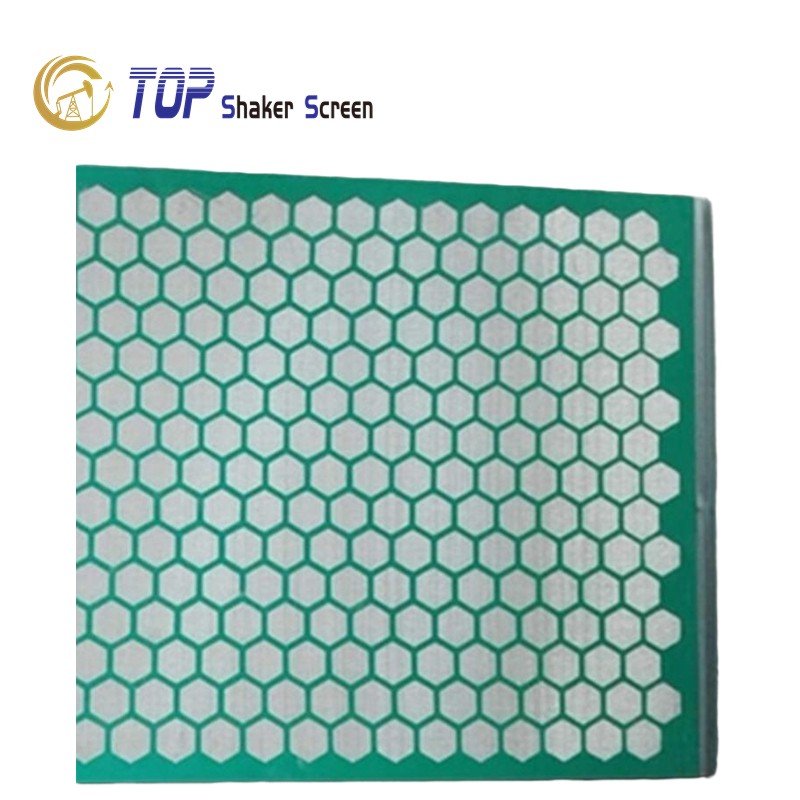

TSS-TUP replacement flat screens for NOV Brandt BLT-50 / LCM-2D shale shakers (bottom basket) are constructed with two or three layers of premium 304 / 316 / 316L stainless steel wire mesh cloth, precision-bonded onto a heavy-duty Q235 structural steel backing plate. This robust combination delivers exceptional mechanical resistance against high-G vibration forces, minimizes mesh blinding, and ensures maximum fluid handling capacity.
Technical Specifications
Dimensions: 1251 × 635 mm
Mesh Material: Stainless Steel 304 / 316 / 316L
Frame Backing: Heavy-Duty Q235 Steel Plate
Working Life & Warranty: 400 – 450 Hours | 1-Year Warranty
API RP 13C Compliance & Performance Data Table
|
Item
|
API RP 13C Designation
|
Mesh Type
|
Conductance (kD/mm)
|
D100 Separation (μm)
|
Layers
|
Non-Blanked Area (sq.ft)
|
|
1
|
API 325
|
XR / XL
|
0.37
|
44
|
2 / 3
|
8.60
|
|
2
|
API 200
|
XR / XL
|
0.54
|
72
|
2 / 3
|
8.60
|
|
3
|
API 170
|
XR / XL
|
0.70
|
98
|
2 / 3
|
8.60
|
|
4
|
API 140
|
XR / XL
|
1.14
|
104
|
2 / 3
|
8.60
|
|
5
|
API 120
|
XR / XL
|
1.55
|
119
|
2 / 3
|
8.60
|
|
6
|
API 100
|
XR / XL
|
2.04
|
147
|
2 / 3
|
8.60
|
|
7
|
API 80
|
XR / XL
|
2.33
|
195
|
2 / 3
|
8.60
|
|
8
|
API 70
|
XR / XL
|
2.85
|
223
|
2 / 3
|
8.60
|
|
9
|
API 60
|
XR / XL
|
3.09
|
275
|
2 / 3
|
8.60
|
Competitive Advantages & Engineering Value
-
Superior Wear & Corrosion Resistance: Premium SS304/316/316L wire cloth ensures maximum longevity in abrasive and corrosive drilling fluids.
-
Certified API RP 13C Standards: 100% compliant with ISO 13501 / API RP 13C testing specifications for precise solid-liquid separation.
-
High Solids Removal Efficiency: Engineered with an optimized non-blanked area (8.60 sq.ft) to prevent blinding and handle high flow rates.
-
Fast Export Delivery & Secure Packaging: Standard export packing in heavy-duty cardboard cartons and seaworthy fumigated wooden crates.
Adaptable Shale Shaker Models
Direct drop-in replacement for bottom basket decks on:
-
NOV Brandt BLT-50 Shale Shakers
-
NOV Brandt LCM-2D Shale Shakers
Need Custom Mesh Sizing, API Recommendations, or Bulk Pricing?
TSS-TUP technical engineers provide 24/7 technical support, deck compatibility checks, and fast factory-direct quotations for global drilling contractors.
