Brandt VSM 300 Primary Replacement Shaker Screen (API RP 13C Standard)

Brandt VSM 300 Primary Replacement Shaker Screen (API RP 13C Standard)

Product Item : Brandt VSM 300 Scalping
Category： Shale Shaker Screens
Attachment INQUIRY EMAIL

Product Description:

Engineering Notice: TSS-TUP produces premium aftermarket replacement screens engineered specifically for full interchangeability with NOV Brandt VSM 300 shale shakers and mud cleaners.

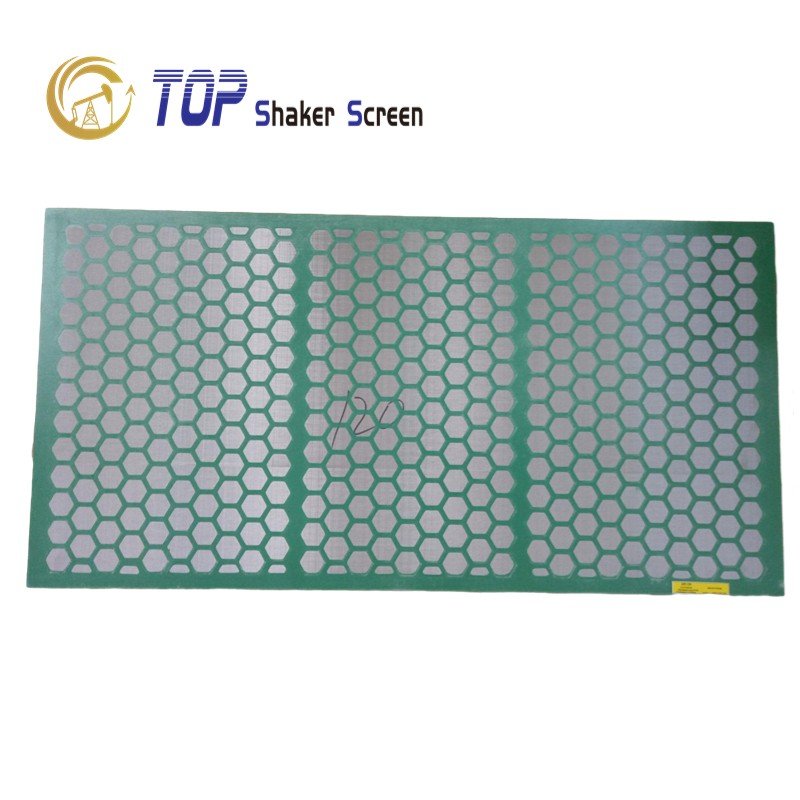

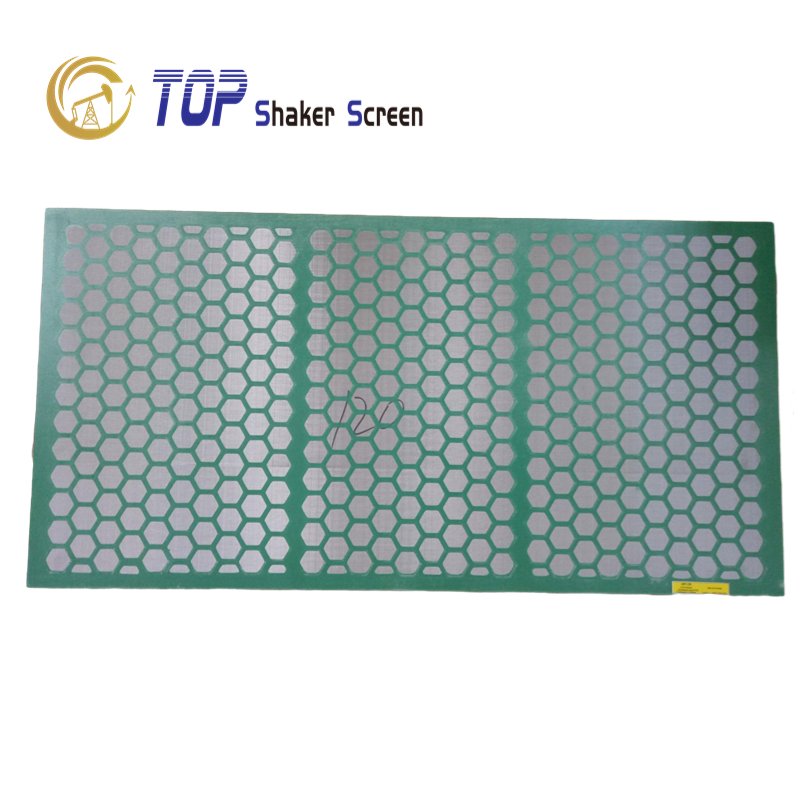

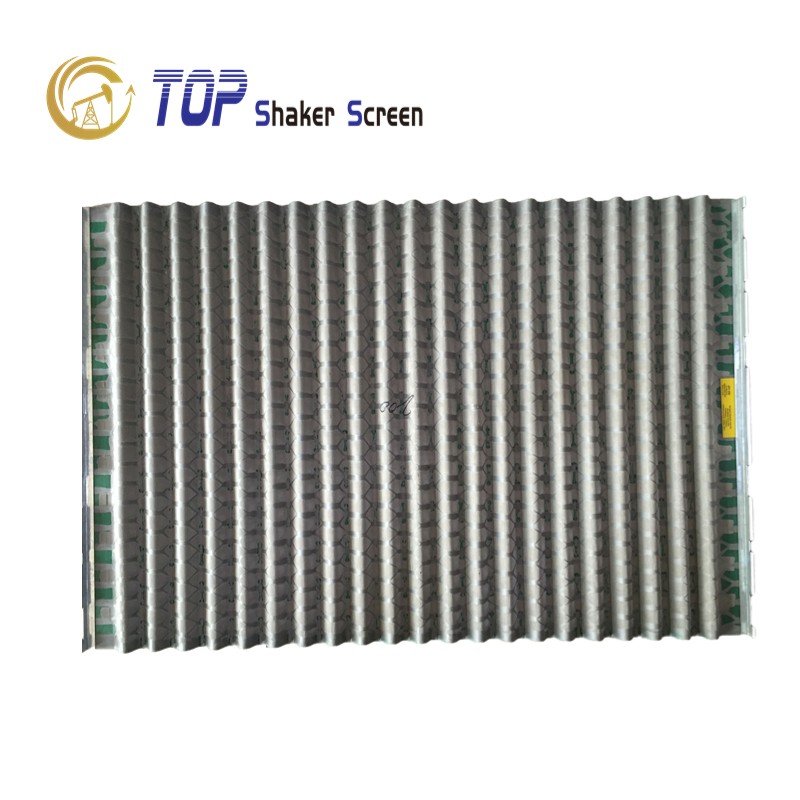

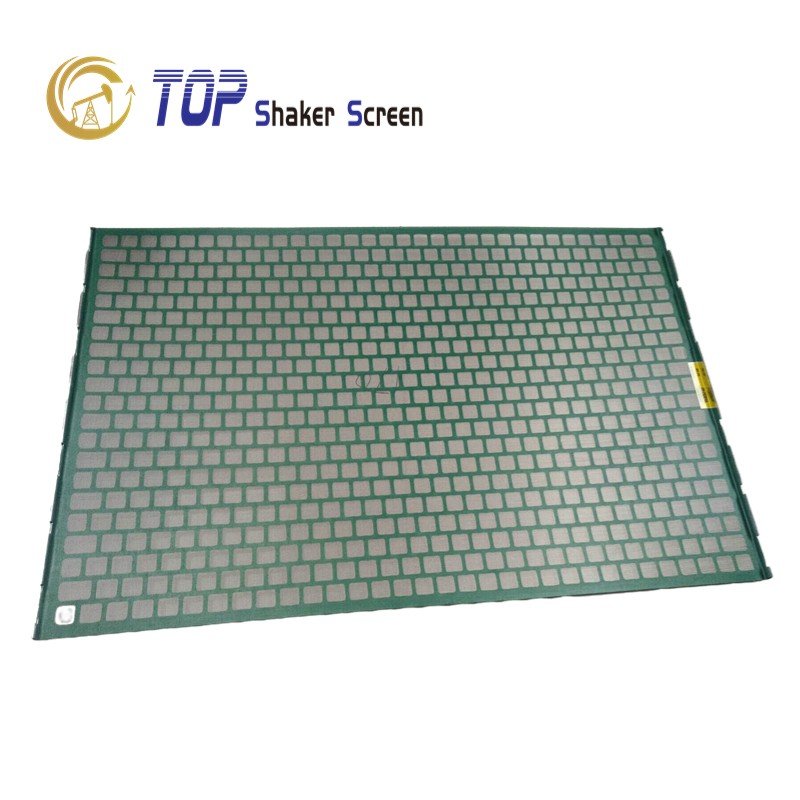

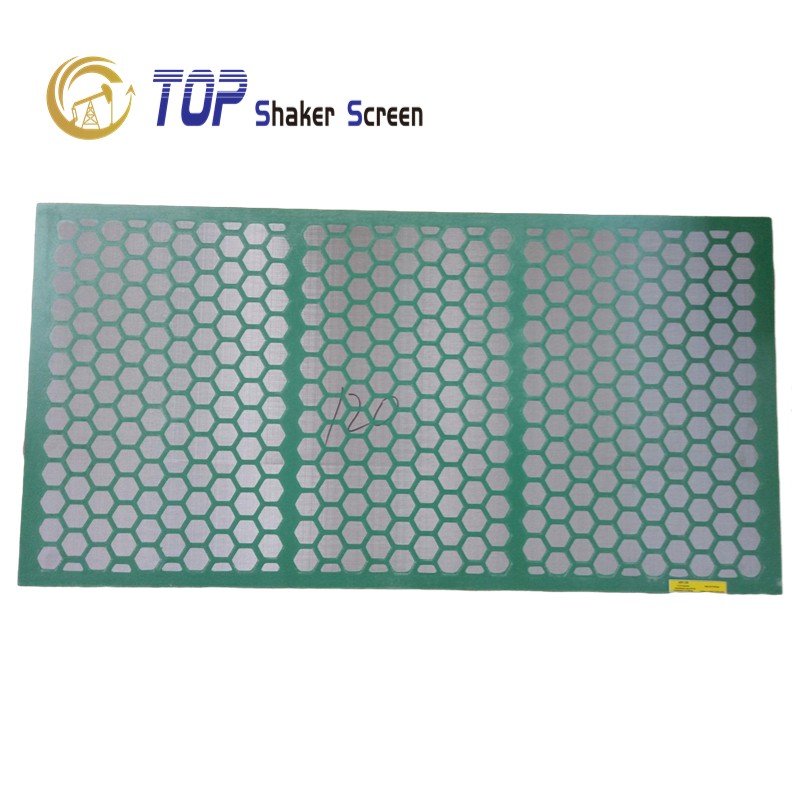

Brandt VSM 300 Primary Shaker Screen Replacement

Product Overview & Operating Performance

TSS-TUP TP-VSM 300P Primary Replacement Shaker Screens are engineered specifically for the lower (primary) deck of NOV Brandt VSM 300 shale shakers mounted on a constant 7° uphill ramp. Constructed with multi-layered 304 / 316 / 316L stainless steel wire cloth bonded to a high-tensile perforated steel backing plate, these screens provide superior fluid conductance and prevent solids build-up.

The rigid steel frame backing ensures maximum resistance against blind blinding and screen sag under high-G linear motion forces. Backed by 24/7 technical support, our replacement screens are exported to over 30 countries across the Middle East, North America, and Central Asia.

Technical Parameters & Manufacturing Specifications

Mesh Material: Stainless Steel 304 / 316 / 316L

Frame Backing: Reinforced Q235 Steel Plate

Deck Location: Lower Primary Deck (4 Screens/Set)

Working Life & Warranty: 400 – 450 Hours | 1-Year Warranty

Commercial & Packaging Details

Minimum Order Quantity: 10 PCS

Monthly Capacity: 5,000 PCS / Month

Lead Time: 10 – 15 Days

Packaging: 2 PCS/Carton, Plywood Pallet

API RP 13C Designation & Performance Data Table

Item	API RP 13C Designation	Mesh Type	Conductance (kD/mm)	D100 Separation (μm)	Layers	Non-Blank Area (sq.ft)
1	API 325	XR	0.39	44	1 / 2 / 3	4.60
2	API 270	XR	0.67	57	1 / 2 / 3	4.60
3	API 230	XR	0.71	68	1 / 2 / 3	4.60
4	API 200	XR	1.32	73	1 / 2 / 3	4.60
5	API 170	XR	1.34	83	1 / 2 / 3	4.60
6	API 140	XR	1.89	101	1 / 2 / 3	4.60
7	API 120	XR	1.89	134	1 / 2 / 3	4.60
8	API 100	XR	2.66	164	1 / 2 / 3	4.60
9	API 80	XR	2.76	193	1 / 2 / 3	4.60
10	API 70	XR	3.33	203	1 / 2 / 3	4.60
11	API 60	XR	4.10	268	1 / 2 / 3	4.60
12	API 50	XR	5.17	285	1 / 2 / 3	4.60
13	API 45	XR	5.84	360	1 / 2 / 3	4.60
14	API 40	XR	8.64	439	1 / 2 / 3	4.60
15	API 35	XR	9.69	538	1 / 2 / 3	4.60
16	API 20	XR	10.88	809	1 / 2 / 3	4.60

Adaptable Equipment & Deck Compatibility

Direct drop-in replacement flat screen for NOV Brandt VSM 300 solids control equipment:

Brandt VSM 300 Shale Shakers (Lower Primary Deck - 4 Screens/Deck)
Brandt VSM 300 Vibrating Screen Decks
Brandt VSM 300 Mud Cleaner Assemblies

Competitive Advantages & Engineering Value

Corrosion-Resistant Stainless Wire Cloth: SS304/316/316L woven mesh cloth ensures maximum wear life in heavy oil-based and water-based drilling muds.
Optimized 7° Uphill Solids Conveyance: Flat panel design provides 4.60 sq.ft effective non-blanked area to maintain consistent flow and prevent mud buildup.
Certified Separation Cut-Points: 100% compliant with API RP 13C / ISO 13501 testing standards for accurate solids separation.
Rigid Perforated Backing: High-tensile Q235 structural steel backing plate eliminates panel distortion under aggressive high-G loads.

Need Custom Mesh Sizing, API Recommendations, or Bulk Pricing?

TSS-TUP technical engineers provide 24/7 technical support, deck compatibility checks, and fast factory-direct quotations for global drilling contractors.

Request a Factory Quote → Email Technical Sales

Legal & Technical Disclaimer:
[1] Derrick, FLC, and Pyramid are registered trademarks of Derrick Corporation.
[2] Brandt and NOV are registered trademarks of National Oilwell Varco.
[3] MI-Swaco and Mongoose are registered trademarks of Schlumberger Limited.
* All manufacturer names and part numbers are referenced solely for engineering compatibility and interchangeability purposes.
