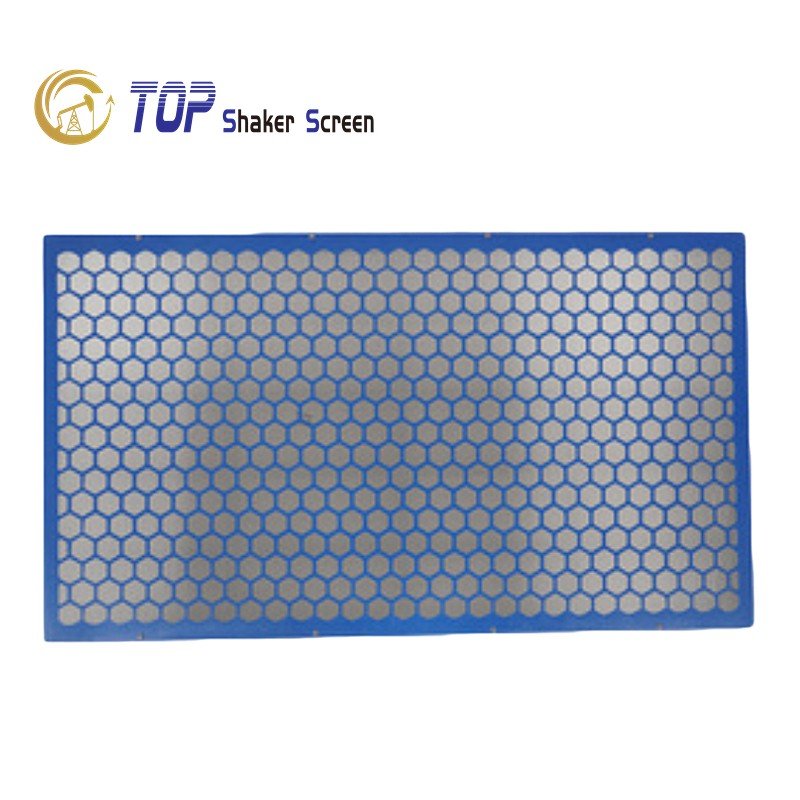

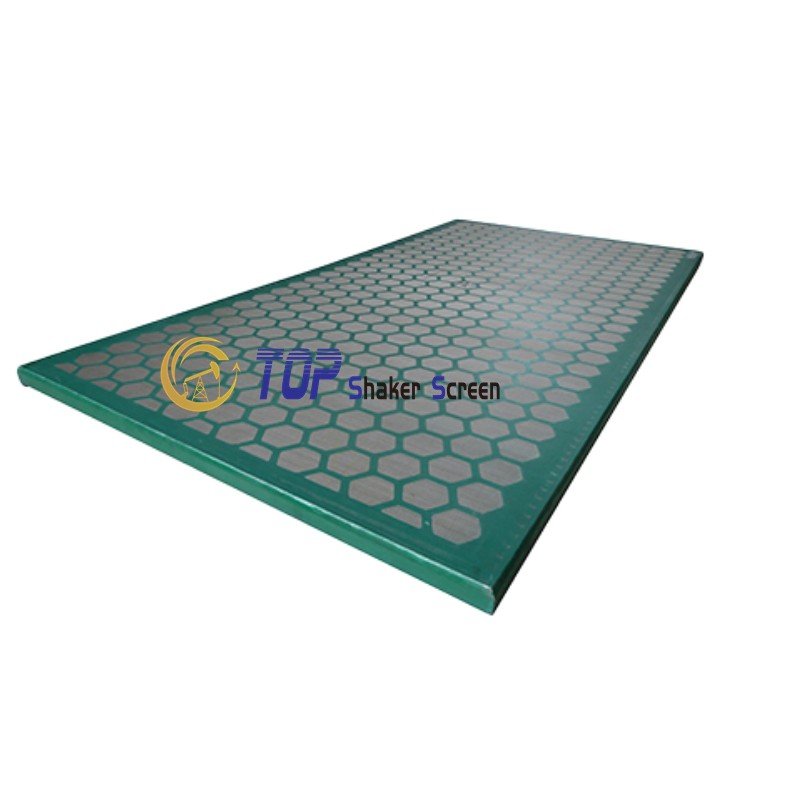

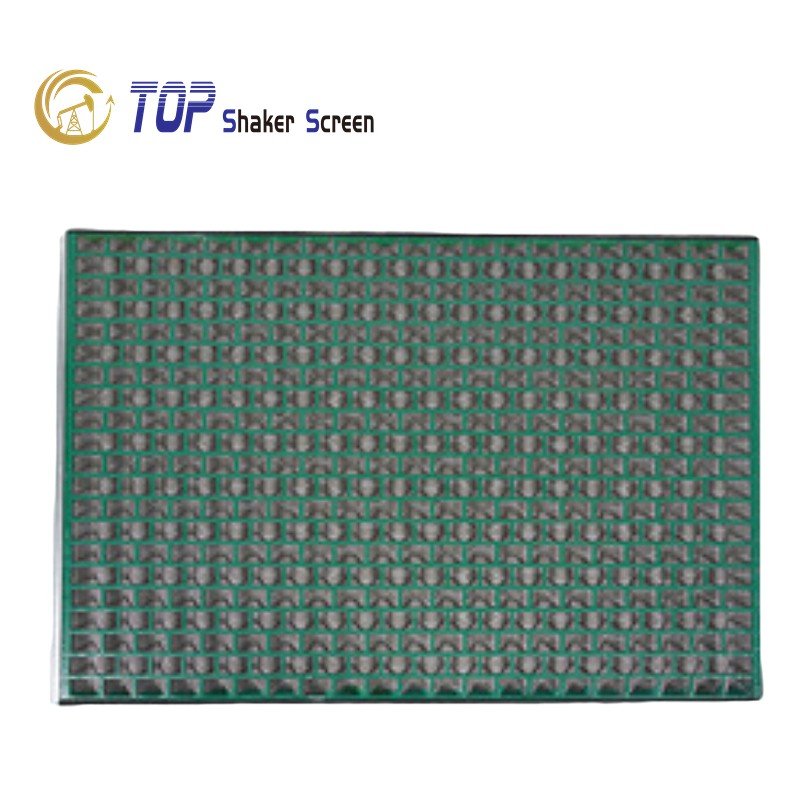

Brandt VSM 300 Primary Replacement Shaker Screen (API RP 13C Standard)

Brandt VSM 300 Primary Replacement Shaker Screen (API RP 13C Standard)

Category： Shale Shaker Screens
Attachment INQUIRY EMAIL

Product Description:

Engineering Notice: TSS-TUP produces premium aftermarket replacement screens engineered specifically for full interchangeability with NOV Brandt VSM 300 shale shakers and mud cleaners.

Brandt VSM 300 Primary Shaker Screen Replacement

Product Overview & Operating Performance

TSS-TUP VSM 300 Primary Replacement Shaker Screens are engineered specifically for the lower (primary) deck of NOV Brandt VSM 300 shale shakers mounted on a constant 7° uphill ramp. Constructed with multi-layered 304 / 316 / 316L stainless steel wire cloth bonded to a high-tensile perforated steel backing frame, these screens ensure continuous solids conveyance and prevent slurry pooling.

The rigid steel-backed construction delivers maximum resistance against blind blinding and mesh delamination under severe high-G vibration forces. Backed by 24/7 technical support, our replacement screens are exported to over 30 countries across the Middle East, North America, and Central Asia.

Technical Parameters & Manufacturing Specifications

Mesh Material: Stainless Steel 304 / 316 / 316L

Frame Backing: Heavy-Duty Q235 Steel Plate

Deck Position: Lower / Primary Deck (4 Panels/Set)

Working Life & Warranty: 400 – 450 Hours | 1-Year Warranty

Commercial & Packaging Details

Minimum Order Quantity: 10 PCS

Monthly Production Capacity: 5,000 PCS / Month

Lead Time: 10 – 15 Days

Packaging: Paper Carton & Plywood Pallet

API RP 13C Designation & Performance Data Table

Item	API RP 13C Designation	Mesh Type	Conductance (kD/mm)	D100 Separation (μm)	Layers	Non-Blank Area (sq.ft)
1	API 325	XR	0.39	44	1 / 2 / 3	4.60
2	API 270	XR	0.67	57	1 / 2 / 3	4.60
3	API 230	XR	0.71	68	1 / 2 / 3	4.60
4	API 200	XR	1.32	73	1 / 2 / 3	4.60
5	API 170	XR	1.34	83	1 / 2 / 3	4.60
6	API 140	XR	1.89	101	1 / 2 / 3	4.60
7	API 120	XR	1.89	134	1 / 2 / 3	4.60
8	API 100	XR	2.66	164	1 / 2 / 3	4.60
9	API 80	XR	2.76	193	1 / 2 / 3	4.60
10	API 70	XR	3.33	203	1 / 2 / 3	4.60
11	API 60	XR	4.10	268	1 / 2 / 3	4.60
12	API 50	XR	5.17	285	1 / 2 / 3	4.60
13	API 45	XR	5.84	360	1 / 2 / 3	4.60
14	API 40	XR	8.64	439	1 / 2 / 3	4.60
15	API 35	XR	9.69	538	1 / 2 / 3	4.60
16	API 20	XR	10.88	809	1 / 2 / 3	4.60

Adaptable Equipment & Deck Compatibility

Direct drop-in replacement flat screen for NOV Brandt VSM 300 solids control equipment:

Brandt VSM 300 Shale Shakers (Lower Primary Deck - 4 Screens/Deck)
Brandt VSM 300 Vibrating Screen Units
Brandt VSM 300 Mud Cleaners & Desilter Systems

Competitive Advantages & Engineering Value

Corrosion-Resistant Stainless Wire Cloth: SS304/316/316L woven mesh cloth ensures maximum wear life in heavy oil-based and water-based drilling muds.
Optimized 7° Uphill Solids Conveyance: Flat panel design provides 4.60 sq.ft effective non-blanked area to maintain consistent flow and prevent mud buildup.
Certified Separation Cut-Points: 100% compliant with API RP 13C / ISO 13501 testing standards for accurate solids separation.
Rigid Perforated Backing: High-tensile Q235 structural steel backing plate eliminates panel distortion under aggressive high-G loads.

Need Custom Mesh Sizing, API Recommendations, or Bulk Pricing?

TSS-TUP technical engineers provide 24/7 technical support, deck compatibility checks, and fast factory-direct quotations for global drilling contractors.

Request a Factory Quote → Email Technical Sales

Legal & Technical Disclaimer:
[1] Derrick, FLC, and Pyramid are registered trademarks of Derrick Corporation.
[2] Brandt and NOV are registered trademarks of National Oilwell Varco.
[3] MI-Swaco and Mongoose are registered trademarks of Schlumberger Limited.
* All manufacturer names and part numbers are referenced solely for engineering compatibility and interchangeability purposes.
