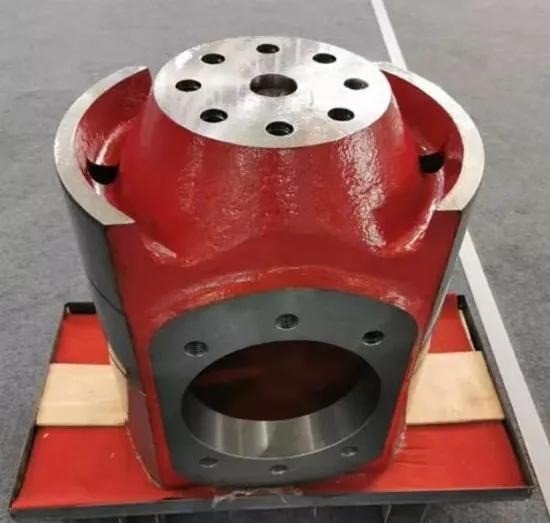

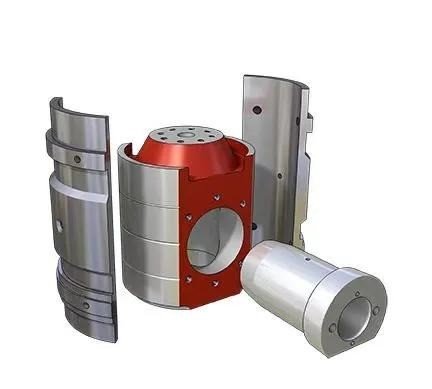

High-Performance Replacement Crosshead for NOV 14-P-220 Mud Pump (P/N 1294026)

Category： Power End Parts
INQUIRY EMAIL

Product Description:

Aftermarket Replacement Notice: TSS-TUP provides high-performance Aftermarket Crossheads for NOV 14-P-220 Triplex Mud Pumps (P/N 1294026 / 1294026-001). Conforming to API Spec 7K and ISO 9001 standards. Non-OEM replacement.

High-Performance Replacement Crosshead for NOV 14-P-220 Mud Pump (P/N 1294026)

Need NOV 14-P-220 Crossheads (P/N 1294026) in Stock?

Get factory-direct pricing, 3.1 MTC material traceability, and immediate warehouse dispatch.

WhatsApp Quick Quote →

Disclaimer: All manufacturer names, symbols, part numbers (e.g., NOV, National Oilwell Varco, 14-P-220, P/N 1294026), and descriptions are used solely for cross-reference, identification, and compatibility purposes. Our parts are independent, high-grade aftermarket replacement components conforming to API Spec 7K and are neither manufactured nor endorsed by the OEM.

Overview: Reliable Power End Solutions for NOV 14-P-220 Mud Pumps

In deep-well drilling and high-pressure jetting operations, mud pump power end failure means catastrophic Non-Productive Time (NPT). When an OEM crosshead suffers pin bore galling, fatigue cracking, or guide slide scoring, procuring an authentic component often involves a 16-to-24-week lead time and exorbitant markups. For drilling contractors, overhaul workshops, and rental fleets running continuous 7,500 PSI mud circulation, waiting on OEM supply chains is not an option.

Our API 7K certified aftermarket crosshead assembly engineered for the NOV 14-P-220 triplex mud pump (Part Number: 1294026 / 1294026-001) delivers zero-compromise mechanical reliability, direct 100% dimensional interchangeability, and immediate warehouse availability at a 35–45% procurement cost reduction. Explore our complete range of mud pump fluid end and power end replacement parts.

Technical Specifications & OEM Cross-Reference

Engineering Parameter	OEM Specification	Aftermarket Replacement Standard	Compliance & Tolerance
OEM Cross-Reference P/N	1294026 / 1294026-001	PN-1294026-EQ	100% Interchangeable
Applicable Mud Pump	NOV / National 14-P-220	14-P-220 Triplex Power End	Direct Drop-in Fit
Body Base Material	Ductile Iron	ASTM A536 Grade 80-55-06 / QT600-3	High Tensile & Nodularity
Pin Bore Diameter Tolerance	Precision Machined	ISO H6 / H7 Standard	High Cylindricity
Slide Guide Surface Treatment	High-Wear Precision Finish	Fine ground surface	Anti-Galling Oil Retention
Max Thrust Load Rating	Up to 550 kN	580 kN Safety Margin	Continuous 120 SPM Operation
Quality & Manufacturing Norm	API 7K / OEM Standard	API Spec 7K & ISO 9001:2015	Full MTC 3.1 Traceability

Manufacturing Standards & Rigorous Quality Control

Every replacement crosshead undergoes rigorous multi-stage fabrication and metallographic inspection to prevent power-end micro-fissuring and high-cycle fatigue:

Stress-Relief Annealing: Cast bodies undergo strict normalizing and thermal destressing to eliminate internal residual casting stresses, preventing bore distortion under 2,200 HP heavy-load cycles.
Coordinate Measuring Machine (CMM) Verification: Pin bore center-to-slide squareness and concentricity are validated precisely, guaranteeing equal thrust distribution across connecting rod needle bearings.
100% Non-Destructive Testing (NDT): Magnetic Particle Inspection (MPI) and Ultrasonic Testing (UT) per ASTM E709 and ASTM A609 ensure zero subsurface porosity or micro-shrinkage.

Maintenance & Refurbishment Installation Guidelines

For workshop plant managers and chief mechanics overhauling a 14-P-220 power end:

Slide Clearance Check: Measure vertical and horizontal clearance between the crosshead body and the lower/upper crosshead guide liners using a feeler gauge to maintain nominal clearance tolerances.
Pin Bore Alignment: Before inserting the crosshead pin (P/N 1294028), verify bore cleanliness and check for zero burrs. Apply an anti-seize molybdenum disulfide assembly paste.
Lubrication Priming: Confirm that the internal crosshead oil collection reservoirs and oil spray lines are thoroughly flushed and clear of metal particles before initial pump test run.

Frequently Asked Questions (FAQ)

Q: Is this crosshead 100% interchangeable with my existing NOV 14-P-220 power end components?

A: Yes. The unit matches the exact OEM envelope dimensions, pin bore diameters, and slide profiles of NOV Part Number 1294026. It mounts directly with original crosshead pins, extension rods, and guide plates without field modification.

Q: How does the wear life of ASTM A536 ductile iron compare to OEM units?

A: ASTM A536 Grade 80-55-06 provides high graphite nodularity, delivering vibration damping and self-lubricating characteristics that match OEM operational life (25,000+ continuous operating hours under proper lubrication).

Q: What quality certification documents are supplied with each shipment?

A: Each shipment includes an EN 10204 3.1 Material Test Certificate (MTC), dimensional CMM inspection report, MPI non-destructive test report, and API Spec 7K Certificate of Conformance.

Need NOV 14-P-220 Crossheads or Complete Power End Overhaul Kits?

Contact TSS-TUP engineering sales team today for technical consultation, 3.1 MTC certificates, and rapid global delivery.

WhatsApp Quick Quote → Email Our Engineers
