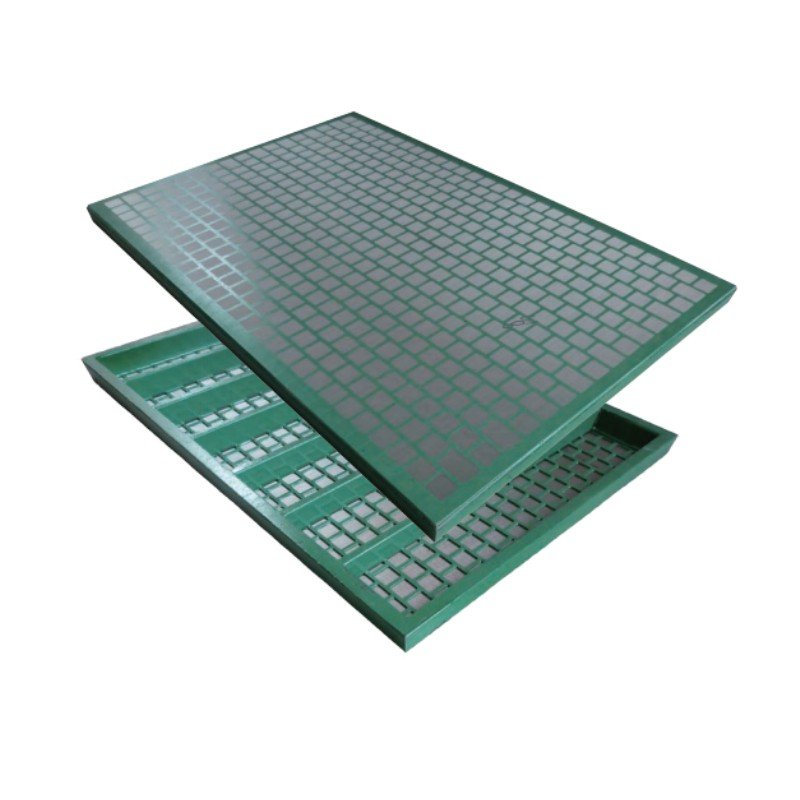

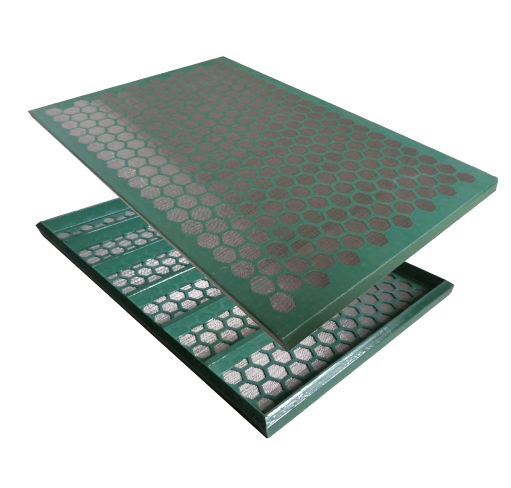

TP-KPT-28 Replacement Shaker Screen for KEMTRON KTL 28 Series (1250x715 mm)

Product Item : 1
Category： Shale Shaker Screens
1
Attachment INQUIRY EMAIL

Product Description:

Engineering Notice: TSS-TUP manufactures high-efficiency aftermarket replacement shaker screens engineered for full compatibility with KEMTRON KTL 28 and KPT 28 series shale shakers.

TP-KPT-28 Replacement Shaker Screen for KEMTRON KTL 28

Product Overview & Solids Removal Performance

The TP-KPT-28 Replacement Flat Shaker Screen is specifically designed for KEMTRON KTL 28 and KPT 28 series shale shakers. Constructed with 3 or 4 layers of premium 304 / 316 / 316L stainless steel wire mesh cloth with differential weaving densities, these screens achieve optimal cut-point separation and superior mud flow capacity.

Available in heavy-duty Q235 steel frame or corrosion-resistant reinforced composite PT frame configurations, our screens deliver excellent mechanical integrity, withstand aggressive high-G vibration loads, and eliminate premature screen blinding. Backed by 24/7 technical support, our products are widely exported to drilling contractors across the Middle East, North America, and Central Asia.

Technical Parameters & Manufacturing Specifications

Dimensions: 1250 × 715 mm

Mesh Material: Stainless Steel 304 / 316 / 316L

Frame Options: Q235 Steel Frame / Composite PT

Working Life & Warranty: 400 – 450 Hours | 1-Year Warranty

Commercial & Packaging Details

Minimum Order Quantity: 10 PCS

Monthly Capacity: 5,000 PCS / Month

Lead Time: 10 – 15 Days

Packaging: Paper Carton & Plywood Pallet

API RP 13C Designation & Performance Specifications

API Mesh Designation	D100 Separation Range (μm)	Conductance (kD/mm)	Mesh Type	Layer Construction
API 40	390.0 – 467.5	3.25	XR / XL	3 / 4 Layers
API 60	230.0 – 275.0	2.15	XR / XL	3 / 4 Layers
API 80	165.0 – 195.0	1.60	XR / XL	3 / 4 Layers
API 100	137.5 – 165.0	1.25	XR / XL	3 / 4 Layers
API 140	98.0 – 116.5	0.85	XR / XL	3 / 4 Layers
API 170	82.5 – 98.0	0.68	XR / XL	3 / 4 Layers
API 200	69.0 – 81.5	0.48	XR / XL	3 / 4 Layers
API 325	41.5 – 49.0	0.28	XR / XL	3 / 4 Layers

Adaptable Equipment & Deck Compatibility

Direct drop-in replacement flat screen for KEMTRON solids control equipment:

KEMTRON KTL 28 Series Shale Shakers
KEMTRON KPT 28 Series Shale Shakers
KEMTRON 28 Series Mud Cleaner Assemblies

Competitive Advantages & Engineering Value

Dual Frame Options: Available in high-strength Q235 steel frame or lightweight corrosion-proof composite PT frame.
100% Interchangeable Fit: Precision dimensions (1250 × 715 mm) ensure direct drop-in installation without deck modifications.
Multi-Layer SS304/316 Cloth: High-tensile stainless steel wire cloth prevents rust, delamination, and premature wear in abrasive muds.
Accurate API RP 13C Classification: Fully compliant with ISO 13501 testing protocols for precise D100 separation cut-points.

Need Custom Mesh Sizing, API Recommendations, or Bulk Pricing?

TSS-TUP technical engineers provide 24/7 technical support, deck compatibility checks, and fast factory-direct quotations for global drilling contractors.

Request a Factory Quote → Email Technical Sales

Legal & Technical Disclaimer:
KEMTRON, KTL 28, and KPT 28 are registered trademarks of their respective brand owners. TSS-TUP produces independent aftermarket replacement screens. All brand names and model numbers are referenced strictly for cross-compatibility and engineering interchangeability purposes.
