626x710 mm Flat Replacement Shaker Screen (600 Series Compatible)

626x710 mm Flat Replacement Shaker Screen (600 Series Compatible)

Product Item : 1
Category： Shale Shaker Screens
Attachment INQUIRY EMAIL

Product Description:

Engineering Notice: TSS-TUP is an independent manufacturer specializing in high-performance aftermarket replacement screens and drilling solids control solutions.

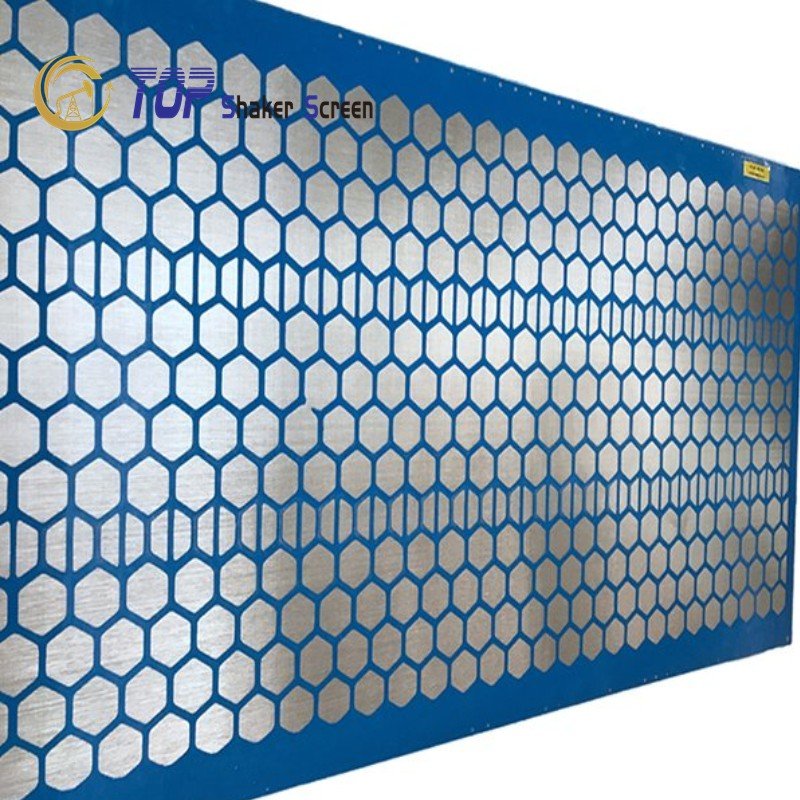

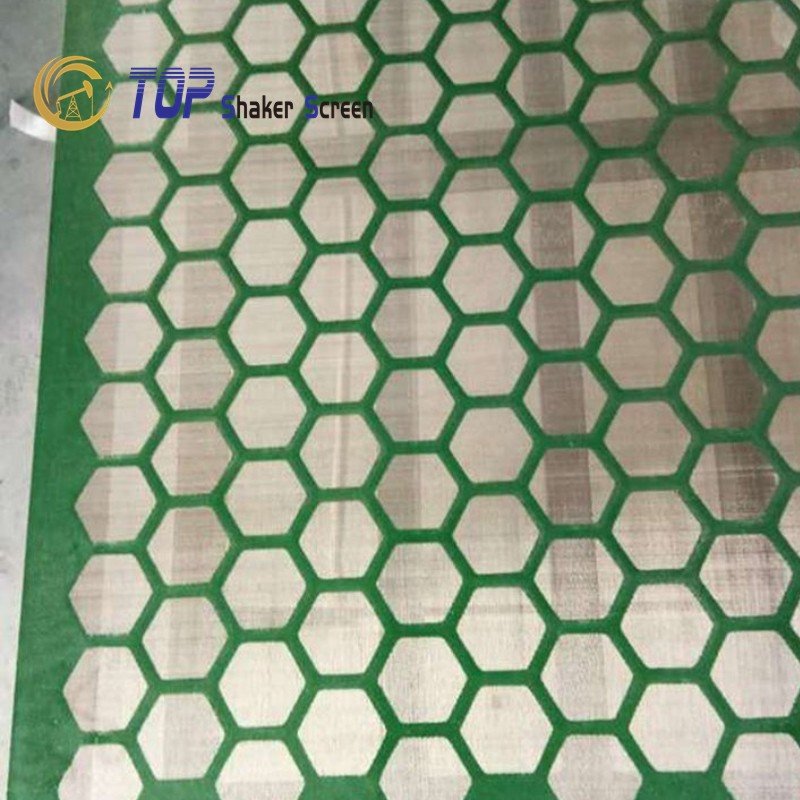

626x710 mm Flat Replacement Shaker Screen for 600 Series

Product Overview & Operating Integrity

TSS-TUP 626 × 710 mm Flat Replacement Shaker Screens (600 Series Compatible) are engineered specifically for high-efficiency dual-pool shale shakers. Built with two or three layers of premium 304 / 316 / 316L stainless steel wire cloth bonded to a high-tensile perforated steel backing plate, these screens provide rigid support and extended operational lifespan under extreme high-G vibration forces.

Engineered for dual-pool shaker decks requiring 6 or 8 panels per machine, our screens interface seamlessly with actuated compression systems to seal the panel perimeter tightly against the basket frame, preventing fluid bypass and maximizing drilling mud recovery. Consistently exported to more than 30 countries across the Middle East, North America, and Central Asia.

Technical Parameters & Manufacturing Specifications

Dimensions: 626 × 710 mm

Mesh Material: Stainless Steel 304 / 316 / 316L

Deck Quantity: 6 or 8 Panels / Shaker Deck

Compliance Standard: API RP 13C (ISO 13501)

Commercial & Packaging Details

Minimum Order Quantity: 10 PCS

Monthly Capacity: 5,000 PCS / Month

Lead Time: 10 – 15 Days

Packaging: 2 PCS/Carton, Plywood Pallet

API RP 13C Designation & Performance Data Table

Item	API RP 13C Designation	Mesh Type	Conductance (kD/mm)	D100 Separation (μm)	Layers	Non-Blank Area (sq.ft)
1	API 325	DF	0.38	44	2 / 3	4.85
2	API 270	DF	0.44	53	2 / 3	4.85
3	API 230	DF	0.71	67	2 / 3	4.85
4	API 200	DX	0.95	78	2 / 3	4.85
5	API 170	DX	1.36	97	2 / 3	4.85
6	API 140	DX	1.92	115	2 / 3	4.85
7	API 120	DX	1.92	120	2 / 3	4.85
8	API 100	DX	2.33	154	2 / 3	4.85
9	API 80	DX	3.09	184	2 / 3	4.85
10	API 70	DX	3.80	221	2 / 3	4.85
11	API 60	DX	4.68	257	2 / 3	4.85
12	API 50	DX	5.50	314	2 / 3	4.85
13	API 45	DX	5.84	360	2 / 3	4.85
14	API 40	DX	6.59	453	2 / 3	4.85
15	API 35	DX	7.06	503	2 / 3	4.85
16	API 20	DF	0.93	821	2 / 3	4.85

Adaptable Equipment & Deck Compatibility

Direct drop-in replacement flat screen for standard 600-type dual-pool solids control equipment:

626 / 616 Series Dual-Pool Shale Shakers
628 / 618 Series High-Capacity Shale Shakers
626 VE / 616 VE (Vapor Extraction) Enclosed Systems
628 VE / 618 VE (Vapor Extraction) Enclosed Systems

Competitive Advantages & Engineering Value

Multi-Layer Wire Mesh Construction: High-tensile SS304/316/316L wire cloth delivers superior abrasion and corrosion resistance in aggressive drilling fluids.
Actuated Perimeter Sealing: Precision steel backing plate interfaces tightly with compression clamping systems to eliminate mud bypass and maximize fluid recovery.
Certified API RP 13C Cut-Points: Guaranteed D100 separation ratings ensure precise fine solids control and extend downstream mud life.
Export Packaging Standards: Boxed in heavy-duty export cartons (2 pcs/box) and packed securely on fumigated wooden pallets.

Need Custom Mesh Sizing, API Recommendations, or Bulk Pricing?

TSS-TUP technical engineers provide 24/7 technical support, deck compatibility checks, and fast factory-direct quotations for global drilling contractors.

Request a Factory Quote → Email Technical Sales

Legal & Technical Disclaimer:
TSS-TUP manufactures independent replacement screens and drilling spare parts. All brand names, model references, and dimensions are used strictly for compatibility and engineering interchangeability purposes.
