1050x697 mm Perforated Metal Backed Replacement Shaker Screen (2000 Series Compatible)

Product Overview & Operating Integrity

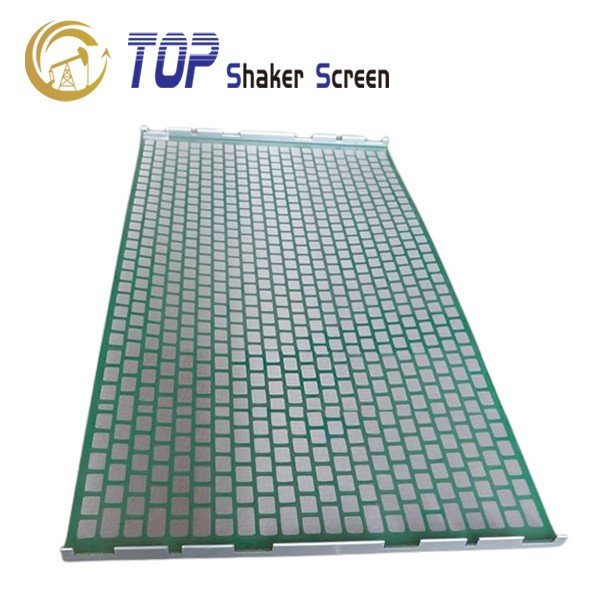

TSS-TUP 1050 × 697 mm Perforated Metal Backed Flat Replacement Shaker Screens are engineered specifically for high-capacity 2000-type shale shakers and mud cleaners. Constructed with two or three layers of 304 / 316 / 316L stainless steel wire mesh bonded directly onto a high-strength perforated steel wear plate, these screens provide unmatched rigidity under severe high-G vibration forces.

The precision rectangular perforation pattern maximizes fluid conductance and offers an expansive non-blanked screening area (8.30 sq.ft), preventing near-size particle blinding while optimizing drilling mud recovery rates. Backed by 24/7 technical support, our replacement screens are exported to over 30 countries worldwide across the Middle East, North America, and Central Asia.

Technical Parameters & Manufacturing Specifications

Commercial & Packaging Details

API RP 13C Designation & Performance Data Table

Adaptable Equipment & Deck Compatibility

Direct drop-in replacement flat wear-plate screen for standard 2000-type solids control equipment:

• 2000-Type 3-Panel Shale Shakers
• 2000-Type 4-Panel Shale Shakers
• 48-30 Series High-Flow Shale Shakers
• 2000-Series Mud Cleaners & Desilter Systems
• High-G Drying Units & AWD Shaker Decks

Competitive Advantages & Engineering Value

• Perforated Steel Backing Plate: Heavy-duty perforated wear plate design ensures zero mesh sagging and eliminates fluid bypass under extreme mud loads.
• Expanded 8.30 sq.ft Open Area: Precision-perforated matrix delivers superior mud conductance and prevents premature near-size mesh plugging.
• Accurate API RP 13C Classification: 100% compliant with ISO 13501 testing standards for exact D100 separation cut-points.
• Export Packaging Standards: Boxed in heavy-duty export cartons (2 pcs/box) and packed on fumigated seaworthy wooden pallets.
