Brandt VSM 300 Scalping Replacement Shaker Screen (Top Deck Standard)

Category： Shale Shaker Screens
INQUIRY EMAIL

Product Description:

Engineering Notice: TSS-TUP manufactures high-performance aftermarket replacement shaker screens engineered specifically for full interchangeability with NOV Brandt VSM 300 scalping (top deck) shale shakers.

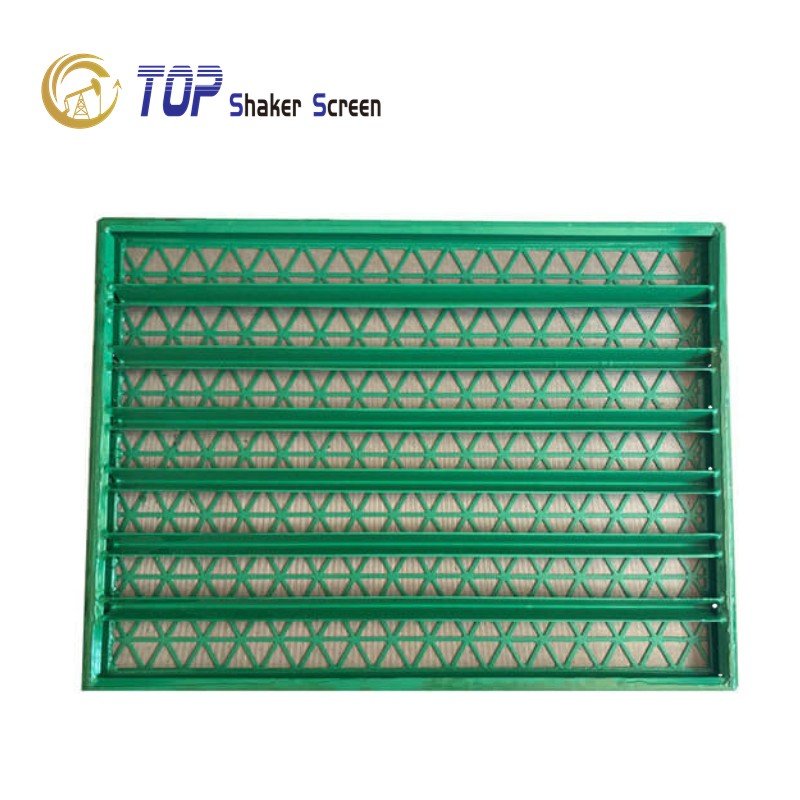

Brandt VSM 300 Scalping Shaker Screen Replacement

Product Overview & Scalping Deck Performance

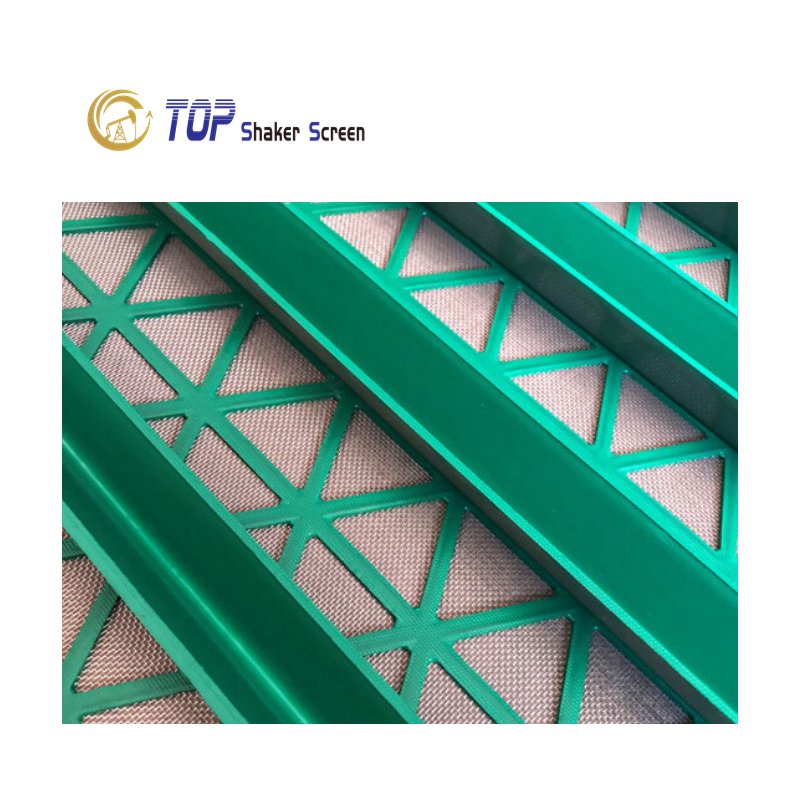

TSS-TUP Brandt VSM 300 Scalping (Top Deck) Replacement Shaker Screens are engineered to handle heavy drilling solids loads directly from the flowline. Installed on the upper scalping deck (3 panels per machine), these screens are constructed with heavy-duty 304 / 316 / 316L stainless steel wire cloth bonded to a reinforced Q235 structural steel backing plate.

Engineered with high fluid conductance configurations ranging from coarse mesh (API 10 / 1957 μm) to fine scalping ratings (API 200), these screens effectively separate oversized drill cuttings and gumbo shale, significantly relieving solids loading on downstream primary and secondary decks. Backed by 24/7 technical support, our replacement screens are exported to over 30 countries across the Middle East, North America, and Central Asia.

Technical Parameters & Manufacturing Specifications

Mesh Material: Stainless Steel 304 / 316 / 316L

Frame Backing: Heavy-Duty Q235 Perforated Steel

Deck Position: Upper Scalping Deck (3 Panels/Deck)

Working Life & Warranty: 400 – 450 Hours | 1-Year Warranty

Commercial & Packaging Details

Minimum Order Quantity: 10 PCS

Monthly Production Capacity: 5,000 PCS / Month

Lead Time: 10 – 15 Days

Packaging: Paper Carton & Plywood Pallet

API RP 13C Scalping Designation & Conductance Data Table

Item	API RP 13C Designation	Mesh Type	Conductance (kD/mm)	D100 Separation (μm)	Layers	Non-Blank Area (sq.ft)
1	API 200	XR	1.32	80.1	1 / 2 / 3	4.60
2	API 170	XR	1.34	94.5	1 / 2 / 3	4.60
3	API 140	XR	1.89	106.5	1 / 2 / 3	4.60
4	API 120	XR	1.89	134.7	1 / 2 / 3	4.60
5	API 100	XR	2.66	164.0	1 / 2 / 3	4.60
6	API 80	XR	2.76	193.0	1 / 2 / 3	4.60
7	API 70	XR	3.33	203.0	1 / 2 / 3	4.60
8	API 60	XR	4.10	268.0	1 / 2 / 3	4.60
9	API 50	XR	5.17	285.0	1 / 2 / 3	4.60
10	API 40	XR	8.64	439.0	1 / 2 / 3	4.60
11	API 35	XR	9.69	538.0	1 / 2 / 3	4.60
12	API 20	XR	10.88	809.0	1 / 2 / 3	4.60
13	API 10	XR	40.92	1957.0	1 / 2 / 3	4.60

Adaptable Equipment & Deck Compatibility

Direct drop-in replacement scalping screen for NOV Brandt VSM 300 solids control equipment:

Brandt VSM 300 Shale Shakers (Upper Scalping Deck - 3 Screens/Deck)
Brandt VSM 300 Pre-Separation Vibrating Units
Brandt VSM 300 Mud Cleaners (Scalping Stage)

Competitive Advantages & Engineering Value

High-Conductance Coarse Screening: Specifically engineered for handling massive volumes of gumbo and oversized rock cuttings right from the wellbore.
Reinforced Steel Wear Backing: Heavy-duty perforated backing plate withstands direct impact from high-velocity mud discharge without deformation.
API RP 13C Compliant Cut-Points: Certified D100 separation performance from API 10 (1957 μm) to API 200 (80 μm).
Long Service Life: Corrosion-resistant SS304/316L wire mesh ensures 400–450 hours of reliable operating life in corrosive mud environments.

Need Custom Mesh Sizing, API Recommendations, or Bulk Pricing?

TSS-TUP technical engineers provide 24/7 technical support, deck compatibility checks, and fast factory-direct quotations for global drilling contractors.

Request a Factory Quote → Email Technical Sales

Legal & Technical Disclaimer:
[1] Derrick, FLC, and Pyramid are registered trademarks of Derrick Corporation.
[2] Brandt and NOV are registered trademarks of National Oilwell Varco.
[3] MI-Swaco and Mongoose are registered trademarks of Schlumberger Limited.
* All manufacturer names and part numbers are referenced solely for engineering compatibility and interchangeability purposes.
