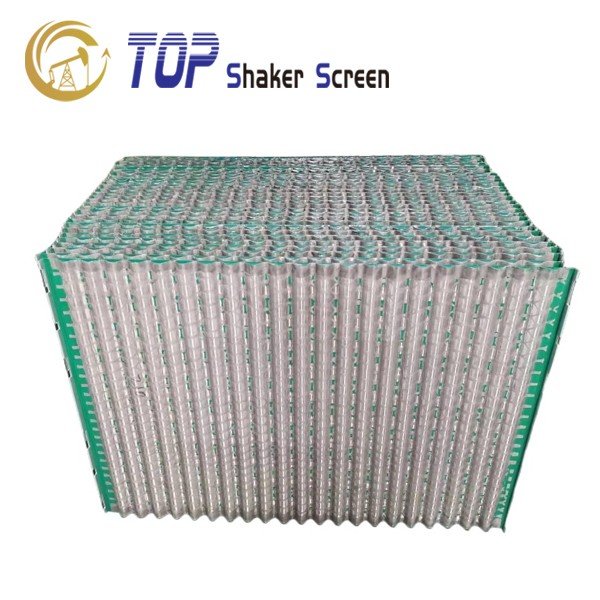

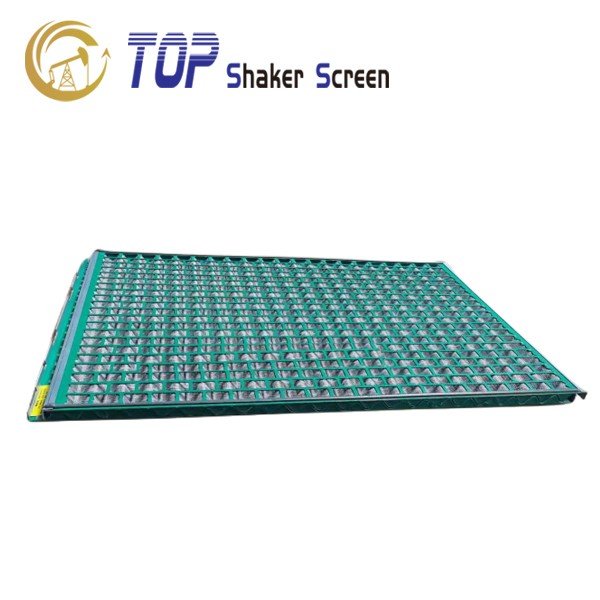

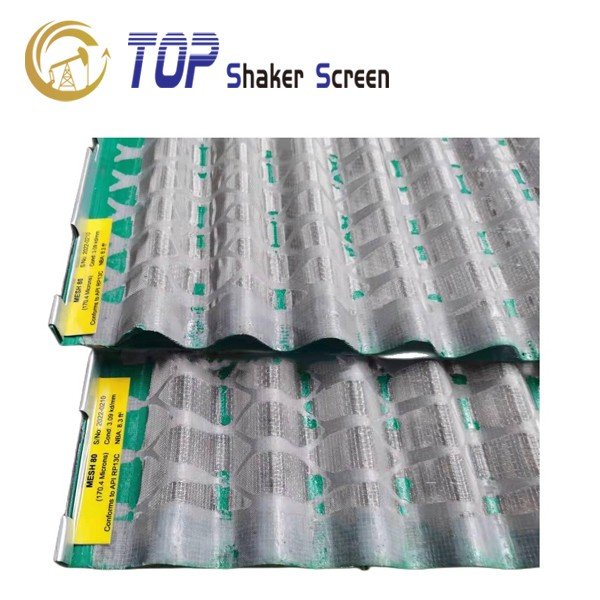

TSS-TUP TP-MD-2/3 Replacement Shaker Screens are engineered with advanced composite frame technology specifically designed for multi-deck shale shakers, including dual flat-deck and triple-decker solids control systems. Constructed with multi-layered 304 / 316 / 316L stainless steel wire cloth bonded to a high-strength composite PT frame, these screens provide maximum fluid handling capacity and extended screen life in both onshore and offshore drilling operations.
The reinforced composite structure eliminates corrosion, minimizes friction against the deck plate, and maintains uniform mesh tension under heavy high-G vibration loads. Consistently exported to more than 30 countries across the Middle East, North America, and Central Asia.
| D100 Cut Point (μm) | API Designation | D100 Cut Point (μm) | API Designation |
|---|---|---|---|
| > 780.0 – 925.0 | API 20 | > 165.0 – 196.0 | API 80 |
| > 655.0 – 780.0 | API 25 | > 137.5 – 165.0 | API 100 |
| > 550.0 – 655.0 | API 30 | > 116.5 – 137.5 | API 120 |
| > 462.5 – 550.0 | API 35 | > 98.0 – 116.5 | API 140 |
| > 390.0 – 462.5 | API 40 | > 82.5 – 98.0 | API 170 |
| > 327.5 – 390.0 | API 45 | > 69.0 – 82.5 | API 200 |
| > 275.0 – 327.5 | API 50 | > 58.0 – 69.0 | API 230 |
| > 231.0 – 275.0 | API 60 | > 49.0 – 58.0 | API 270 |
| > 196.0 – 231.0 | API 70 | > 41.5 – 49.0 | API 325 |
Direct drop-in replacement composite frame screens for multi-deck shale shakers:
TSS-TUP technical engineers provide 24/7 technical support, deck compatibility checks, and fast factory-direct quotations for global drilling contractors.
Contact our engineers for exact part numbers or API RP 13C mesh size matching.
