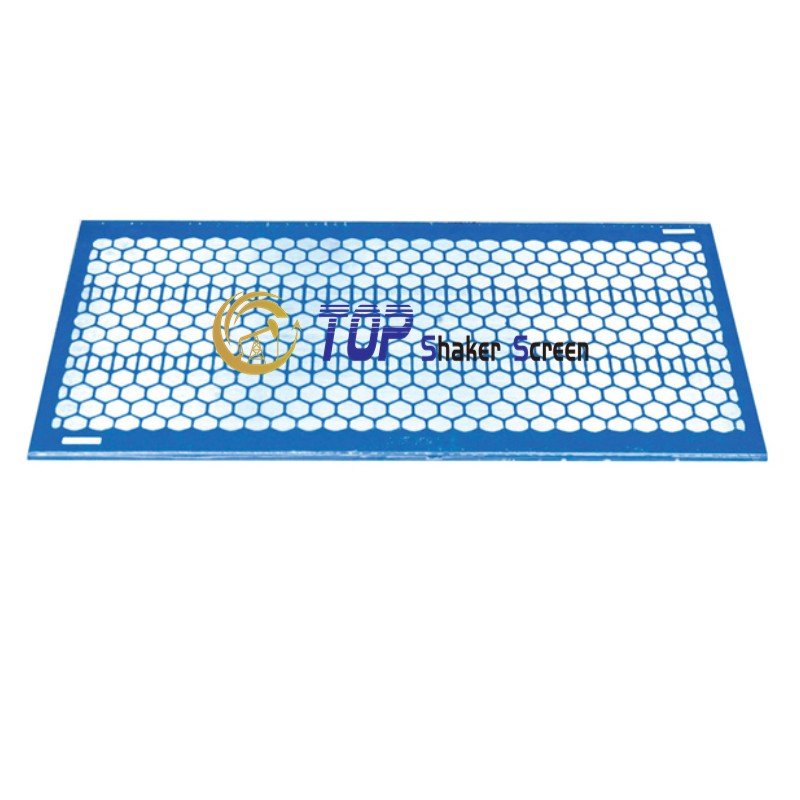

Brandt King Cobra / Hybrid Replacement Shaker Screen (14.4 sq.ft Standard)

Product Item : Brandt King Cobra/Hybrid
Category： Shale Shaker Screens
Attachment INQUIRY EMAIL

Product Description:

Engineering Notice: TSS-TUP produces premium aftermarket replacement screens engineered specifically for full interchangeability with NOV Brandt King Cobra, King Cobra Plus, and Hybrid shale shakers.

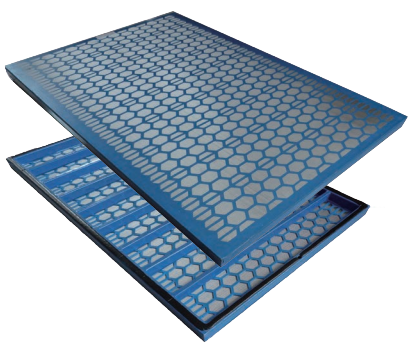

Brandt King Cobra Hybrid Replacement Shaker Screen

Product Overview & Operating Performance

TSS-TUP King Cobra & Hybrid Series Replacement Shaker Screens are engineered to deliver maximum fluid handling capacity, extended working life, and superior solids separation efficiency. Constructed with multi-layered 304 / 316 / 316L stainless steel wire cloth bonded to a high-tensile perforated steel backing plate, these screens provide rigid resistance against severe high-G vibration forces.

Featuring an expansive non-blanked screening area (14.4 sq.ft), our screens ensure high fluid throughput and prevent premature near-size particle blinding in demanding oil-based, synthetic, and water-based drilling muds. Backed by 24/7 technical support, our replacement screens are exported to over 30 countries across the Middle East, North America, and Central Asia.

Technical Parameters & Manufacturing Specifications

Mesh Material: Stainless Steel 304 / 316 / 316L

Frame Backing: Reinforced Q235 Steel Plate

Screen Cloth Type: XR / XL High-Conductance Mesh

Working Life & Warranty: 400 – 450 Hours | 1-Year Warranty

Commercial & Packaging Details

Minimum Order Quantity: 10 PCS

Monthly Capacity: 5,000 PCS / Month

Lead Time: 10 – 15 Days

Packaging: Paper Carton & Plywood Pallet

API RP 13C Designation & Conductance Data Table

Item	API RP 13C Designation	Mesh Type	Conductance (kD/mm)	D100 Separation (μm)	Layers	Non-Blank Area (sq.ft)
1	API 325	XR / XL	0.33	44	2 / 3	14.40
2	API 270	XR / XL	0.42	54	2 / 3	14.40
3	API 230	XR / XL	0.45	61	2 / 3	14.40
4	API 200	XR / XL	0.62	72	2 / 3	14.40
5	API 170	XR / XL	1.02	86	2 / 3	14.40
6	API 140	XR / XL	1.03	106	2 / 3	14.40
7	API 120	XR / XL	1.40	134	2 / 3	14.40
8	API 100	XR / XL	1.67	159	2 / 3	14.40
9	API 80	XR / XL	2.36	193	2 / 3	14.40
10	API 70	XR / XL	2.78	230	2 / 3	14.40
11	API 60	XR / XL	3.35	274	2 / 3	14.40
12	API 50	XL	4.91	296	2 / 3	14.40
13	API 35	XL	9.13	529	2 / 3	14.40
14	API 20	XL	11.77	781	2 / 3	14.40

Adaptable Equipment & Deck Compatibility

Direct drop-in replacement flat screen for NOV Brandt linear and balanced elliptical shale shakers:

Brandt King Cobra Shale Shakers (4-Panel Decks)
Brandt King Cobra Plus Dual Motion Shakers
Brandt Hybrid High-Capacity Linear Motion Shakers
Brandt King Cobra Mud Cleaners & Desilter Systems

Competitive Advantages & Engineering Value

Corrosion-Resistant Stainless Wire Cloth: SS304/316/316L woven mesh cloth ensures maximum wear life in heavy oil-based and water-based drilling muds.
High Fluid Conductance: Flat panel design provides 14.40 sq.ft effective non-blanked area to maintain consistent flow and prevent mud buildup.
Certified Separation Cut-Points: 100% compliant with API RP 13C / ISO 13501 testing standards for accurate solids separation.
Rigid Perforated Backing: High-tensile Q235 structural steel backing plate eliminates panel distortion under aggressive high-G loads.

Need Custom Mesh Sizing, API Recommendations, or Bulk Pricing?

TSS-TUP technical engineers provide 24/7 technical support, deck compatibility checks, and fast factory-direct quotations for global drilling contractors.

Request a Factory Quote → Email Technical Sales

Legal & Technical Disclaimer:
[1] Derrick, FLC, and Pyramid are registered trademarks of Derrick Corporation.
[2] Brandt and NOV are registered trademarks of National Oilwell Varco.
[3] MI-Swaco and Mongoose are registered trademarks of Schlumberger Limited.
* All manufacturer names and part numbers are referenced solely for engineering compatibility and interchangeability purposes.
