1050x697 mm Flat Replacement Shaker Screen (2000 Series Compatible)

1050x697 mm Flat Replacement Shaker Screen (2000 Series Compatible)

Product Item : Derrock FLC 2000/48-30 PWP
Category： Shale Shaker Screens
Attachment INQUIRY EMAIL

Product Description:

Engineering Notice: TSS-TUP is an independent manufacturer specializing in high-performance aftermarket replacement screens and drilling solids control spare parts.

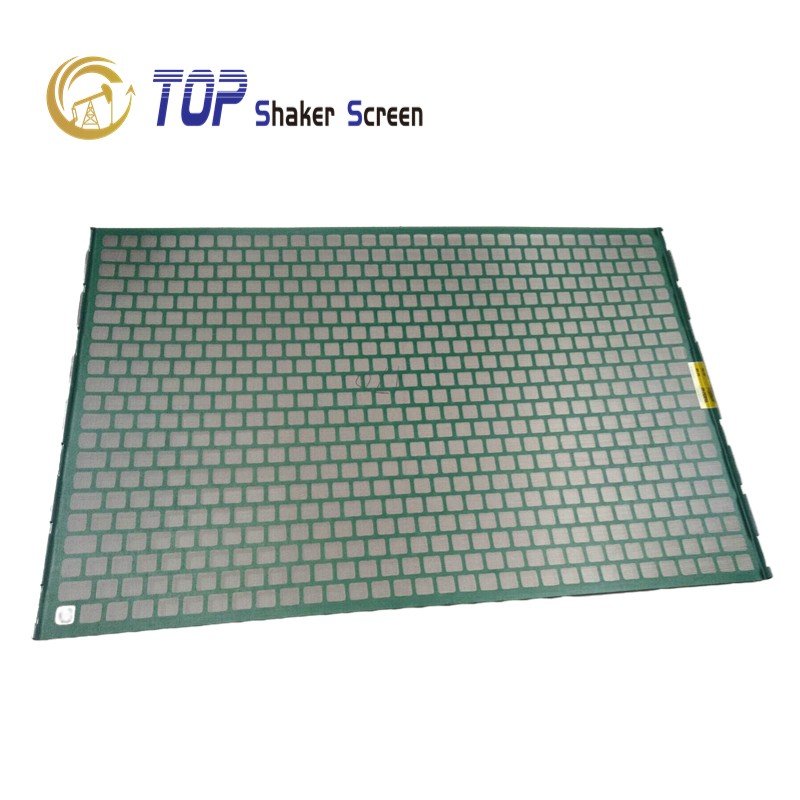

1050x697 mm Flat Type 2000 Series Replacement Shaker Screen

Product Overview & Operating Integrity

TSS-TUP 1050 × 697 mm Flat Replacement Shaker Screens (2000 Series Compatible) are engineered to deliver high fluid throughput, extended working life, and superior solids separation efficiency. Constructed with multi-layered 304 / 316 / 316L stainless steel wire cloth bonded to a high-tensile perforated steel backing plate, these screens provide rigid resistance against severe high-G vibration forces.

Featuring an optimized flat panel design with a large non-blanked screening area (8.30 sq.ft), our screens prevent near-size particle plugging and maintain consistent fluid conductance under heavy mud loads. Consistently exported to more than 30 countries across the Middle East, North America, and Central Asia.

Technical Parameters & Manufacturing Specifications

Dimensions: 1050 × 697 mm

Mesh Material: Stainless Steel 304 / 316 / 316L

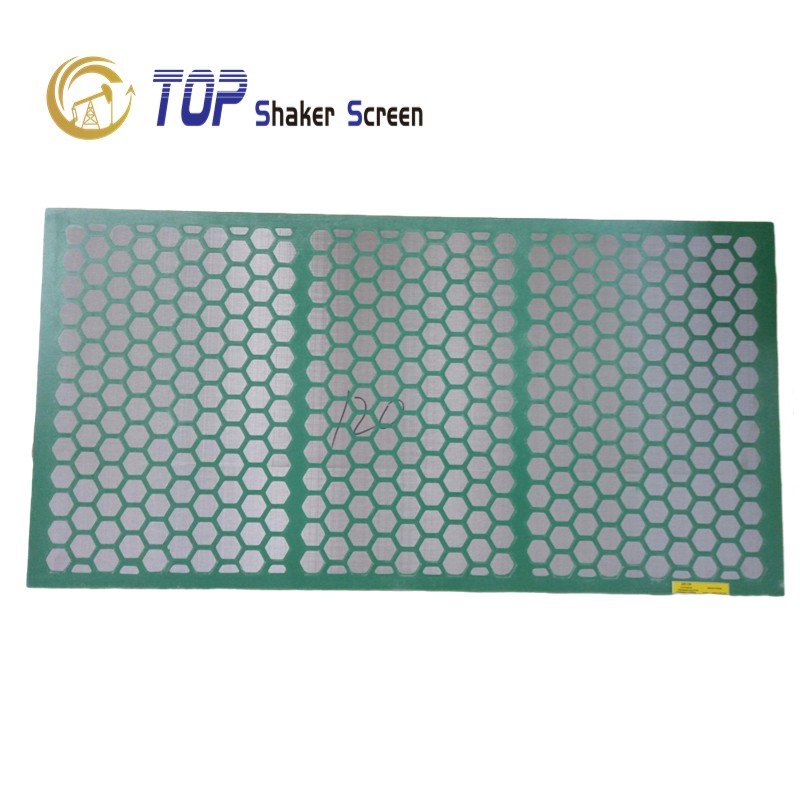

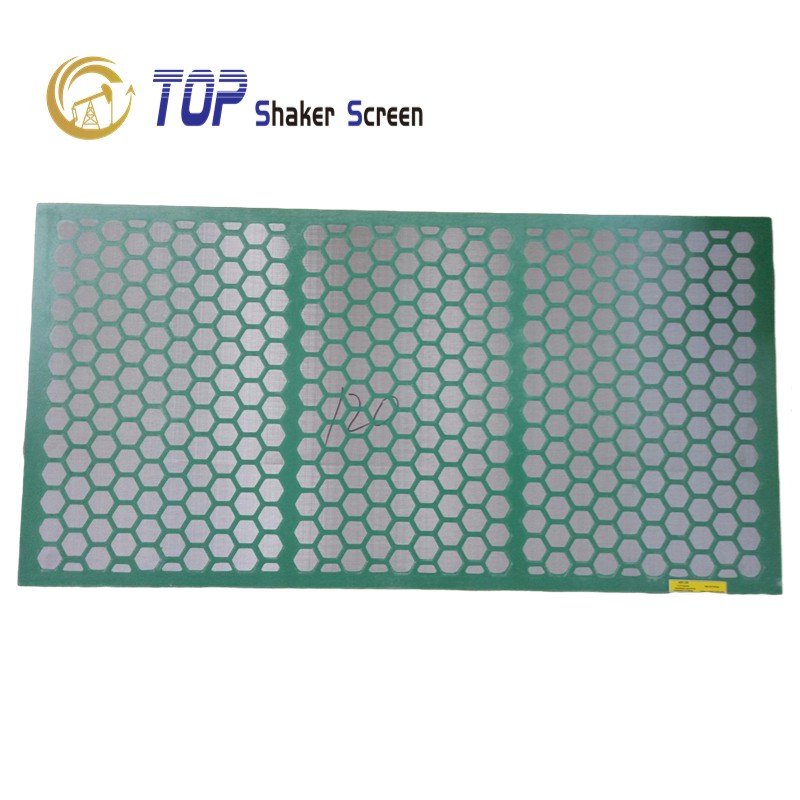

Perforated Pattern: Rectangular / Hexagonal Backing

Compliance Standard: API RP 13C (ISO 13501)

Commercial & Packaging Details

Minimum Order Quantity: 10 PCS

Monthly Capacity: 5,000 PCS / Month

Lead Time: 10 – 15 Days

Packaging: 4 PCS/Carton, Plywood Pallet

API RP 13C Designation & Performance Data Table

Item	API RP 13C Designation	Mesh Type	Conductance (kD/mm)	D100 Separation (μm)	Layers	Non-Blank Area (sq.ft)
1	API 325	DF	0.39	44	2 / 3	8.30
2	API 270	DF	0.67	57	2 / 3	8.30
3	API 230	DF	0.71	68	2 / 3	8.30
4	API 200	DX	1.32	73	2 / 3	8.30
5	API 170	DX	1.34	83	2 / 3	8.30
6	API 140	DX	1.89	101	2 / 3	8.30
7	API 120	DX	1.89	134	2 / 3	8.30
8	API 100	DX	2.66	164	2 / 3	8.30
9	API 80	DX	2.76	193	2 / 3	8.30
10	API 70	DX	3.33	203	2 / 3	8.30
11	API 60	DX	4.10	268	2 / 3	8.30
12	API 50	DX	5.17	285	2 / 3	8.30
13	API 45	DX	5.84	360	2 / 3	8.30
14	API 40	DX	8.64	439	2 / 3	8.30
15	API 35	DX	9.69	538	2 / 3	8.30
16	API 20	DF	10.88	809	2 / 3	8.30

Adaptable Equipment & Deck Compatibility

Direct drop-in replacement flat screen for standard 2000-type solids control equipment:

2000-Type 3-Panel Shale Shakers
2000-Type 4-Panel Shale Shakers
48-30 Series High-Flow Shale Shakers
2000-Series Mud Cleaners & Desilter Units
High-G Drying Shakers & AWD Systems

Competitive Advantages & Engineering Value

High-Tensile Wire Mesh Cloth: Multi-layer SS304/316 cloth provides exceptional wear life and corrosion resistance in abrasive drilling fluids.
Large Effective Screening Area: Engineered 8.30 sq.ft non-blanked area maximizes volume throughput and minimizes near-size blinding.
Precise API RP 13C Separation: Certified D100 separation ratings ensure maximum solids removal and drilling fluid conservation.
Rigid Structural Backing: Precision-perforated structural steel plate provides reliable support under severe high-G vibration loads.

Need Custom Mesh Sizing, API Recommendations, or Bulk Pricing?

TSS-TUP technical engineers provide 24/7 technical support, deck compatibility checks, and fast factory-direct quotations for global drilling contractors.

Request a Factory Quote → Email Technical Sales

Legal & Technical Disclaimer:
TSS-TUP manufactures independent replacement screens and drilling spare parts. All brand names, model references, and dimensions are used strictly for compatibility and engineering interchangeability purposes.
