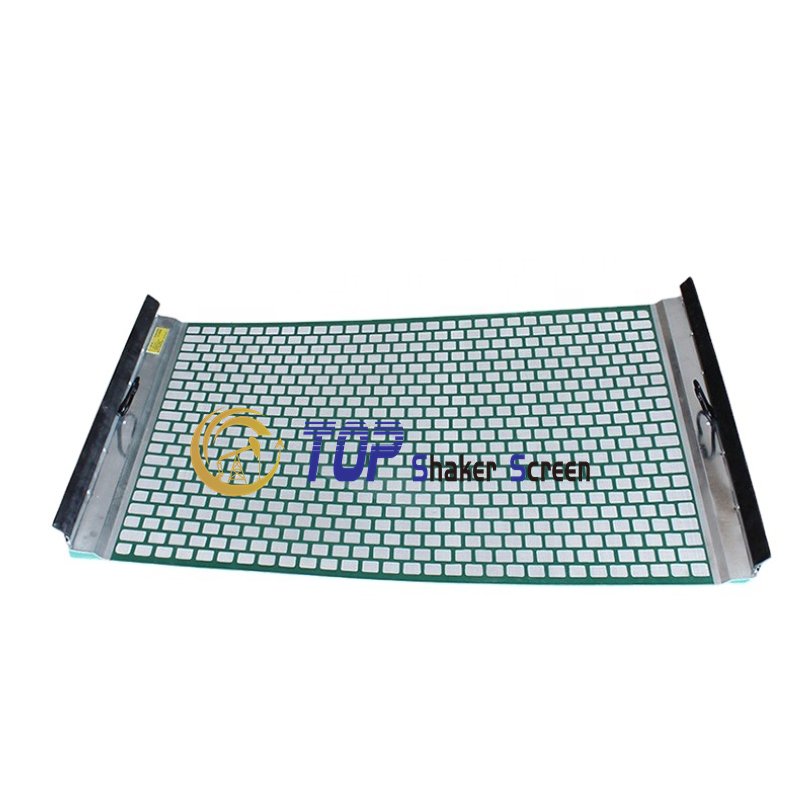

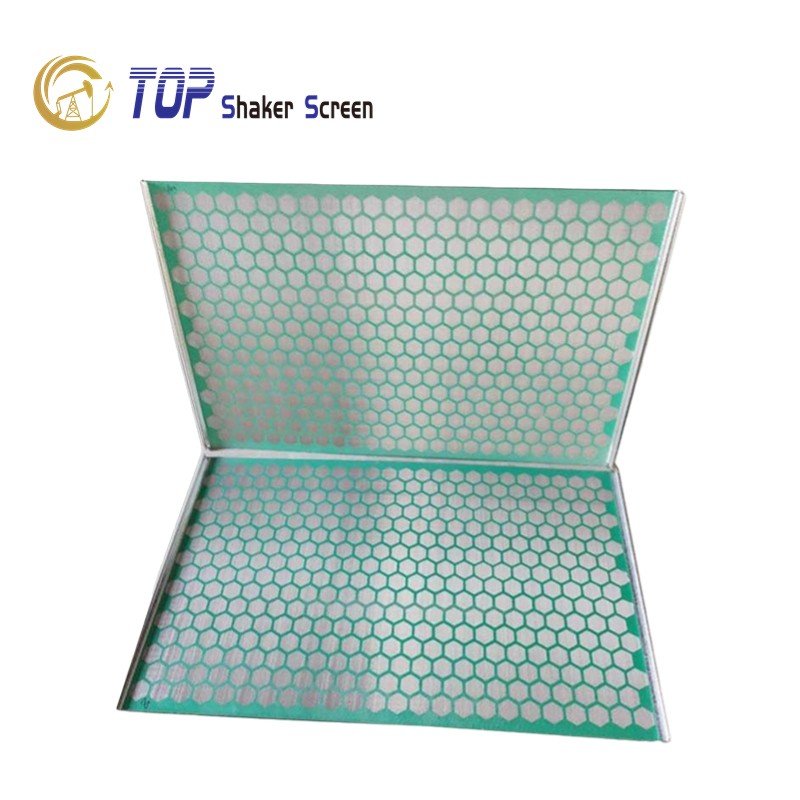

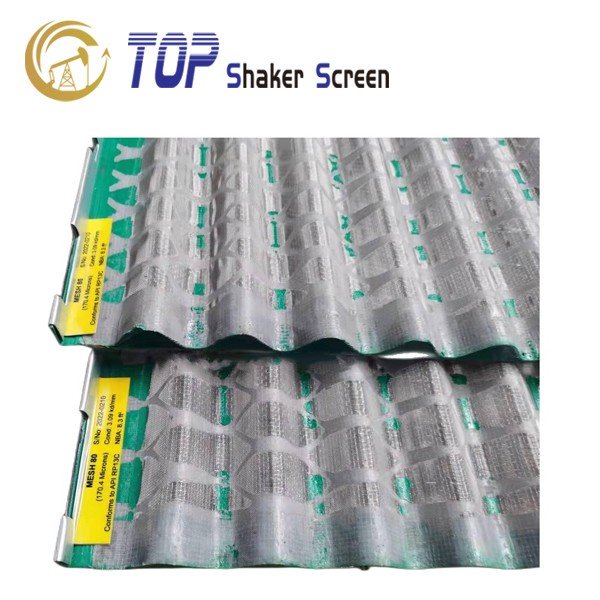

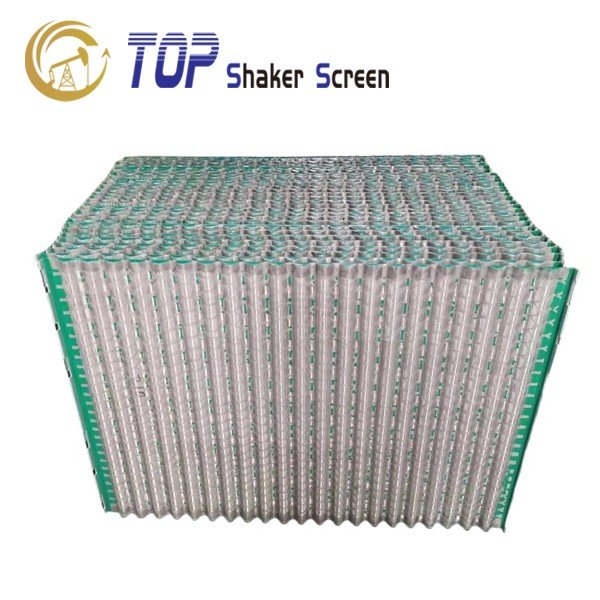

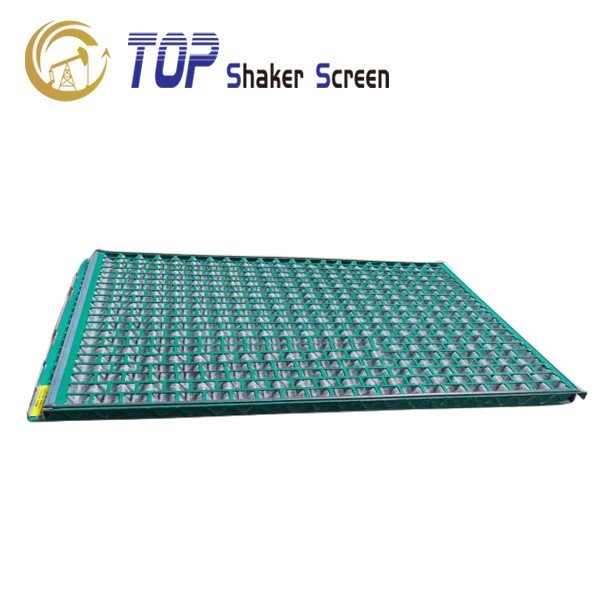

TSS-TUP MD-Series Compatible Composite Frame Shaker Screens are engineered specifically for high-capacity dual-deck and triple-deck shale shakers used in demanding onshore and offshore drilling operations. Constructed with multi-layered 304 / 316 / 316L stainless steel wire cloth bonded to a high-strength composite/PT frame structure, these screens maximize non-blanked screening area (5.3 sq.ft) while reducing operating weight for rapid changeouts.
The reinforced composite frame significantly reduces mechanical friction against the deck plate, eliminates internal corrosion, and withstands harsh high-G vibration forces. Backed by 24/7 technical support, our replacement screens are exported to over 30 countries worldwide across the Middle East, North America, and Central Asia.
| Item | API RP 13C | Conductance Number (kD/mm) | D100 Separation (μm) | Non-Blank Area (sq.ft) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| XR | XL | HC | MG | XR | XL | HC | MG | |||
| 1 | API 325 | 0.39 | 0.35 | / | / | 44 | 43 | / | / | 5.3 |
| 2 | API 270 | / | 0.44 | / | / | / | 51 | / | / | 5.3 |
| 3 | API 230 | / | 0.55 | 0.79 | / | / | 58 | 62 | / | 5.3 |
| 4 | API 200 | 0.81 | 0.91 | 1.10 | / | 72 | 74 | 74 | / | 5.3 |
| 5 | API 170 | 0.84 | 1.18 | / | / | 86 | 92 | / | / | 5.3 |
| 6 | API 140 | 0.99 | 1.48 | / | / | 110 | 103 | / | / | 5.3 |
| 7 | API 120 | 1.40 | 1.64 | 1.61 | / | 119 | 126 | 120 | / | 5.3 |
| 8 | API 100 | 1.65 | 2.17 | 1.96 | / | 147 | 141 | 142 | / | 5.3 |
| 9 | API 80 | 2.00 | 2.54 | / | / | 174 | 168 | / | / | 5.3 |
| 10 | API 70 | 2.26 | 3.06 | 3.13 | / | 227 | 219 | 201 | / | 5.3 |
| 11 | API 60 | 4.12 | 4.11 | 3.80 | / | 275 | 264 | 238 | / | 5.3 |
| 12 | API 50 | / | 5.60 | / | / | / | 302 | / | / | 5.3 |
| 13 | API 45 | / | / | / | 4.61 | / | / | / | 385 | 5.3 |
| 14 | API 35 | / | 9.97 | / | 10.13 | / | 530 | / | 545 | 5.3 |
| 15 | API 25 | / | 14.69 | / | / | / | 779 | / | / | 5.3 |
Direct drop-in replacement composite frame screens for standard multi-deck shakers:
TSS-TUP technical engineers provide 24/7 technical support, deck compatibility checks, and fast factory-direct quotations for global drilling contractors.
Contact our engineers for exact part numbers or API RP 13C mesh size matching.
