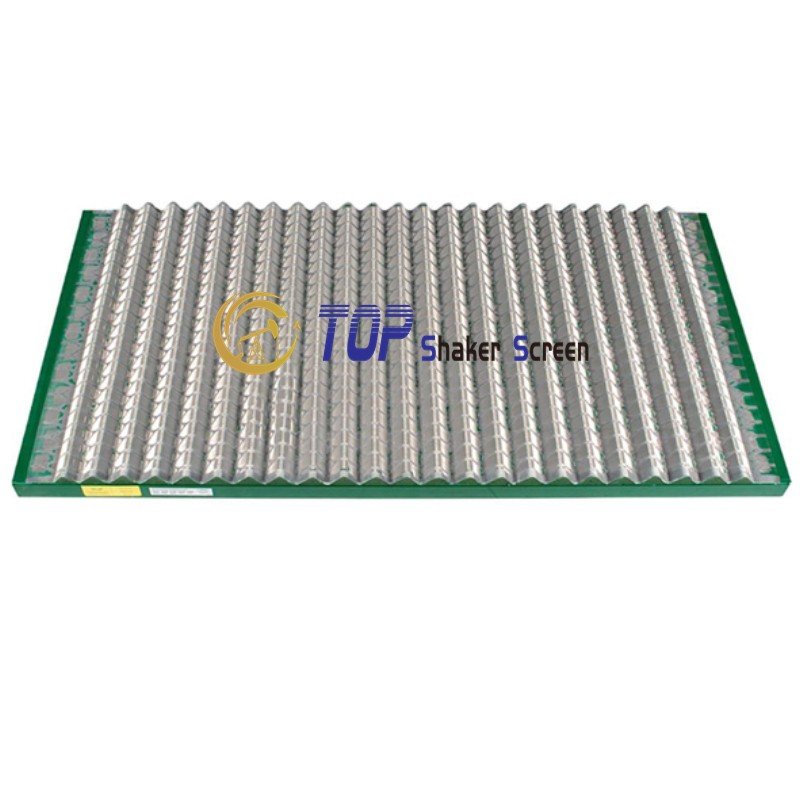

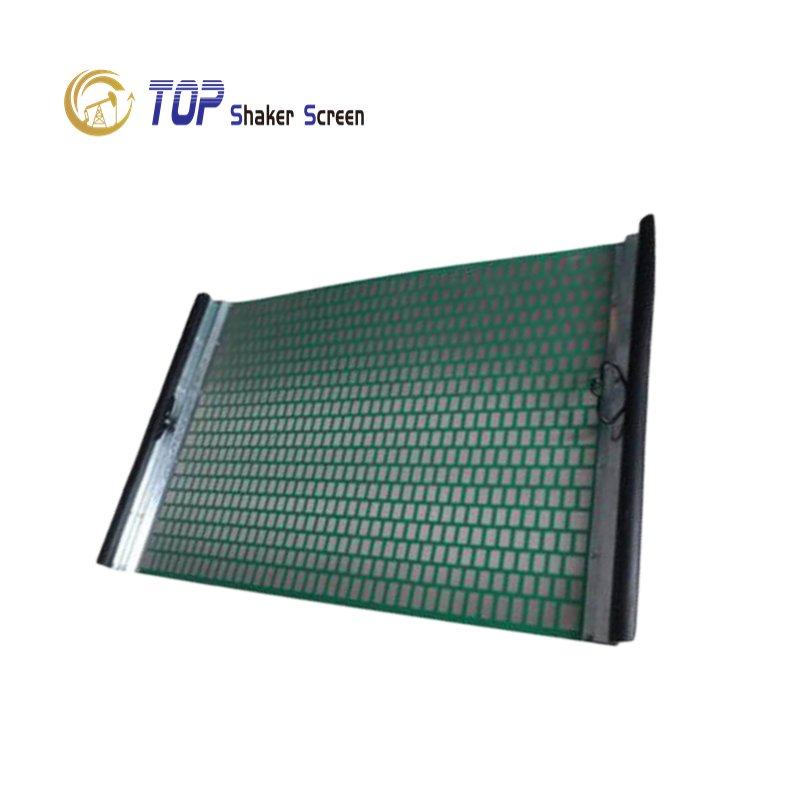

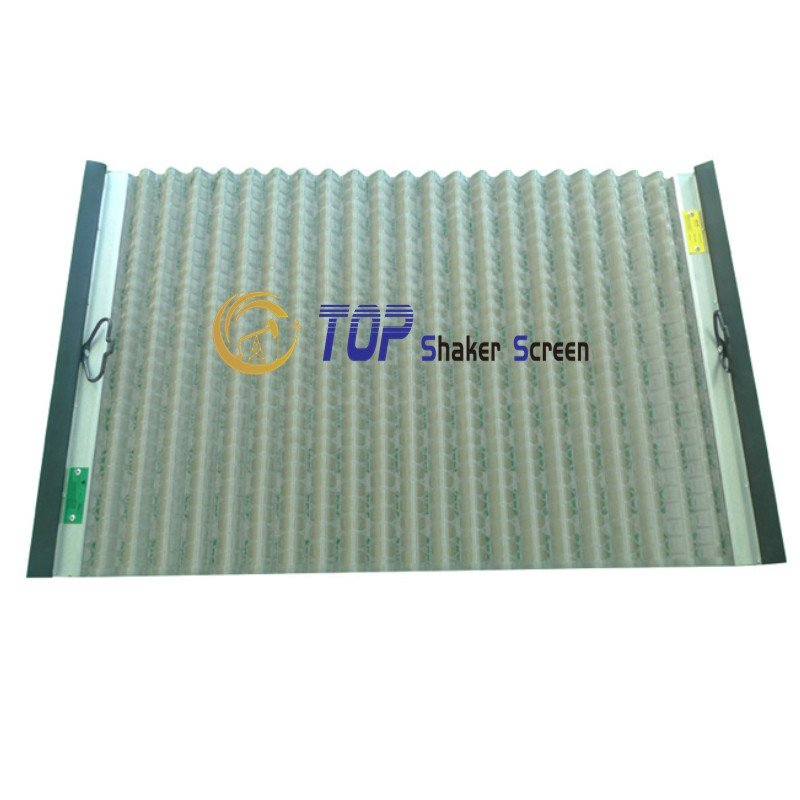

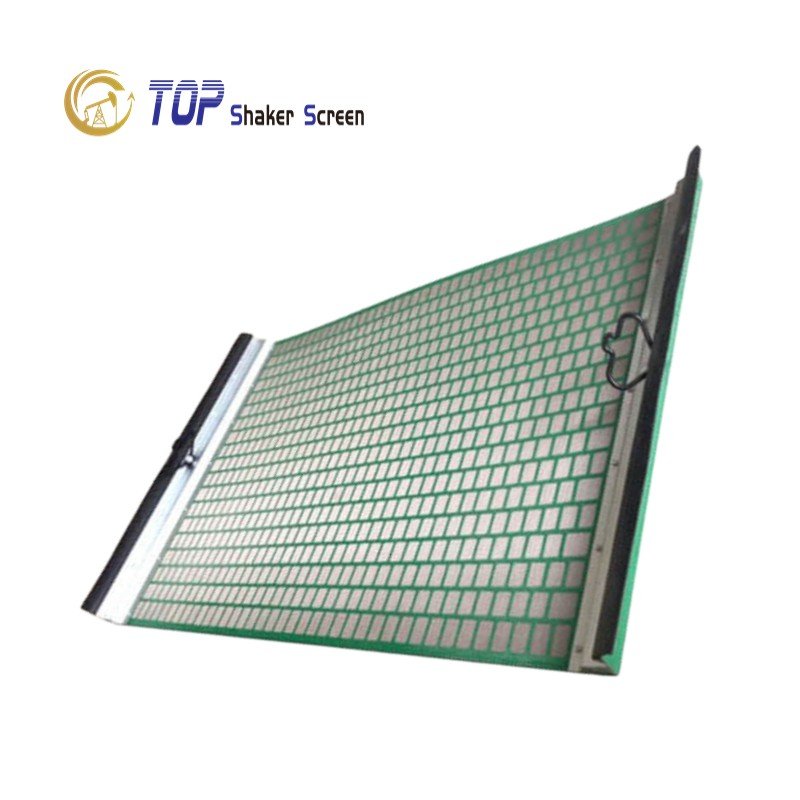

626x710 mm Flat Replacement Shaker Screen (500 Series Compatible)

626x710 mm Flat Replacement Shaker Screen (500 Series Compatible)

Product Item : Derrock Hyperpool PWP
Category： Shale Shaker Screens
Attachment INQUIRY EMAIL

Product Description:

Engineering Notice: TSS-TUP is an independent manufacturer specializing in high-performance aftermarket shaker screens and drilling solids control solutions.

1050x697 mm Flat Type 500 Series Replacement Shaker Screen

Product Overview & Operating Integrity

TSS-TUP 1050 × 697 mm Flat Replacement Shaker Screens (500 Series Compatible) are engineered to deliver high fluid throughput, extended operating life, and exceptional mud solids separation efficiency. Constructed with multi-layered 304 / 316 stainless steel wire mesh cloth bonded to a high-tensile perforated steel backing plate, these screens provide rigid resistance against high-G vibration forces.

Featuring an intuitive single-side quick-lock tension system, our replacement screens reduce panel installation downtime while ensuring a tight perimeter seal to prevent mud bypass. Consistently exported to more than 30 countries across the Middle East, North America, and Central Asia.

Technical Parameters & Manufacturing Specifications

Dimensions: 626 × 710 mm

Mesh Material: Stainless Steel 304 / 316

Frame Structure: Perforated Steel Plate Backed

Compliance Standard: API RP 13C (ISO 13501)

Commercial & Packaging Details

Minimum Order Quantity: 10 PCS

Monthly Capacity: 5,000 PCS / Month

Lead Time: 10 – 15 Days

Packaging: 2 PCS/Carton, Plywood Pallet

API RP 13C Designation & Performance Specifications

API Mesh Designation	D100 Separation Range (μm)	Conductance (kD/mm)	Mesh Type	Layer Construction
API 40	390.0 – 467.5	3.25	XR / XL	2 / 3 Layers
API 60	230.0 – 275.0	2.15	XR / XL	2 / 3 Layers
API 80	165.0 – 195.0	1.60	XR / XL	2 / 3 Layers
API 100	137.5 – 165.0	1.25	XR / XL	2 / 3 Layers
API 140	98.0 – 116.5	0.85	XR / XL	2 / 3 Layers
API 170	82.5 – 98.0	0.68	XR / XL	2 / 3 Layers
API 200	69.0 – 81.5	0.48	XR / XL	2 / 3 Layers
API 325	41.5 – 49.0	0.28	XR / XL	2 / 3 Layers

Adaptable Equipment & Deck Compatibility

Direct drop-in replacement flat screen for standard 500-type shaker series:

503 / 504 Standard Flow Shale Shakers
503 / 504 Drying Shale Shakers
513 / 514 High-Capacity Shale Shakers
513 VE / 514 VE (Vapor Extraction) Enclosed Systems

Competitive Advantages & Engineering Value

Premium Multi-Layer Wire Mesh: High-tensile SS304/316 cloth delivers exceptional resistance to corrosion, high temperatures, and abrasive drilling fluids.
Accurate API RP 13C Separation: Certified D100 separation performance ensures precise solids control and maximizes mud recycling.
Optimized Effective Screening Area: Precision-perforated backing plate provides 4.05 sq.ft non-blanked area for high volume mud conductance.
Export Standard Packaging: Boxed in heavy-duty cartons (2 pcs/box) and packed on fumigated seaworthy wooden pallets.

Need Custom Mesh Sizing, API Recommendations, or Bulk Pricing?

TSS-TUP technical engineers provide 24/7 technical support, deck compatibility checks, and fast factory-direct quotations for global drilling contractors.

Request a Factory Quote → Email Technical Sales

Legal & Technical Disclaimer:
TSS-TUP manufactures independent replacement screens and drilling spare parts. All brand names, model references, and dimensions are used strictly for compatibility and engineering interchangeability purposes.
