Explosion-Proof Vibrator Electric Motor (Frame 60) for Shale Shakers
Direct Drop-in Replacement for Italvibras CDX 18-5900 & M-I SWACO P/N: EM3C00110 | Pre-Order Available
Order Status: Pre-Order Item (Made-to-Order)
Castings, stators, and explosion-proof housings are maintained in stock. Standard assembly, dynamic balancing, and factory test lead time is 7–15 working days. Priority international airfreight and bulk container shipping are fully supported.
Engineering Overview & Fitment
Designed as a direct drop-in replacement for Italvibras CDX 18-5900 and M-I SWACO P/N: EM3C00110, this heavy-duty explosion-proof three-phase asynchronous vibrator motor powers solids control shale shakers in harsh onshore and offshore drilling operations. Engineered strictly to standard Frame 60 (GR 60) mechanical dimensions, it mounts directly onto shaker basket support channels without structural modification, re-drilling, or welding.
Key Product Highlights & Engineering Benefits
- 100% Direct Drop-in Fitment: Standard Frame 60 footprint featuring 155 mm × 225 mm bolt hole centers (4 × Φ 22 mm clearance holes for M20 bolts), aligning precisely with M-I SWACO MONGOOSE PRO and MEERKAT screen baskets for quick rig-site turnaround.
- Vibration-Duty Spherical Roller Bearings: Equipped with heavy-duty spherical roller bearings with machined solid brass cages, built to endure continuous high-frequency alternating centrifugal loads of up to 7.5G ~ 8.0G.
- IP66 Mud & Washdown Ingress Protection: Double-lip radial shaft oil seals coupled with weather-resistant O-rings prevent intrusion from synthetic, oil-based, and water-based drilling muds, as well as high-pressure rig washdown guns.
- Class H High-Temperature Insulation: Vacuum Pressure Impregnation (VPI) with pure copper windings delivers Class H (180°C) insulation, keeping operating temperature rises within Class F limits to prevent coil burnouts under desert ambient heat up to +55°C.
- Linear Stepless Force Adjustment: Laser-graduated eccentric weight dials at both shaft ends allow quick mechanical tuning from 0% to 100% force output, accommodating high-mesh fine screen separation and high-density mud throughput.
Technical Specifications
| Technical Parameter | Specification & Engineering Data | Notes & Compliance |
|---|---|---|
| Product Type | Explosion-Proof 3-Phase Induction Vibrator Motor | Dedicated shale shaker drive |
| OEM Cross-Reference | Italvibras CDX 18-5900 / M-I SWACO EM3C00110 | Form, fit, and function equivalent |
| Compatible Shakers | M-I SWACO MONGOOSE PRO, MEERKAT, & Frame 60 decks | Direct OEM beam mounting |
| Frame Designation | Frame 60 (GR 60) | Standard 4-bolt base pattern |
| Mounting Pitch (D × E) | 155 mm × 225 mm (Axial distance × Transverse width) | Standard Frame 60 catalog specification |
| Bolt Holes & Fasteners | 4 × Φ 22 mm clearance holes, for M20 high-tensile bolts | Grade 8.8 / 10.9 hardware recommended |
| Rated Output Power | 1.5 kW (~2.0 HP), Duty: S1 Continuous | Full-load continuous operation |
| Power Supply & Speed | 50 Hz / 1500 RPM (4-Pole) | 60 Hz / 1800 RPM available on request |
| Operating Voltage | 380V / 400V / 415V AC (3-Phase, Star/Delta connection) | Wide-voltage design |
| Centrifugal Force | 23.7 kN ~ 24.5 kN (Nominal 5,900 lbs class, adjustable) | High G-force solids separation |
| Explosion-Proof Rating | Ex d IIB T4 Gb / Ex d IIC T4 Gb, Protection: IP66 | ATEX / IECEx / CNEx certified |
| Insulation & Thermal | Class H (180°C), Temperature rise within Class F (80K) | Suitable for extreme tropical environments |
| Cable Entry | NPT 3/4" (complete with certified heavy-duty cable gland) | North American / API standard thread |
| Net / Gross Weight | Net: 95 kg ~ 98 kg / Gross: approx. 110 kg | Ductile iron housing & end covers |
Footprint & Mounting Dimensions
Axial Centerline (Shaft Direction)
<────────────── 155 mm ──────────────>
┌────────────────────────────────────────────────┐
│ ○ ○ │ ▲
│ (M20 Hole) (M20 Hole) │ │
│ │ │
│ Motor Frame Body │ 225 mm (Width Direction)
│ │ │
│ ○ ○ │ │
│ (M20 Hole) (M20 Hole) │ ▼
└────────────────────────────────────────────────┘
<────────────── 155 mm ──────────────>

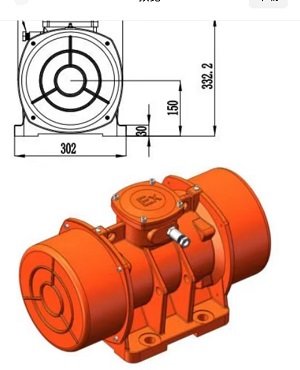

Overall Dimensions (L × W × H): approx. 572 mm × 270 mm × 312 mm
Export Packaging: Shipped in a fully enclosed, fumigation-free plywood crate with internal moisture-proof barrier wrap and anti-vibration timber saddles.
Ordering & Pre-Order Verification Guide
- Grid Frequency & Voltage: Confirm site requirements (380V~415V / 50 Hz or 440V~480V / 60 Hz);
- Dimension Verification: If your shaker screen basket has undergone non-OEM modification, provide a photo of the existing motor nameplate or center-to-center hole measurements. Official 2D outline drawings and technical submittals are provided within 2 business hours.
