High-Performance Polyurethane-Lined Slurry Separation Chamber Replacement for Bauer P/N 234939
Engineering Deconstruction & Slurry Erosion Protection | 100% Direct Bolt-On for Bauer MAT BE Desanding Plants
Disclaimer: All original equipment manufacturer names, symbols, brand trademarks, equipment models, and part numbers (including Bauer, MAT, BE 170, BE 250, BE 400, BC 32, BC 35, P/N 234939, and PN 234939) are referenced strictly for identification, dimensional cross-reference, and equipment compatibility. Our parts are independent, high-grade aftermarket replacement wear components and are neither manufactured nor endorsed by the OEM.
Engineering Deconstruction & Slurry Erosion Protection
During large-diameter rock socketing, deep diaphragm wall hydro-milling with trench cutters, and high-density slurry desanding, solids control circuits experience extreme abrasive scouring. The cyclone feed chamber and slurry distribution manifold spool (OEM Part Number: 234939 / P/N 234939 / MPN 234939) endure violent internal turbulence as high-velocity fluid transitions from circular headers into rectangular feed boxes. When standard carbon steel pipes or thin-film elastomer linings erode, localized washout occurs at the branch neck, causing pressurized slurry leaks, casing blowouts, and sudden plant shutdown.
Dealing with traditional OEM distributor networks for specialized fabricated components often means facing 10-to-14-week lead times and heavy retail markups.

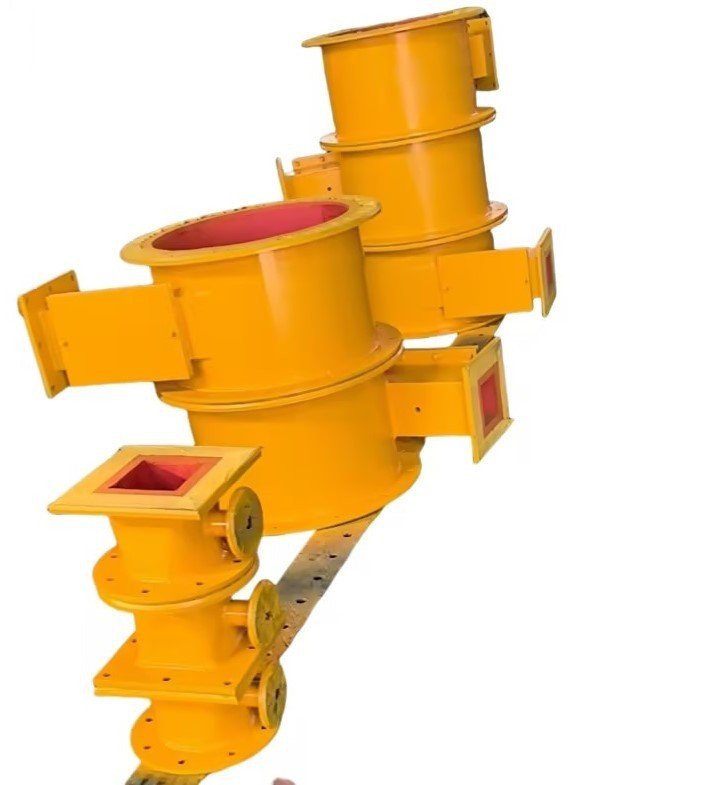

Our Heavy-Duty Cast Polyurethane (CPU) Lined Slurry Separation Chamber (Cross-Reference Part Number: 234939 / PN 234939-EQ) incorporates a 12 mm hot-cast Shore 90A polyurethane internal barrier, integral full-face flanged sealing, and 100% bolt-on interchangeability with Bauer MAT desanding plants at a 35–45% direct factory savings.
Technical Specifications & OEM Cross-Reference
| Engineering Metric | OEM Specification | Aftermarket Replacement Standard | Technical Compliance & Tolerance |
|---|---|---|---|
| OEM Cross-Reference P/N | 234939 / PN 234939 | PN-234939-EQ | 100% Direct Bolt-On Match |
| Host Plant Compatibility | Bauer MAT BE Series (BE 170 / BE 250 / BE 400) | Standard Desander Feed Chambers & Slurry Chutes | Direct Drop-in Fit |
| Outer Casing Material | Standard Heavy-Wall Structural Steel | ASTM A106 Gr.B / Q355B Seamless Welded Tube | Shell Thickness: 12.0 mm ± 0.5 mm |
| Internal Lining Material | Industrial Wear Elastomer | High-Tear Hot-Cast Polyurethane (CPU) | Durometer: Shore 88A–92A |
| Lining Layer Thickness | Standard Protective Coating | 10.0 mm - 14.0 mm Unified Seamless Casting | CNC Measured Uniformity |
| Working Pressure Rating | 0.6 MPa - 1.0 MPa (87 - 145 psi) | 1.0 MPa Continuous (1.6 MPa Surge Proof) | Hydrostatic Shell Test Passed |
| Flange End Connections | Metric / DIN Round + Rectangular Branch | DIN EN 1092-1 / Custom Precision Rectangular | Bolt PCD Tolerance: ± 0.2 mm |
| Flange Sealing Face | External Rubber Gasket Required | Integrated CPU Lining Over-Molded Face | Gasket-Free Self-Sealing Interface |
| Slurry Density Tolerance | Standard Bentonite Suspensions | Up to 1.60 g/cm³ High Sand Content Mud | Resists Quartz Sand Gouging |
| External Protective Coat | Industrial Primer | Heavy-Duty Epoxy Zinc-Rich + Polyurethane Topcoat | Dry Film Thickness ≥ 200 μm |
Manufacturing Standards & Quality Control
- Shot-Blast Chemical Vulcanization: The inner steel bore is mechanically blasted to ISO 8501-1 Sa 2.5 profile and primed with heat-activated bonding agents. The polyurethane matrix achieves an interfacial peel strength ≥ 15 kN/m, preventing liner blistering or collapse under high-velocity slurry vacuum conditions.
- Integral Flange Over-Molding: The red CPU liner wraps completely over both the circular and rectangular flange sealing faces. This design eliminates traditional sheet gaskets and protects flange faces against interfacial slurry cutting.
- Ultrasonic Thickness & Hydrostatic Testing: Every production unit undergoes ultrasonic wall thickness mapping and 1.6 MPa hydrostatic hold pressure testing for 30 minutes to verify zero weld porosity or fluid bypass.
Maintenance & Refurbishment Installation Guidelines
- Mating Flange Inspection: Clean mating desander tank flanges thoroughly, removing dried bentonite crust, scale, and rust pits before lowering the new spool (P/N 234939) into position.
- Gasket Elimination & Torque Sequence: Do not insert additional sheet gaskets. Tighten flange bolts in a cross-diagonal star pattern in three progressive torque increments (30% - 70% - 100%) to compress the integral polyurethane face uniformly and avoid point shearing.
- Preventive Wear Profiling: Inspect the internal rectangular branch transition with an ultrasonic gauge every 1,500 operating hours. When residual polyurethane lining thickness drops below 3.0 mm, schedule planned spool replacement to prevent casing blowout.
Frequently Asked Questions
Q: Can this aftermarket chamber replace Bauer P/N 234939 without welding modifications on site?
A: Yes. The bolt hole pitch circle diameter (PCD), overall spool height, and rectangular outlet flange dimensions match OEM Bauer P/N 234939 specifications for direct bolt-on installation.
Q: Does the polyurethane lining withstand high-pH polymer additives and saline ground mud?
A: Yes. The cast polyurethane elastomer is chemically inert to brine, bentonite, and polymer additives across a wide operating range (pH 3–12) and temperatures from -20°C to +80°C.
Q: What material test certificates accompany each shipment?
A: Every unit ships with an EN 10204 3.1 Material Test Certificate, steel shell ultrasonic weld inspection logs, polyurethane Shore A durometer test reports, and factory hydrostatic pressure sign-offs.
