High-Performance Polyurethane Guide Wear Pad for Bauer P/N 259834
Heavy-Duty Cast Polyurethane (CPU) Shore 95A Slide Pad & Mast Guide Strip Compatible with Bauer BG Series Rotary Carriages | Direct Replacement
Disclaimer: All manufacturer names, symbols, part numbers (including Bauer, BG 20H, BG 24H, BG 28, BG 36, P/N 259834, and PN 259834), and descriptions are referenced strictly for cross-reference, technical identification, and mechanical compatibility purposes. Our parts are independent, high-grade aftermarket replacement wear components and are neither manufactured nor endorsed by the OEM.
Mechanical Engineering & Mast Rail Protection for BG Rotary Carriages
During deep foundation piling, rock socketing, and high-torque rotary drilling, the rotary drive carriage transfers massive alternating crowd and torque loads directly onto the mast guide channels. When the carriage wear pads (OEM Part Number: 259834 / P/N 259834 / MPN 259834) suffer abrasive wear or edge cracking, excessive clearance forms along the sliding tracks. This dynamic play leads to severe carriage chatter, uneven Kelly bar alignment, and direct steel-on-steel rail gouging.
Replacing damaged mast tracks incurs substantial structural repair bills and extended Non-Productive Time (NPT). Relying on conventional OEM dealer networks often involves 8-to-12-week supply chain delays and steep list-price markups.
Our precision-molded Cast Polyurethane Guide Wear Pad (Cross-Reference Part Number: 259834 / PN 259834-EQ) offers high shock absorption, low sliding friction, and 100% dimensional interchangeability with original Bauer BG rotary carriages at a 35–45% direct procurement savings. Explore our complete collection of foundation drilling rig replacement wear parts.
Technical Specifications & OEM Cross-Reference
| Engineering Parameter | OEM Specification | Aftermarket Replacement Standard | Compliance & Tolerance |
|---|---|---|---|
| OEM Cross-Reference P/N | 259834 / PN 259834 | PN-259834-EQ | 100% Direct Fit |
| Applicable Rigs | Bauer BG Series (BG 15H – BG 40) | Standard Rotary Carriage Pockets | Drop-in Replacement |

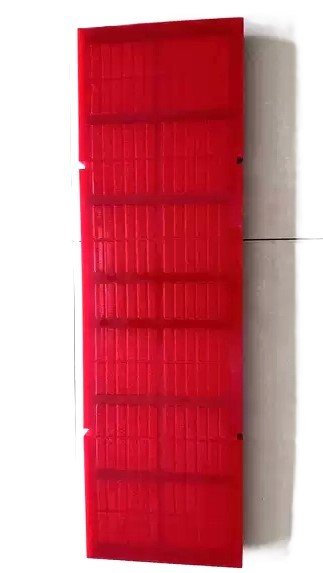

| Component Category | Carriage Guide Strip / Wear Pad | Heavy-Duty Ribbed Sliding Pad | Precision Cast & Milled |
| Elastomer Base Material | Industrial Polyurethane | High-Tear Cast Polyurethane (CPU) | Hardness: Shore 90A–95A |
| Surface Profile Design | Multi-Segment Ribbed Grooves | Anti-Friction Grease/Slurry Channels | Friction: μ ≤ 0.15 |
| Mounting & Retention | Lateral U-Notch Retaining Slots | Precision CNC-Cut Locating Notches | Zero Axial Migration |
| Compressive Strength | ≥ 30 MPa | ≥ 35 MPa (ISO 604) | Resists Edge Crushing |
| Operating Temperature | -20°C to +80°C | -30°C to +90°C Stable Range | Slurry & Oil Resistant |
| Elongation at Break | ≥ 400% | ≥ 450% (DIN 53504) | High Tear Toughness |
Manufacturing Standards & Quality Control
- Vacuum Degassed Cast Polyurethane (CPU): Formulated from premium prepolymers and cured under high vacuum, eliminating internal micro-bubbles and ensuring uniform density throughout the block.
- Anti-Friction Ribbed Matrix: Symmetrical surface grooves reduce boundary surface contact, allowing grease retention while wiping away abrasive quartz sand particles.
- 100% Go/No-Go Gauge Verification: Every pad is checked on precision inspection fixtures to ensure exact U-notch slot dimensions (±0.1 mm), ensuring positive locking into carriage retainers.
Maintenance & Refurbishment Installation Guidelines
- Pocket Debris Removal: Thoroughly scrape and degrease the rotary carriage retention channels to remove hardened bentonite and metal flakes before inserting the new pad (P/N 259834).
- U-Notch Alignment: Slide the wear pad into the pocket until the lateral U-notches lock securely over the carriage retaining lugs.
- Carriage Clearance Verification: Once all pads are installed, check the total lateral play between the carriage and mast guide rails with a feeler gauge. Maintain clearance within the nominal range of 1.0 mm – 1.8 mm. Replace the pad set when total wear exceeds 3.0 mm.
Frequently Asked Questions (FAQ)
Q: Can this polyurethane wear pad directly replace Bauer P/N 259834 without machining the mounting slots?
A: Yes. The outer dimensions, thickness, and lateral retaining notch profiles match original Bauer P/N 259834 specifications, allowing direct on-site installation.
Q: How does CPU 95A polyurethane perform in high-sand bentonite drilling mud?
A: High-tear CPU 95A provides superior elasticity and tear strength compared to standard nylon, preventing abrasive sand grains from cutting the pad surface and protecting steel mast rails from galling.
Q: What quality control documentation accompanies each production batch?
A: Each shipment includes an EN 10204 3.1 Material Test Certificate, Shore A hardness inspection sheets, tensile tear test reports, and dimensional verification sheets.
