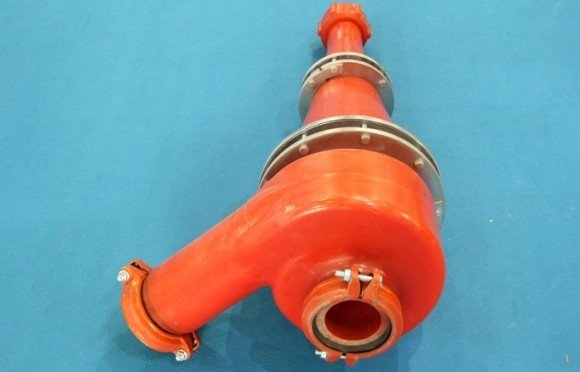

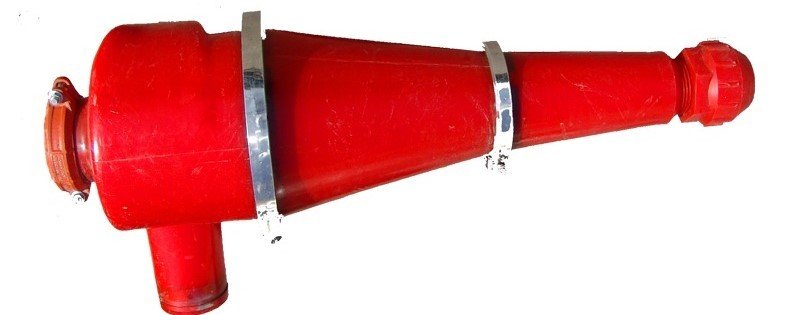

10-Inch Polyurethane Desander Hydrocyclone Cone (P/N 10580-00 Equivalent)
High-Durability Cast Polyurethane (CPU) Aftermarket Replacement for 10" Desander Systems & Mud Cleaner Manifolds | API 13C Compliant
Disclaimer: All product part numbers (e.g., P/N 10580-00, 1058000), equipment designations, and technical descriptions are used solely for cross-reference, identification, and mechanical compatibility purposes. Our products are independent, high-grade aftermarket replacement components conforming to API Spec 13C standards and are manufactured independently.
High-Performance Polyurethane Desander Cone Replacement
In high-solid drilling formations and heavy mud circulation, second-stage solids control efficiency is critical. When 10-inch desander hydrocyclones suffer internal grooving, inlet vortex erosion, or apex orifice enlargement, the discharge transitions from an optimal fine spray into an uncontrolled "rope discharge." This results in the loss of expensive drilling fluid and barite while letting abrasive sands bypass into downstream equipment.
Sourcing replacement cones through prolonged traditional supply channels frequently entails 10-to-16-week lead times and severe cost overheads.
Our API 13C compliant solid cast polyurethane 10-inch desander cone, engineered as a direct replacement cross-referencing Part Number: 10580-00 / P/N 1058000, delivers high tear resistance, precise D50 cut-point retention, and immediate dispatch at a competitive cost reduction. Explore our complete range of oilfield desander equipment and replacement cones.
Technical Specifications & Cross-Reference
| Engineering Parameter | Industry Standard Specification | Aftermarket Replacement Standard | Compliance & Tolerance |
|---|---|---|---|
| Cross-Reference P/N | 10580-00 / 1058000 | PN-10580-00-EQ | 100% Direct Fit |
| Compatible Equipment | Standard 10" Desander Units | 10" Mud Cleaner Manifolds | Direct Drop-in Replacement |
| Hydrocyclone Nominal Size | 10 Inch (250 mm) | 10 Inch (250 mm) Single Body | Standard Victaulic Grooves |
| Body Elastomer Grade | Cast Polyurethane | Solid Cast Polyurethane (CPU) Shore 90A–93A | High Tensile & Tear Strength |
| Operating Feed Pressure | 35 – 50 PSI (0.24 – 0.35 MPa) | 30 – 55 PSI Optimal Band | Head: 25 – 35 m |
| Individual Cone Flow Rate | Approx. 500 GPM (114 m³/h) | 500 GPM (114–120 m³/h) | API Spec 13C Separation Cut |
| Solid Separation Cut (D50) | 40 – 100 Microns | 40 – 74 Microns | Sharp Particle Classification |
| Feed / Overflow Connection | Grooved Victaulic Coupling | Precision Molded Grooves | Leak-Proof Clamp Seal |
Manufacturing Standards & Quality Control
- Precision CPU Centrifugal Casting: Produced using high-grade prepolymer polyurethane elastomers with automated degasification to eliminate internal air entrapment and micro-voids.
- Superior Abrasion Resistance: Delivers exceptional Akron abrasion loss metrics, yielding up to 3–5 times the wear life of conventional rubber liners in abrasive water-based mud (WBM) and oil-based mud (OBM).
- Dimensional Integrity: CNC-machined mold cavities ensure strict tolerance on the internal involute feed angle, ensuring stable vortex flow.
Maintenance & Refurbishment Installation Guidelines
- Feed Pressure Calibration: Ensure the centrifugal charge pump delivers a steady 35–45 PSI at the inlet manifold. Insufficient feed pressure impairs centrifugal separation, while excessive pressure accelerates body erosion.
- Visual Spray Verification: Inspect the apex discharge pattern during circulation. Maintain a wide flared cone spray. If rope discharge occurs, replace the lower apex orifice immediately.
- Clamp Alignment: When installing onto the mud cleaner header, inspect the groove gaskets and tighten the Victaulic clamps evenly to avoid localized stress on the polyurethane neck.
Frequently Asked Questions (FAQ)
Q: Can this polyurethane cone directly replace P/N 10580-00 without manifold modification?
A: Yes. The outer dimensions, feed inlet profile, overflow elbow, and Victaulic groove spacing are engineered for 100% drop-in interchangeability with standard industry 10" desander manifolds.
Q: How does this cast polyurethane material perform with Oil-Based Mud (OBM) and Synthetic Fluids?
A: Our Shore 90A polyurethane formulation is chemically stabilized against hydrocarbon swelling, aromatics, and drilling fluid additives up to operating temperatures of 85°C.
Q: What certificates and testing documentation accompany bulk shipments?
A: Each shipment includes a Certificate of Conformance (COC), Shore Hardness test sheets, dimensional inspection reports, and API Spec 13C material compliance documentation.
