Substitute Shale Shaker Screens for SWACO MD-2/MD-3 and M-I Shakers - Upgrade Your Drilling Operations

Note: TOP only produces the replacement shaker screen but not original form SWACO .

---

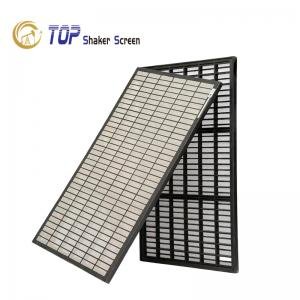

SWACO Shaker Screen Replacement are constructed with two or three layers of 304 or 316 stainless steel wire mesh cloth, and then combined together with a steel backing plate. This type of shaker screen is produced for the replacement screen for SWACO  MD-2/MD-3  M-I(bottom basket) shale shaker screen.

---

---

AHS-MG/1 shaker screen have steel and composite frame types for your choice. Both of them are ide ally as the replacement shaker screen of SWACO MONGOOSE/MEERKAT PMD shale shakers.

---

Mesh Material: stainless steel 304/316/316 L.

Frame Material: PT.

Screen Type: XR.

API RP 13C Designation: API 20 – API 325.

Package: packed in paper carton, shipped by wooden case.

---

TP-MD-2/3 shaker screen is a kind of composite frame shaker screen specified for both M-I SWACO MD-2 dual flat-deck shaker and MD-3 triple-decker shale shaker. M-I SWACO MD-2 shale shaker is suitable for both onshore and offshore applications and MD-3 triple-decker shale shaker mainly targets primarily high-end offshore operations. Reinforced PT frame reduces the friction between the screen and deck plate. Featured by higher throughput, extended screen life, fewer replacements, our screens aim to lower the cost of mud treatment.

---

Adaptable Shale Shaker screen Model

TP-MD-2/3 shaker screen  are used as the substitute screen for:

M-I SWACO MD-2 dual flat-deck shale shaker.

M-I SWACO MD-3 triple-decker shale shaker.

---

Competitive Advantage

• ·Composite screen technology increases effective open area.
• ·Improves process capacity and maximizes screen life.
• ·Pre-tensioned screens with light weight for easier handling.
• ·Manufactured according to the API RP 13C (ISO 13501).
• ·Scientific & reasonable cost control system for competitive price.
• ·Adequate inventory in the shortest time to meet customers' demand.
• ·Warranty Period: 1 year.
• ·Working Life: 400-450 hours.
• Categories:Shaker Screen.
• AHS-MD shaker screens have steel and composite frame types for your choice.
• Both of them are ideally as the replacement shaker screen of SWACO MONGOOSE/MEERKAT PMD shale shaker screen.

---

API RP 13C(ISO 13501)
>780.0 to 925.0	API 20	>165.0 to 196.0	API 80
>655.0 to 780.0	API 25	>137.5 to 165.0	API 100
>550.0 to 655.0	API 30	>116.5 to 137.5	API 120
>462.5 to 550.0	API 35	> 98.0 to 116.5	API 140
>390.0 to 462.5	API 40	> 82.5 to 98.0	API 170
>327.5 to 390.0	API 45	> 69.0 to 82.5	API 200
>275.0 to 327.5	API 50	> 58.0 to 69.0	API 230
>231.0 to 275.0	API 60	> 49.0 to 58.0	API 270
>196.0 to 231.0	API 70	> 41.5 to 49.0	API 325

---

Adaptable Shale Shaker Model

· M-I SWACO MD-2 dual flat-deck shale shaker.

· M-I SWACO MD-3 triple-decker shale shaker.

---

Remarks:

[1] Derrick and FLC and Pyramid are trade marks of Derrick Corporation

[2] Brandt and NOV are trade marks of National Oilwell Varco

[3] MI-Swaco and Mongoose are trade marks of Schlumberge
