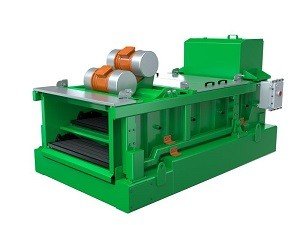

The TSS-TUP Linear Motion Shale Shaker is a heavy-duty, high-performance solids control equipment engineered specifically for oilfield drilling mud systems. It functions as the primary phase of solid-liquid separation, effectively removing unwanted drilled cuttings from drilling fluids before the mud is recirculated back into the wellbore.
Driven by dual synchronized vibration motors, optimized linear motion, and high-conductance replacement shaker screens, our shakers maximize fluid recovery, minimize operational expenses, and protect downstream mud processing equipment such as degassers, desanders, and centrifuges.
Our shale shakers are widely deployed across land drilling rigs, offshore drilling platforms, workover units, directional drilling spreads, and HDD (Horizontal Directional Drilling) mud recycling systems.
Linear vibration motion delivers stable, high-G solids removal, driving mud efficiently through fine-mesh replacement screens.
Equipped with heavy-duty, synchronized vibratory motors to ensure balanced G-force distribution and reliable continuous operation.
The shaker basket and base are built with high-tensile structural steel to absorb extreme dynamic loads in harsh oilfield environments.
Quick-change screen tensioning mechanisms allow rapid panel replacement, minimizing non-productive time (NPT) on location.
The TSS-TUP Linear Motion Shale Shaker is expertly designed for:
| Parameter Item | Specification Details |
|---|---|
| Equipment Type | Linear Motion Shale Shaker |
| Primary Application | Oilfield Drilling Fluid Solids Control |
| Vibration Motion | Linear Vibration |
| Vibration Source | Synchronized Dual Vibratory Motors |
| Screen Panel Type | Hook Strip / Flat Panel / Composite Screens |
| Processing Medium | Water-Based Mud (WBM), Oil-Based Mud (OBM), Synthetic-Based Mud (SBM) |
| Structure Material | Heavy-Duty Structural Steel Frame |
| System Integration | Drilling Rig Mud System Integration |

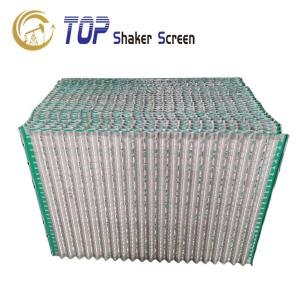

TSS-TUP provides a comprehensive portfolio of high-durability replacement consumables and spare parts to ensure continuous rig uptime:
| API Mesh Range | Recommended Application & Solid Separation Objective |
|---|---|
| API 20 – API 40 | Coarse Solids Removal / Scalping Phase (Large Rock Cuttings) |
| API 50 – API 80 | General Drilling Operations / Primary Separation Stage |
| API 100 – API 170 | Fine Solids Separation / Secondary Mud Processing |
| API 200 – API 325 | High-Precision Separation / Barite Recovery Stage |
*Customized mesh sizes and frame configurations are available upon request to match specific rig requirements.
TSS-TUP engineering sales team provides 24/7 technical support, custom sizing consultations, and fast factory-direct quotations for global drilling contractors.
Contact our engineers for exact part numbers or API RP 13C mesh size matching.
