TP-FSI 5000 Series Replacement Shaker Screen (API RP 13C Compliant)

Product Description:
Engineering Notice: TSS-TUP manufactures high-efficiency aftermarket replacement shaker screens engineered for full compatibility with FSI 5000 Series shale shakers and mud cleaners.

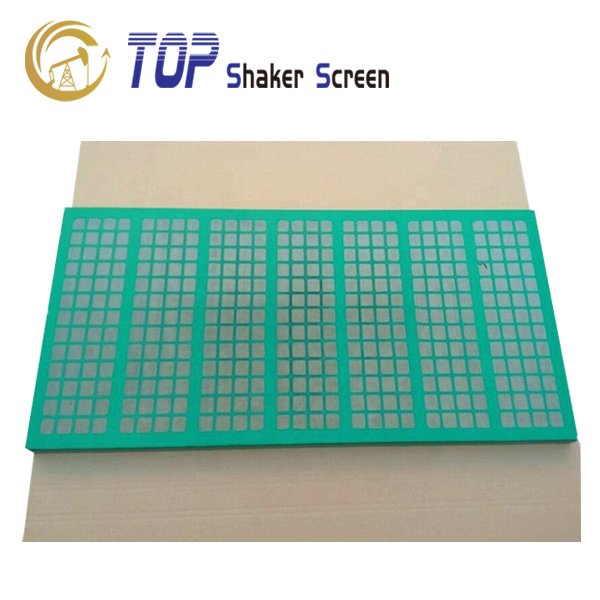

TP-FSI 5000 Series Replacement Shale Shaker Screen

Product Overview & Operating Integrity

TSS-TUP TP-FSI 5000 Series Flat Replacement Shaker Screens are engineered specifically for Fluid Systems, Inc. (FSI) linear motion shakers and mud cleaning units. Constructed with multi-layered 304 / 316 / 316L stainless steel wire mesh cloth bonded to a high-strength Q235 structural steel frame, these screens provide rigid support under intense high-G vibration forces.

Designed for seamless integration with wedge-fastening clamping systems, our screens enable quick visual inspection and rapid panel changeouts to minimize rig downtime. Advanced rubber strip sealing bonding technology eliminates slurry bypass and ensures perimeter leak-free operation.

Technical Parameters & Manufacturing Specifications

Mesh Material: Stainless Steel 304 / 316 / 316L
Frame Backing: Heavy-Duty Q235 Steel Frame
Screen Cloth Type: XL, XR High-Flow Mesh
Compliance & Life: API RP 13C | 400–450 Hours

API RP 13C Designation & Performance Specifications

API Mesh Designation D100 Separation Range (μm) Conductance (kD/mm) Mesh Type Layer Construction
API 40 390.0 – 467.5 3.25 XR / XL 2 / 3 Layers
API 60 230.0 – 275.0 2.15 XR / XL 2 / 3 Layers
API 80 165.0 – 195.0 1.60 XR / XL 2 / 3 Layers
API 100 137.5 – 165.0 1.25 XR / XL 2 / 3 Layers
API 140 98.0 – 116.5 0.85 XR / XL 2 / 3 Layers
API 170 82.5 – 98.0 0.68 XR / XL 2 / 3 Layers
API 200 69.0 – 81.5 0.48 XR / XL 2 / 3 Layers
API 325 41.5 – 49.0 0.28 XR / XL 2 / 3 Layers

Adaptable Equipment & Deck Compatibility

Direct drop-in replacement flat screen for Fluid Systems, Inc. (FSI) equipment:

  • FSI Series 5000 BSBS Linear Power Side-By-Side Shakers
  • FSI Series 5000B DHC Double Header Mud Cleaners
  • FSI Series 5000B CD VGS™ Linear Cutting Drying Units

Competitive Advantages & Engineering Value

  • High-Tensile Wire Mesh Cloth: Multi-layer SS304/316/316L cloth provides exceptional wear life and corrosion resistance in abrasive drilling fluids.
  • Wedge-Lock Fastening Integrity: Rigid steel frame design ensures fast and secure wedging without deck distortion or loose panels.
  • Enhanced Rubber Strip Seal: Premium bonded seal strips prevent mud leakage and eliminate slurry bypass around the screen perimeter.
  • Certified API RP 13C Compliance: Guaranteed D100 separation cut-points to maximize fine solids separation and preserve drilling mud.

Need Custom Mesh Sizing, API Recommendations, or Bulk Pricing?

TSS-TUP technical engineers provide 24/7 technical support, deck compatibility checks, and fast factory-direct quotations for global drilling contractors.

Legal & Technical Disclaimer:
TSS-TUP manufactures independent replacement screens and drilling spare parts. FSI and Fluid Systems Inc. are referenced strictly for engineering interchangeability and deck compatibility purposes. TSS-TUP has no direct affiliation with the original equipment manufacturer.
OEM Quality Standard
API RP 13C Screen Designation
Heavy-Duty Metal Mesh & Frame
Direct Replacement for Global Rigs
Field-Proven in Middle East Rigs
