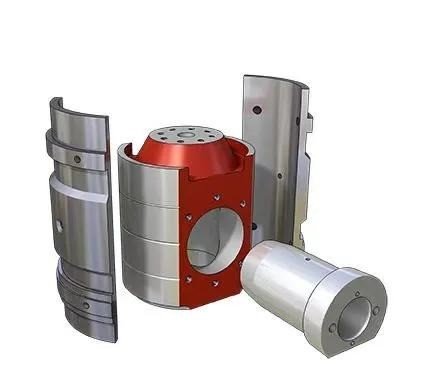

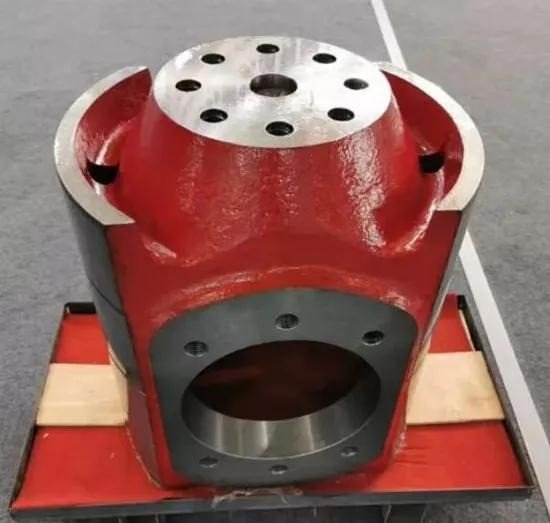

National 12-P-160 Mud Pump Replacement Crosshead Assembly (P/N 1293026)

Premium Replacement Crosshead for National / NOV 12-P-160 Mud Pump (P/N 1293026)

The 12-P-160 1,600 HP triplex mud pump is the backbone of deep-drilling operations worldwide. In severe drilling regimes, the crosshead assembly converts connecting rod angularity into linear motion under immense cyclic thrust. When crosshead slide surfaces experience scoring from contaminated lube oil, or the crosshead pin bore suffers out-of-round deformation, pump balance is compromised.

Our drop-in aftermarket crosshead engineered for the National / NOV 12-P-160 Triplex Mud Pump (Part Number: 1293026 / 1293026-001) offers drilling rig operators and rebuild facilities immediate delivery, API-certified metallurgical strength, and significant cost savings.

Technical Specifications & OEM Cross-Reference

Manufacturing Standards & Rigorous Quality Control

Our manufacturing processes meet heavy industrial duty cycles through strict quality safeguards:

• Precision CNC Machining: Machined on 5-axis horizontal boring and milling centers in a temperature-controlled shop to eliminate thermal drift on the critical crosshead pin bore and extension rod mounting faces.
• Dual-Plane Dynamic Balancing: Crosshead castings are dynamically balanced to mitigate reciprocating vibration harmonics across 1,600 HP continuous duty cycles.
• 100% Surface & Subsurface Inspection: Every unit undergoes hydrostatic pressure checks for hydraulic internal passages, along with 100% Wet Fluorescent Magnetic Particle Testing.

Maintenance & Refurbishment Installation Guidelines

When conducting a complete power end rebuild on a 12-P-160:

• Pin-to-Bore Fit Verification: Confirm that the interference/clearance fit between the crosshead pin (P/N 1293028) and the crosshead bore complies with OEM technical manual limits.
• Extension Rod Alignment: Torque the extension rod / intermediate rod to the front face of the crosshead using calibrated torque wrenches. Verify that radial runout meets strict engineering tolerances during complete stroke cycling.
• Guide Rail Shimming: Inspect upper and lower frame guide plates for wear steps. Re-shim or replace worn guide liners to maintain consistent alignment.

Frequently Asked Questions (FAQ)

Q: Can this crosshead (P/N 1293026) directly replace OEM parts without changing the guide shoes or pins?

A: Yes. This aftermarket crosshead is a direct drop-in replacement built to exact OEM geometry, accommodating OEM crosshead pins, bronze guide shoes, and crosshead extension rods.

Q: What is the typical lead time for international emergency rig-down orders?

A: Standard 12-P-160 crossheads are kept in strategic stock and can be crated and dispatched via air freight within 48 hours to minimize rig NPT.

Q: How do you verify material integrity against crack propagation?

A: Each casting is produced under strict metallurgical control with verified nodularity, Charpy V-Notch impact testing, and complete Ultrasonic Testing (UT) to ASTM A609 level 2.
